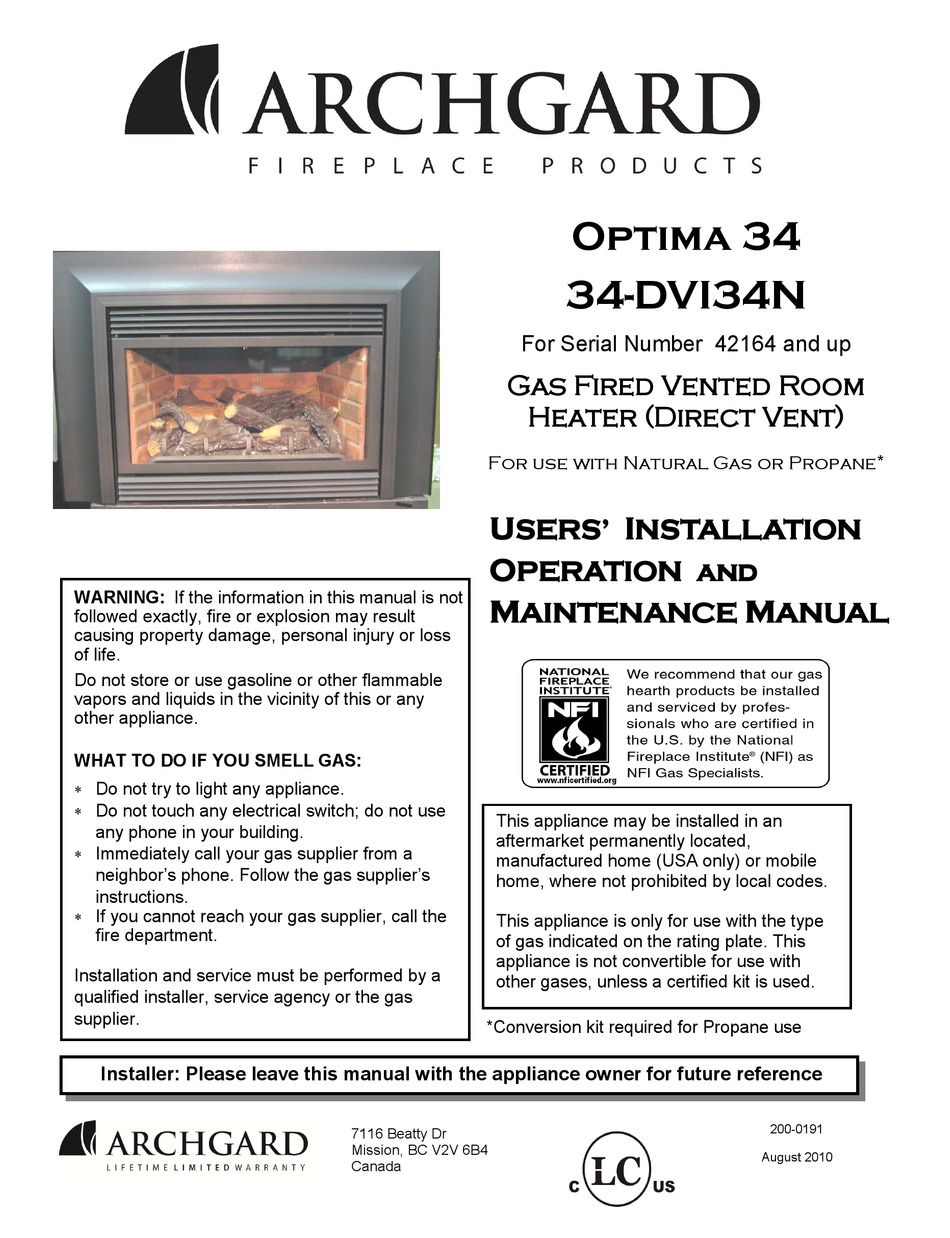

WARNING: If the information in this manual is not
followed exactly, fire or explosion may result
causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Installer: Please leave this manual with the appliance owner for future reference
For Serial Number 42164 and up
Gas Fired Vented Room
For use with Natural Gas or Propane*
U
SERS'
O
PERATION and
M
AINTENANCE
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
*Conversion kit required for Propane use
7116 Beatty Dr
Mission, BC V2V 6B4
Canada

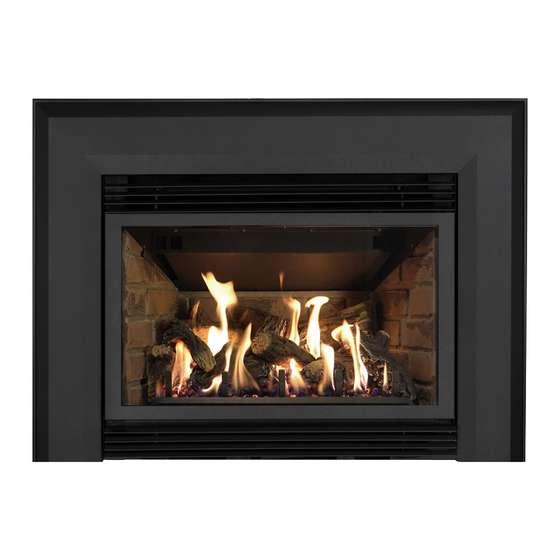

Optima 34
34-DVI34N
Heater (Direct Vent)
I
NSTALLATION
M
ANUAL
200-0191
August 2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Archgard Optima 34 34-DVI34N
Summary of Contents for Archgard Optima 34 34-DVI34N
- Page 1 Optima 34 34-DVI34N For Serial Number 42164 and up Gas Fired Vented Room Heater (Direct Vent) For use with Natural Gas or Propane* SERS’ NSTALLATION PERATION and WARNING: If the information in this manual is not AINTENANCE ANUAL followed exactly, fire or explosion may result causing property damage, personal injury or loss of life.
- Page 2 STATE OF MASSACHUSETTS REQUIREMENTS 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:...
- Page 3 Optional Accessories. Check with your Authorized Archgard Dealer for a full complement of decorative accessories to suit your home’s décor and your tastes. Some of the accessories available are: 24K Gold Overlay (for the flat window), a variety of...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Appliance Dimensions and Minimum Requirements for Fireplace Dimensions Clearance to Combustibles Gas Connections Appliance Description, Leveling the Appliance and Electrical Requirements Venting Instructions 11 - 12 Surround Installation and Rocker Switch Wiring Optional Wall Switch, Thermostat or Remote Control. -
Page 5: Caution And Safety Instructions
Optima 34 CAUTION FOR YOUR SAFETY - Do not install or operate your Archgard Optima 34 Direct Vent Gas Insert without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous. -
Page 6: Appliance Certification, Installation Codes And Specifications
- ANSI Z21.88b-2003/CSA 2.33b-2003 Vented Gas Fireplace Heaters - CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance. INSTALLATION CODES This appliance must be installed by a qualified gas appliance installer. The installation must conform with the local codes or, in the absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54 in the US, or Installation Code CAN/CGA-B149.1 in... -
Page 7: Appliance Dimensions And Minimum Requirements For Fireplace Dimensions
Optima 34 APPLIANCE DIMENSIONS DIMENSIONS 25-5/8” (651 mm) 16” (406 mm) 14” (356 mm) 14-1/8” (359 mm) DSK-32 or ESK-32 (STANDARD SUR- ROUND) 41-1/2” (1054 mm) 27-3/4” (705 mm) LSK-32 (LARGE FLAT SURROUND) 47-1/2” (1207 mm) 30-3/4” (7457 mm) 19-7/8” (505 mm) 3-3/4”... -
Page 8: Clearance To Combustibles
Optima 34 CLEARANCES TO COMBUSTIBLES WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury or loss of life. CAUTION: This appliance is designed for use in any masonry or factory-built, wood-burning fireplace. -
Page 9: Gas Connections
Optima 34 GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. Adequate clearance for proper installation and checking of the gas connections must be provided. -
Page 10: Appliance Description, Leveling The Appliance And Electrical Requirements
Optima 34 APPLIANCE DESCRIPTION TOP VIEW On/Off Rocker Gas Inlet side Switch and power cord outlet Fresh Air Intake Exhaust FRONT VIEW Top “grill” Surround louver “Faceplate” Ceramic Glass with Ceramic Brick standard “panel” liner black arch door frame Bottom “grill”... -
Page 11: Venting Instructions
Approved vent terminals are: Archgard terminal. Part # 999-INS-TK Simpsons Dura-Vent terminal. Part # 980, 923GK (adaptor with flashing) or 991 (high wind cap) NO OTHER VENTING SYSTEM OR COMPONENTS MAY BE USED. If you are using “Dura-Vent” verti- cal termination cap, follow the instructions provided with the “Dura-Vent”... - Page 12 Optima 34 VENTING INSTRUCTIONS 999-INS-TK Instructions for use with Archgard vertical termination cap. Part # 999-INS-TK Install the termination cap being sure to provided sufficient space (around and on top) so as not to impede the flow of air, both into and out of the cap. This cap is only to be used for non com- bustible installations.
-
Page 13: Surround Installation And Rocker Switch Wiring
Optima 34 SURROUND INSTALLATION Make sure the gas and electrical lines are properly connected to the appliance. Slide the unit into the fireplace and slide the excess flue liner material back onto the chimney. Before the ap- pliance is fully recessed into the fireplace, attach the surround onto the appliance. The return flange on the side of the surround fits on the inside of the mounting rails on the appliance. -
Page 14: Optional Wall Switch, Thermostat Or Remote Control. Suggested Wiring
Fig 1. This will allow the original on/off rocker switch to be used in case the device that is mounted to the wall becomes inoperable. Note: Archgard Industries Ltd. does not manufacture or sell any wall switch or wall thermostat, and will not extend warranty to them. -
Page 15: Brick And Log Placement
Optima 34 BRICK PLACEMENT The Archgard brick and reflective glass panels offer a variety of looks to customize your fire- place and are purchased seperatly. Care must be given when first installing the bricks, and if removed for servicing, as they can be damaged or broken if not handled properly. - Page 16 Optima 34 Right Brick Panel Placement as Shown...
- Page 17 Optima 34 Left Brick Panel Placement as Shown NOTE: Installing the panels in any other position other than shown will result in flame im- pingement causing sooting of the logs, brick liner and ceramic glass viewing area.
- Page 18 Optima 34 LOG PLACEMENT The Archgard pan burner bed and fiber logs are designed to give a realistic fire package, and cre- ated to look the same as the day they were originally installed. Care must be given when first in- stalling the logs, and if removed for servicing, as they can be damaged or broken if not handled properly.
- Page 19 Optima 34 LOG PLACEMENT... Continued Step 1. Locate Log with 7207 stamped on the bottom and place it as shown. LOG 7207 Step 2. Locate Log with 7201 stamped on the bottom and place it as shown. LOG 7201 IMPORTANT: Back of log #7201 must rest on top of log rests as shown...
- Page 20 Optima 34 LOG PLACEMENT... Continued Step 3. Locate Log with 7203 stamped on the bottom and place it as shown. LOG 7203 Step 4. Locate Log with 7202 stamped on the bottom and place it as shown. LOG 7202...
- Page 21 Optima 34 LOG PLACEMENT... Continued Step 5. Locate Log with 7204 stamped on the bottom and place it on the front pins as LOG 7204 Step 6. Locate Log with 6 stamped on the bottom and place it as shown. LOG 6...
- Page 22 Optima 34 Step 7. Locate Log with 5 stamped on the bottom and place it as shown. LOG 5 Step 8. Place black embers around logs as shown , do not cover the holes in the burner. Black embers...
-
Page 23: Final Installation Check And Initial Operation
Optima 34 FINAL INSTALLATION CHECK Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order. -
Page 24: First Fire And Lighting Instructions (Caution)
Optima 34 FIRST FIRE When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat from the appliance evaporating the oils and solvents used in fabricating the appliance. Close off the room to the rest of the house and open all windows. Keep the room well ventilated, as smoke alarm may sound. -
Page 25: Lighting Instructions On Rating Plate
Optima 34 LIGHTING INSTRUCTIONS ON RATING PLATE FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire of explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by a spark •... -
Page 26: Glass Door Removal / If Your Glass Should Break
REMOVED) DOOR LATCHES (SHOWN OPEN) IF YOUR GLASS BREAKS In the event your glass cracks or breaks, Archgard recommends that a new door assembly be ordered to replace the original door. Remove door as per the instructions above. ... -
Page 27: Troubleshooting Guide
Optima 34 TROUBLESHOOTING Please check to make sure the instructions are followed exactly before attempting troubleshooting of the appliance. WARNING: Troubleshooting and servicing of gas and electrical devices of the appliance should only be conducted by a qualified service technician. SYMPTOM ACTION Pilot will not light after... - Page 28 Optima 34 TROUBLESHOOTING Cont... SYMPTOM ACTION The main burner does not turn 3. Check to make sure the thermostat is set high enough to turn on the on with the pilot lit. Cont... appliance. 4. Check that the remote switch or the thermostat is turned on. 5.
-
Page 29: Maintenance And Cleaning The Appliance
Regularly: Frequent cleaning of the ceramic glass is required. Archgard recommends using a good quality “gas fireplace” glass cleaner that is available at any hearth retail location. DO NOT CLEAN WHILE HOT. -
Page 30: Servicing Under Warranty And Adjusting Primary Air
Optima 34 SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Archgard warranty at the back of the manual. Contact the authorized Archgard dealer where you purchased the appliance from and provide them with details of the problem, together with the initial installation information (from the back of this manual). -
Page 31: Adjusting Primary Air (Continued) And Changing Main Burner Orifice
This is required for expansion & contraction of the pan burner. THIS APPLIANCE IS EQUIPPED FOR NATURAL GAS. An additional CONVERSION kit is required to convert for Propane use. To order the CONVERSION kit, please contact your Authorized Archgard Dealer. -
Page 32: Checking Inlet/Outlet Gas Pressures, Adjusting Pilot And Convertible Pilot Orifice
7/16” (11 mm) wrench turn a 1/4 7/16” (11 mm) open then push the small metal tab across to WRENCH the other side of the body and retighten. Call (HERE) your local Authorized Archgard Dealer to purchase the correct fuel conversion kit for your gas appliance. -
Page 33: Replacing Convection Blower & Wiring Diagram
Optima 34 REPLACING CONVECTION BLOWER CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1. -
Page 34: Valve Tray Assembly And Parts List
Optima 34 VALVE TRAY ASSEMBLY Item # Item Description Unit 308-0043 Valve, ROBERTSHAW, Hi/Low Natural Gas 308-0005 Replacement Piezo Igniter, SIT controls (see page 28) 301-6007 7” Flex line assembly, flanged orifice 301-0068 Orifice (Main Burner Orifice) Drill to # 34 DMS (2.76 mm) for Natural Gas / Drill to #51 for LP (Propane) Gas 620-0004 Aluminum Pilot Box 314-0127 Gasket Ceramic Paper... -
Page 35: Fiber Logs & Pan Burner Assembly And Parts List
Optima 34 PARTS LIST - Logs and Pan Burner LOG 7201 LOG 7207 LOG 7202 LOG 7203 LOG 6 LOG 5 LOG 7204 Grate Item # Item Description Unit 310-634720-1 Log 7201 310-634720-2 Log 7202 310-634720-3 Log 7203 310-634720-4 Log 7204 310-634720-5 Log 7205 (there is only 5 on log) 310-634720-6 Log 7206 (there is only 6 on log) 310-634720-7 Log 7207... -
Page 36: Replacement Parts List - General Parts
Optima 34 REPLACEMENT PARTS LIST - ARCHGARD OPTIMA 34 Item # Item Description Unit 200-0191 Owner’s Manual 832-0005 Top Louver (grill) assembly (Metallic Black) 832-0004 Bottom Louver (grill) assembly (Metallic Black) 300-0030 Hinge Self-Closing Brass 800-0070 Air Shutter Assembly 314-0131... - Page 37 Optima 34 REPLACEMENT PARTS LIST FOR THE ARCHGARD OPTIMA 34 Item # Item Description Unit Optional Surround Trims 34-TKSB Black Trim for SKBAB & SKCAB surround 34-TKLB Black Trim for SKLB surround 34-TKSG Gold Trim for SKBAB & SKCAB surround...
-
Page 38: Warranty
Problem Description ❖ NOTE: Warranty may be void if work is carried out by an unqualified person (s). Only original Archgard parts may be used. Please consult your Archgard dealer or representative if in doubt about a replacement part (s). -
Page 39: Frequently Asked Questions
Q. My fan/blower makes a “whirring” or “humming” noise. A. Your Archgard gas appliance uses a powerful fan to push heated air into your room. It is not unusual to hear a “humming” noise when your fan is running. Note: the sound will change depending on the set- ting that your fan speed control is set at. -
Page 40: Notes
Optima 34 NOTES... -
Page 41: Warranty Registration Card
POSTAGE WARRANTY REGISTRATION RCHGARD NDUSTRIES 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED 34-DVI34N Model # : Serial #: Date Installed: yyyy Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &... - Page 43 Archgard Industries Ltd. 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
