INSTALLATION, OPERATION,
AND MAINTENANCE MANUAL

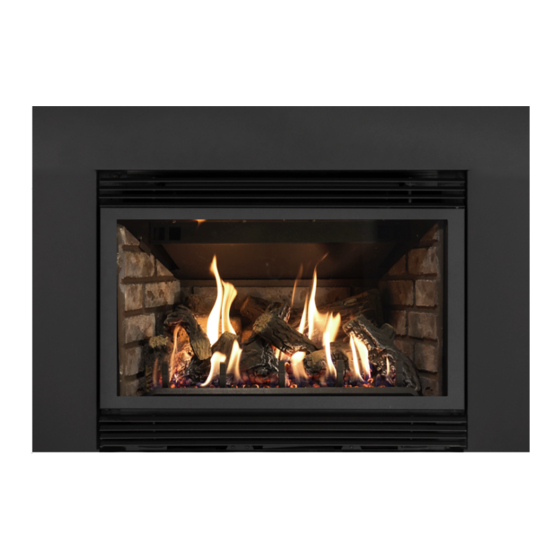

Model: 34-DVI34N-2
Direct Vent Fireplace Insert
Serial Numbers 44918 and higher
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only) or
mobile home where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases, unless a certified kit is used.
Gas Fireplace
Efficiency Rating
52.23%
Based on CSA P.4.1-15
Optima 34
200-0191-13
April 1, 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optima 34 and is the answer not in the manual?

Questions and answers

Related Manuals for Archgard Optima 34

Summary of Contents for Archgard Optima 34

  • Page 1 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL Optima 34 Model: 34-DVI34N-2 Direct Vent Fireplace Insert Serial Numbers 44918 and higher This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home where not prohibited by local codes.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Appliance Dimensions and Minimum Requirements for Fireplace Dimensions Clearance to Combustibles Gas Connections Appliance Description, Leveling the Appliance and Electrical Requirements Venting Instructions 13 - 15 Surround Installation and Rocker Switch Wiring Optional Wall Switch, Thermostat or Remote Control.
  • Page 3 • Optional Accessories: Check with your Authorized Archgard Dealer for a full complement of decorative accessories to suit your home’s décor and your tastes. Some of the accessories available are: 24K Gold Overlay (for the flat window), a variety of surrounds (faceplates) with gold, black or pewter trims and an overlay bay window that simply attaches to the front of your fireplace while leaving the flat glass door in place.

  • Page 4: Caution And Safety Instructions

    For more information, visit www.P65Warnings.ca.gov. Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Before leaving this unit with the customer, the installer must ensure that the appli- ance is firing correctly and that the electrical system is in working order.

  • Page 5: Appliance Certification, Installation Codes And Specifications

    Massachusetts code 248 CMR 5.00. Approval Code: G1-0319-387 . (https://licensing.reg.state.ma.us/pubLic/ pl_products/pb_pre_form.asp). Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance. INSTALLATION CODES This appliance must be installed by a qualified gas appliance installer. The installation must conform with the local codes or, in the absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54.
  • Page 6 34-DVI34N-2 RATING PLATE SAMPLE...

  • Page 7: Appliance Dimensions And Minimum Requirements For Fireplace Dimensions

    34-DVI34N-2 APPLIANCE DIMENSIONS DIMENSIONS 25-5/8” (651 mm) 16” (406 mm) 14” (356 mm) 14-1/8” (359 mm) DSK-32 or ESK-32 (STANDARD SUR- ROUND) 41-1/2” (1054 mm) 27-3/4” (705 mm) LSK-32 (LARGE FLAT SURROUND) 47-1/2” (1207 mm) 30-3/4” (7457 mm) 19-7/8” (505 mm) 3-3/4”...

  • Page 8: Clearance To Combustibles

    34-DVI34N-2 CLEARANCES TO COMBUSTIBLES WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury or loss of life. CAUTION: This appliance is designed for use in any masonry or factory-built, wood-burning fireplace.
  • Page 9 34-DVI34N-2 HEARTH CLEARANCES WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury or loss of life. Any Hearth that extends outward in front of the insert must not have any combustible material closer than 3”...

  • Page 10: Gas Connections

    34-DVI34N-2 GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. Adequate clearance for proper installation and checking of the gas connections must be provided.

  • Page 11: Appliance Description, Leveling The Appliance And Electrical Requirements

    34-DVI34N-2 APPLIANCE DESCRIPTION TOP VIEW On/Off Rocker Gas Inlet side Switch and power cord outlet Fresh Air Intake Exhaust FRONT VIEW Top “grill” Surround louver “Faceplate” Ceramic Glass with Ceramic Brick standard “panel” liner door frame Bottom “grill” louver LEVELING THE 34DVI34N-2 DIRECT VENT INSERT Before placing the appliance into the fireplace, check the hearth of the fireplace to see if it is level with the front of the fireplace.

  • Page 12: Venting Instructions

    Approved vent terminals are: Archgard terminal. Part # 999-INS-TK Simpsons Dura-Vent terminal. Part # 980, 923GK (adaptor with flashing) or 991 (high wind cap) NO OTHER VENTING SYSTEM OR COMPONENTS MAY BE USED. If you are using “Dura-Vent” verti- cal termination cap, follow the instructions provided with the “Dura-Vent”...
  • Page 13 34-DVI34N-2 VENTING INSTRUCTIONS 999-INS-TK Install the termination cap making sure to provide sufficient space (around and on top) so you do not im- pede the flow of air, both into and out of, the cap. This cap is only to be used for non-combustible installa- tions.
  • Page 14 34-DVI34N-2 Using a Co-linear to Coaxial Adapter The gas fireplace can be converted from co-linear to coaxial when it is desired to remove a section of the masonry fireplace chimney to below the roof line. WARNING This appliance must be installed by a qualified gas appliance installer. The installation must conform with the local codes or, in the absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54.

  • Page 15: Surround Installation And Rocker Switch Wiring

    34-DVI34N-2 SURROUND INSTALLATION Make sure the gas and electrical lines are properly connected to the appliance. Slide the unit into the fireplace and slide the excess flue liner material back onto the chimney. Before the ap- pliance is fully recessed into the fireplace, attach the surround onto the appliance. The return flange on the side of the surround fits on the inside of the mounting rails on the appliance.

  • Page 16: Optional Wall Switch, Thermostat Or Remote Control. Suggested Wiring

    Fig 1. This will allow the original on/off rocker switch to be used in case the device that is mounted to the wall becomes inoperable. Note: Archgard Industries Ltd. does not manufacture or sell any wall switch or wall thermostat, and will not extend warranty to them.

  • Page 17: Brick And Log Placement

    34-DVI34N-2 BRICK PLACEMENT The Archgard brick and reflective glass panels offer a variety of looks to customize your fire- place and are purchased separately. Care must be given when first installing the bricks, and if removed for servicing, as they can be damaged or broken if not handled properly.
  • Page 18 34-DVI34N-2 Right Brick Panel Placement as Shown...
  • Page 19 34-DVI34N-2 Left Brick Panel Placement as Shown NOTE: Installing the panels in any other position other than shown will result in flame im- pingement causing sooting of the logs, brick liner and ceramic glass viewing area.
  • Page 20 34-DVI34N-2 LOG PLACEMENT The Archgard pan burner bed and fiber logs are designed to give a realistic fire package, and cre- ated to look the same as the day they were originally installed. Care must be given when first in- stalling the logs, and if removed for servicing, as they can be damaged or broken if not handled properly.
  • Page 21 34-DVI34N-2 LOG PLACEMENT... Continued Step 1. Locate Log with 7207 stamped on the bottom and place it as shown. LOG 7207 Step 2. Locate Log with 7201 stamped on the bottom and place it as shown. LOG 7201 IMPORTANT: Back of log #7201 must rest on top of log rests as shown...
  • Page 22 34-DVI34N-2 LOG PLACEMENT... Continued Step 3. Locate Log with 7203 stamped on the bottom and place it as shown. LOG 7203 Step 4. Locate Log with 7202 stamped on the bottom and place it as shown. LOG 7202...
  • Page 23 34-DVI34N-2 LOG PLACEMENT... Continued Step 5. Locate Log with 7204 stamped on the bottom and place it on the front pins as LOG 7204 Step 6. Locate Log with 6 stamped on the bottom and place it as shown. LOG 6...
  • Page 24 34-DVI34N-2 Step 7. Locate Log with 5 stamped on the bottom and place it as shown. LOG 5 Step 8. Place black embers around logs as shown , do not cover the holes in the burner. Black embers...

  • Page 25: Final Installation Check And Initial Operation

    34-DVI34N-2 FINAL INSTALLATION CHECK Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order.

  • Page 26: First Fire And Lighting Instructions (Caution)

    34-DVI34N-2 FIRST FIRE When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat from the appliance evaporating the oils and solvents used in fabricating the appliance. Close off the room to the rest of the house and open all windows. Keep the room well ventilated, as smoke alarm may sound.

  • Page 27: Lighting Instructions On Rating Plate

    34-DVI34N-2 LIGHTING INSTRUCTIONS ON RATING PLATE...

  • Page 28: Glass Door Removal / If Your Glass Should Break

    (SHOWN OPEN) IF YOUR GLASS BREAKS In the event your glass cracks or breaks, contact your local Archgard dealer to purchase a new door assembly to replace the original door. The door assembly must be replaced as an entire assembly.

  • Page 29: Safety Screen Barrier Installation

    34-DVI34N-2 If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.

  • Page 30: Troubleshooting Guide

    34-DVI34N-2 TROUBLESHOOTING Please check to make sure the instructions are followed exactly before attempting troubleshooting of the appliance. WARNING: Troubleshooting and servicing of gas and electrical devices of the appliance should only be conducted by a qualified service technician. SYMPTOM ACTION Pilot will not light after 1.
  • Page 31 34-DVI34N-2 TROUBLESHOOTING Cont... SYMPTOM ACTION The main burner does not turn 3. Check to make sure the thermostat is set high enough to turn on the on with the pilot lit. Cont... appliance. 4. Check that the remote switch or the thermostat is turned on. 5.

  • Page 32: Maintenance And Cleaning The Appliance

    34-DVI34N-2 MAINTENANCE CAUTION: Do not conduct maintenance on the appliance while it is operating or while it is still hot. CLEANING THE APPLIANCE The exterior painted surfaces, glass, and metal plated trims may be cleaned with a soft, non- abrasive cloth and water or a suitable, mild, non-abrasive cleaner. Be sure there are no fingerprints left on the glass panels as high temperatures can bake these prints on permanently.

  • Page 33: Servicing Under Warranty And Adjusting Primary Air

    34-DVI34N-2 SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Archgard warranty at the back of the manual. Contact the authorized Archgard dealer where you purchased the appliance from and provide them with details of the problem, together with the initial installation information (from the back of this manual).

  • Page 34: Adjusting Primary Air (Continued) And Changing Main Burner Orifice

    ADJUSTING PRIMARY AIR NOTE: Fig. 1 Is to give an example of what a correct or incorrect flame pattern looks like. It is not a true representation of what the Optima 34 will look like in your home environment. Fig.1 FLAMES The left side shows correct adjustment.

  • Page 35: Checking Inlet/Outlet Gas Pressures, Adjusting Pilot And Convertible Pilot Orifice

    7/16” (11 mm) wrench turn a 1/4 7/16” (11 mm) open then push the small metal tab across to WRENCH (HERE) the other side of the body and retighten. Call your local Authorized Archgard Dealer to purchase the correct fuel conversion kit for your gas appliance.

  • Page 36: Replacing Convection Blower & Wiring Diagram

    34-DVI34N-2 REPLACING CONVECTION BLOWER CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70.

  • Page 37: Valve Tray Assembly And Parts List

    34-DVI34N-2 VALVE TRAY ASSEMBLY Item # Item Description Unit 308-0043 Valve, ROBERTSHAW, Hi/Low Natural Gas, or 308-0005 Replacement Piezo Igniter, SIT controls 301-6007 7” Flex line assembly, flanged orifice 301-0068-34 Orifice (Main Burner Orifice) Drill to # 34 DMS (2.76 mm) for Natural Gas 301-0068-51 Orifice (Main Burner Orifice) Drill to #51 DMS (1.72 mm) for LP (Propane) Gas...

  • Page 38: Fiber Logs & Pan Burner Assembly And Parts List

    34-DVI34N-2 PARTS LIST - Logs and Pan Burner LOG 7201 LOG 7207 LOG 7202 LOG 7203 LOG 6 LOG 5 LOG 7204 Grate Item # Item Description Unit 310-634720-1 Log 7201 310-634720-2 Log 7202 310-634720-3 Log 7203 310-634720-4 Log 7204 310-634720-5 Log 7205 (there is only 5 on log) 310-634720-6 Log 7206 (there is only 6 on log) 310-634720-7 Log 7207...

  • Page 39: Replacement Parts List - General Parts

    34-DVI34N-2 REPLACEMENT PARTS LIST - ARCHGARD 34-DVI34N-2 Item # Item Description Unit 200-0191-13 Owner’s Manual 832-0005 Top Louver (grill) assembly (Metallic Black) 832-0004 Bottom Louver (grill) assembly (Metallic Black) 300-0030 Hinge Self-Closing Brass 800-0070 Air Shutter Assembly 314-0131 Air Shutter Gasket...
  • Page 40 34-DVI34N-2 REPLACEMENT PARTS LIST FOR THE ARCHGARD 34-DVI34N-2 Item # Item Description Unit Optional Surround Trims 34-TKSB Black Trim for SKCAB surround 34-TKLB Black Trim for SKLB surround 34-TKSG Gold Trim for SKCAB surround 34-TKLG Gold Trim for SKLB surround...

  • Page 41: Warranty

    LTD., hereinafter referred to as “Archgard”. Archgard war- The original purchaser shall return the defective part(s) to the rants to the original purchaser of an Archgard gas burning original authorized Archgard dealer – transaction prepaid, fireplace(s) that the product will be free from defects in mate-...

  • Page 42: Frequently Asked Questions

    Q. My fan/blower makes a “whirring” or “humming” noise. A. Your Archgard gas appliance uses a powerful fan to push heated air into your room. It is not unusual to hear a “humming” noise when your fan is running. Note: the sound will change depending on the set- ting that your fan speed control is set at.
  • Page 43 Phone: ( _____ ) Installer's Name & Address: City: State/Prov: ZIP: Phone: ( _____ ) Why did you choose this product? Thank you for purchasing our product and filling out this warranty card. Save time by completing this form at www.archgard.com/warranty-registration...
  • Page 44 Archgard Industries Ltd. 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
