INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference. Contact your dealer with questions regarding
installation, operation or service.
Pour demander un exemplaire en français de ce Manuel
du propriétaire, visitez www.heatnglo.com/translations.
NOTICE: DO NOT discard this manual!
Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See appliance Installation Manual for additional
Commonwealth of Massachusetts requirements.
Heat & Glo • PRIMO48, PRIMO48ST, PRIMO60, PRIMO60ST, PRIMO72, PRIMO72ST Owner's Manual • 2310-971 Rev. o • 1/19

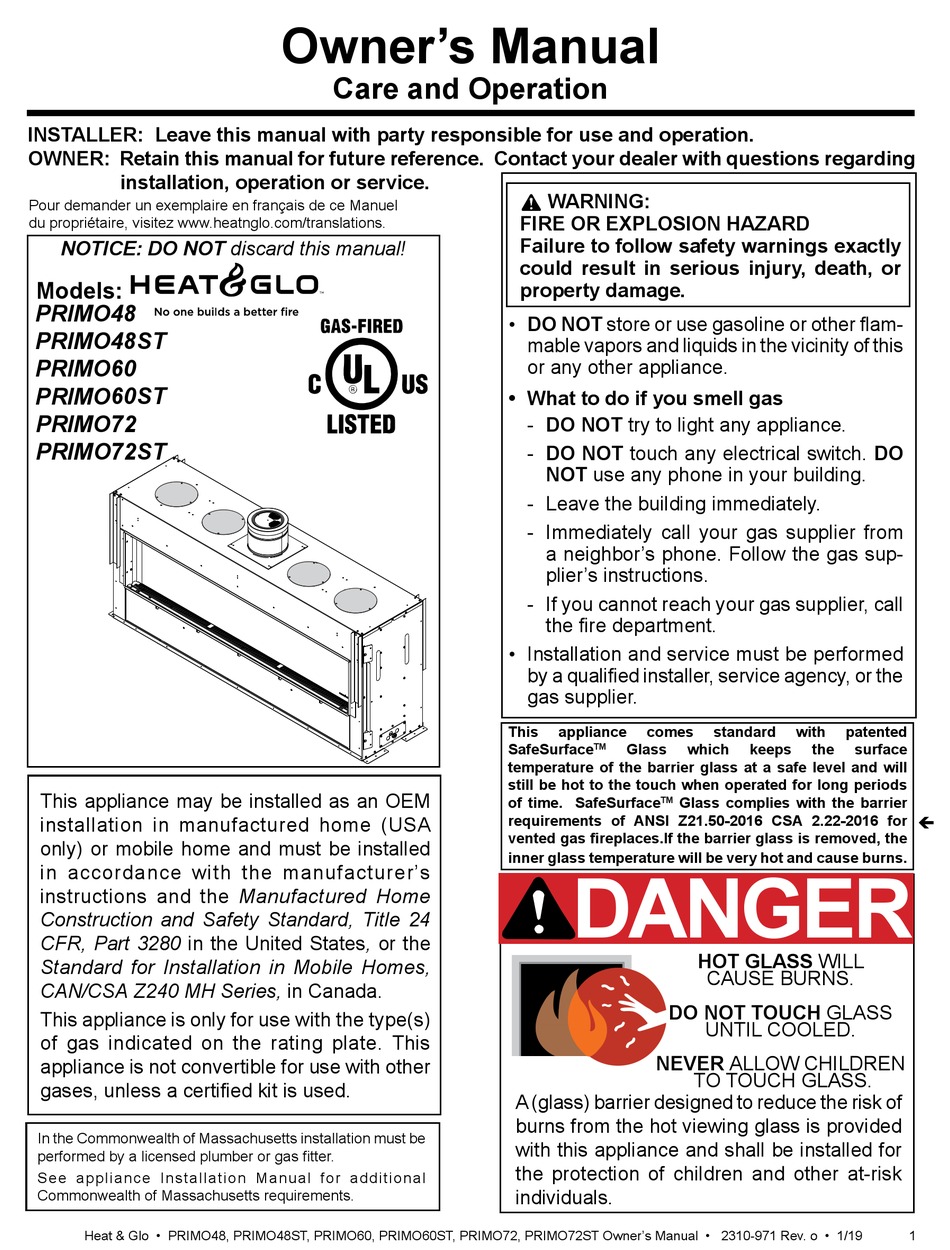

Owner's Manual
Care and Operation
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
This
appliance
comes
SafeSurface
Glass
TM
temperature of the barrier glass at a safe level and will
still be hot to the touch when operated for long periods
of time. SafeSurface
Glass complies with the barrier
TM
requirements of ANSI Z21.50-2016 CSA 2.22-2016 for
vented gas fireplaces.If the barrier glass is removed, the
inner glass temperature will be very hot and cause burns.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A (glass) barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
standard
with
patented
which
keeps
the
surface
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1
