Heat & Glo PRIMO48 Installation Instructions Manual

MODELS: PRIMO48, PRIMO48ST, PRIMO60, PRIMO60ST, PRIMO72, PRIMO72ST
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
This appliance comes
SafeSurface Glass which keeps the surface temperature
TM
of the barrier glass at a safe level and will still be hot to
the touch when operated for long periods of time.
If the barrier glass is removed, the inner glass temperature
will be very hot and cause burns.

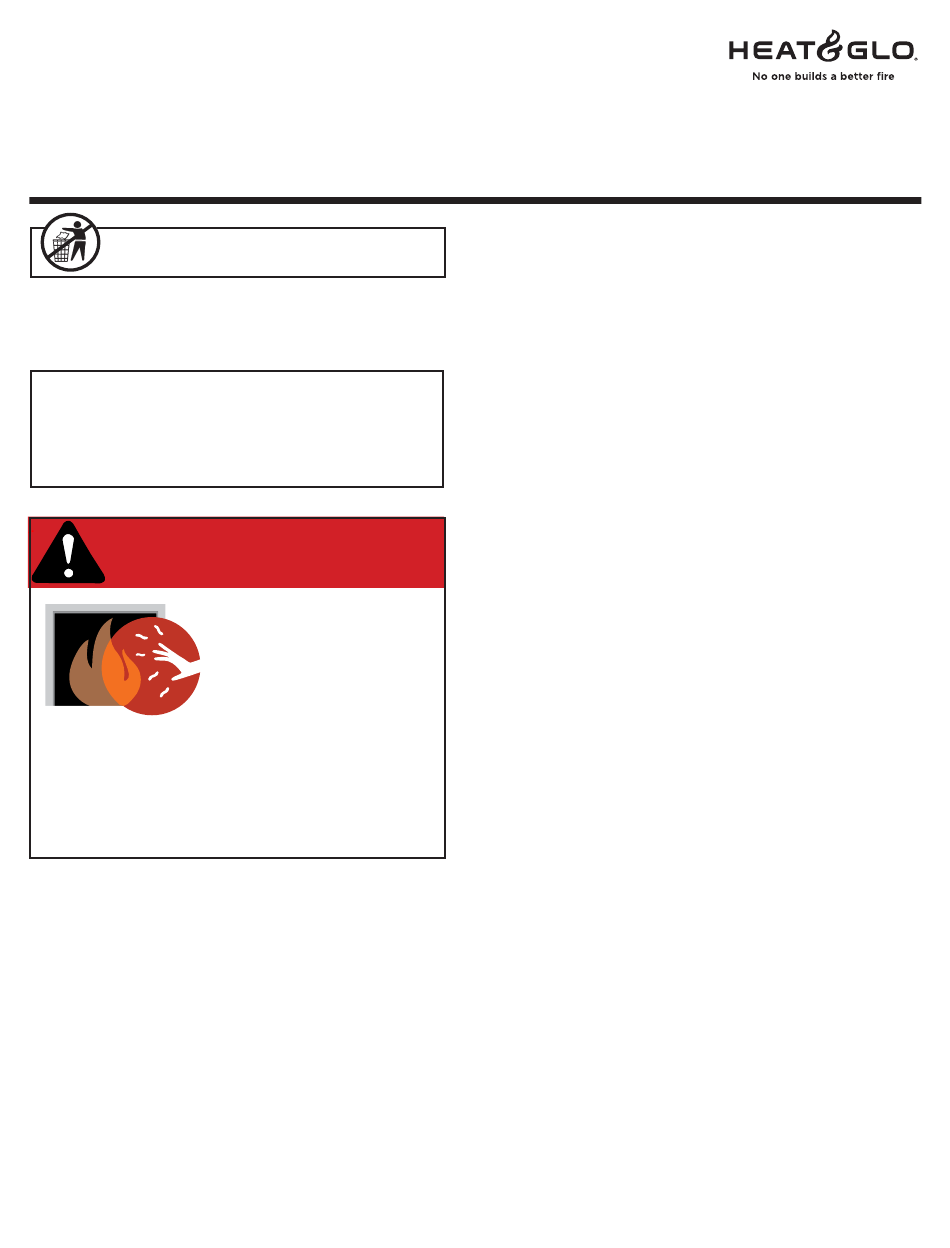

DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed behind a decorative front.
CAUTION! Do not install damaged components.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specified in
appliance installation manual.
HEAT-ZONE-PRIMO
Installation Instructions
standard with patented
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
Heat & Glo • HEAT-ZONE-PRIMO Instructions • 2310-936 Rev. i • 3/20
HEAT-ZONE-PRIMO
WARNING! Risk of Fire! Either the HEAT-ZONE-PRIMO
or the HEAT-OUT-PRIMO PowerFlow™ Heat Manage-
ment System must remain ON during operation of the ap-
pliance. Overheating will occur. Appliance will shut down.

Introduction

The HEAT-ZONE-PRIMO PowerFlow™ Heat Management
System conveys warm air from the fireplace through air
ducts to remote locations in the same room or other rooms
in the building. Two HEAT-ZONE-PRIMO's must be installed
with the PRIMO appliance or the appliance will overheat.
Two HEAT-ZONE-PRIMO's are included in the kit.
Note: A minimum clearance of 18 inches to any com-
bustible materials or combustible surfaces such as room
furnishings, furniture, curtains, etc., is required from the fan
housing air outlet. Plan for this clearance prior to installation
of the Heat-Zone-Primo kit. See Figure 6 and Figure 7.

Approvals

The flexible duct used with the HEAT-ZONE-PRIMO is
manufactured and marked to the requirements of UL-181,
Class I air duct.
Operation
The HEAT-ZONE-PRIMO PowerFlow™ Heat Management
System is powered by a thermo switch. The system will
turn on approximately 10 minutes after the appliance is
turned on. The HEAT-ZONE-PRIMO accessory is tested
and safe when installed in accordance with this installa-
tion manual. It is your responsibility to read all instructions
before starting installation and to follow these instructions
carefully during installation.
Installation of this kit MUST be performed by a qualified
service technician.
The HEAT-ZONE-PRIMO is carefully engineered and must
be installed only as specified. If you modify it or any of its
components you will void the warranty, and you may possibly
cause a fire hazard. Installation must be done according to
applicable local, state, provincial, and/or national codes.
1
