CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity. High temperatures
could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance
NOTICE: DO NOT discard this manual!

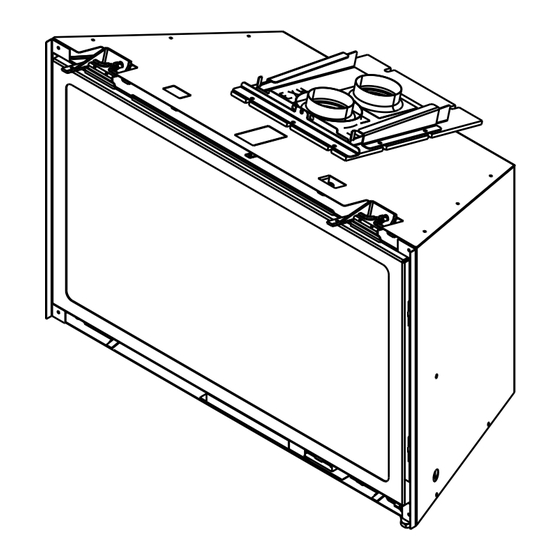

Models:
PROV-I30-IPI
PROV-I35-IPI
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Pour demander un exemplaire en français de ce manuel
d'installation, visitez www.heatnglo.com.
Installation Manual
Installation and Appliance Setup
Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROV-I30-IPI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Heat & Glo PROV-I30-IPI

  • Page 1 Pour demander un exemplaire en français de ce manuel individuals. d’installation, visitez www.heatnglo.com. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 2: Table Of Contents

    G. Installing Termination Cap ......25  = Contains updated information. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 3: Installation Standard Work Checklist

    _____________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments Communicated to party responsible ____________________ by ______________________on ___________  = Contains updated information. (Builder / Gen. Contractor/) (Installer) (Date) 2534-982B 6/23 Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 4: Product Specific And Important Safety Information

    State of California to cause cancer and reproductive harm. For more information go to: www. P65Warnings.ca.gov. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 5: Getting Started

    Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. For assistance or additional information, consult a qualified service technician, service agency or your dealer. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 6 Multi-purpose tool can be stored in appliance manual bag. Figure 2.3 Multi-Purpose Tool Storage Options DO NOT store appliance manual bag in or around the appliance. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 7: Good Faith Wall Surface

    Stove cement / Aluminum foil tape 3/16 in. Allen wrench (Rear Leveling Legs) Elongated pressure taps (Recommended) Noncorrosive leak check solution Caulking material (300 ºF minimum continuous exposure rating) Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 8: Appliance/Decorative Barrier Front Dimension Diagrams

    2-7/16 18-15/16 481 21-7/16 545 *Note: Location G is the appliance depth measurement, for installation depth reference Location E on Figure 3.7. Figure 3.1 Appliance Dimensions Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 9 27-5/8 16-1/16 1-7/8 30-5/8 20-1/2 PROV-I30-IPI INFIT-30 32-5/8 19-9/16 1-7/8 35-5/8 23-1/2 PROV-I35-IPI INFIT-35 Figure 3.2 Decorative Barrier Front Dimensions - Inside Fit Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 10 32-5/16 19-1/2 2-1/4 23-1/2 PROV-I30-IPI FS-MI30 37-5/16 23-1/2 2-1/4 27-1/2 26-1/2 PROV-I35-IPI FS-MI35 1041 Figure 3.3 Decorative Barrier Front Dimensions - Firescreen Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 11: Minimum Fireplace Opening

    1/2 in. Figure 3.6 Minimum Required 1/2 in. Gap NOTICE: 1/2 inch gap must be maintained or components will overheat. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 12 On site custom surrounds are available. See your dealer for information. On site custom surrounds are flush and have no depth. A flush surround would increase the unit opening depth (E*) by 3/4 inch. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 13: Zero Clearance Wall Extension

    Figure 3.8 Non-Combustible Framing Requirement this manual. Overlapping materials could ignite and will interfere with proper operation of decorative fronts. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 14 Note: Combustible materials may be used to seal wall extension to existing masonry wall as long as it is out- side the non-combustible zone. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 15: Mantel, Wall Projections, & Hearth Extensions

    Note: All numbers in Tables 1 and 2 include the 1/4 in. gap on surround edge. SURROUND OPENING MANTEL LEG OR WALL PROJECTIONS Figure 3.12 Clearances to Mantel Legs or Wall Projections (Acceptable on both sides of surround opening) Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 16: Hearth Extension / Vinyl Flooring

    SURROUND Flooring & Hearth Material Flooring & Hearth Material Flooring & hearth material must remain below the bottom of surround Figure 3.16 Flooring & Hearth Material Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 17 70 °F). Consult the manufac- turer’s flooring specifications to ensure compatibility. COMBUSTIBLE FLOOR UNDERNEATH APPLIANCE Figure 3.18 Solid Fuel Floor Clearance Figure 3.17 Vinyl Flooring Recommendations Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 18: Installation Preparation

    Appliance Cord Length (approximate) Appliance Size Left Side Right Side 30 in. 10 ft. 3 in. 7 ft. 6 in. 35 in. 10 ft. 7 ft. Figure 4.1 Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 19: Installing Vent Pipe And Appliance

    VENT PIPE COLLAR SLIDE PLATE ASSEMBLY EXHAUST STARTING COLLAR NOTE: TO ACHIEVE OPTIMUM PERFOR- MANCE OF INSERT, MINIMIZE OR AVOID BENDS IN EXHAUST VENT PIPE. Figure 5.1 Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 20: Using Vertical Restrictor

    10 ft. - 25 ft. No adjustment needs to be done. 26 ft. - 35 ft. Open 1 restrictor opening. 36 ft. - 50 ft. Open both restrictor openings. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 21: Venting Components

    • Depending on the chimney cleanliness, consider using the full length intake so as to lessen the possibility of sense rod contamination and flame rectification issues. Figure 5.4 Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 22: Connecting To Slp

    Up to four 45 degree elbows may be used as long as the minimum venting requirements are met per the above chart. Figure 5.5 Optional SLP Venting Configuration - Vertical Termination Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 23: Connecting Vent Pipe

    • Trim chimney top plate to minimize excess overhang or bend over flue tile. See Figure 5.6. • Place 3/8 inch bead of 300 ºF minimum continuous exposure rating silicone on flue tile top. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 24: Placing, Securing And Leveling The Appliance

    LOWER REAR LEVEL LEGS TO REDUCE GAP ABOVE SURROUND FLOOR Figure 5.7 Leveling Leg Detail Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 25: Installing Termination Cap

    Over 10/12 to 11/12 ..3.25 * H minimum may vary depending on regional snowfall. Refer to local codes. Figure 5.8 Minimum Height from Roof to Lowest Discharge Opening Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 26: Electrical Information

    • If desired an additional wall switch or thermostat may RECOMMENDED be added to system. ELECTRICAL OUTLET LOCATIONS APPLIANCE Figure 6.1 Electrical Outlet Detail Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 27 THE REMOTE WIRE ASSEMBLY TO WIRED OUTLET (LOCATED ON SIDE OF SURROUND) WIRES (TO BROWN) ON/OFF SWITCH 2206-299 Figure 6.2 IntelliFire Pilot Ignition (IPI) Wiring Diagram Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 28: Installation / Service For Optional Fan

    See Figure 5.1. OPTION 1 INSTALL FAN Figure 6.5 Through Valve Plate Opening (Option 2) REAR COVER PLATE Figure 6.4 Cover Plate Removed (Option 1) Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 29 CORD ASSEMBLY RHEOSTAT SET RHEOSTAT TO DESIRED SPEED LOCATE RHEOSTAT AS SHOWN ON FRONT / LEFT SIDE OF BASEPAN Figure 6.7 Fan Wiring Diagram Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 30: Gas Information

    CAUTION: Any wires removed from the wire clips during appliance installation or service must be re-installed in the wire clips. GLASS GLASS CLIP CLIP ASSEMBY ASSEMBLIES SCREW ACCESS Figure 7.2 Glass Clip Assembly Removal Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 31: Gas Pressure

    1/2 in. (13 mm) control valve inlet. • If substituting for these components, please consult local codes for compliance. Figure 7.4 Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 32: High Altitude Installations

    Figure 7.6 Gas Valve Detail Figure 7.5 Air Shutter Air Shutter Settings Propane PROV-I30-IPI 3/8 in. 1/2 in. PROV-I35-IPI 1/2 in. Full Open Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 33: Finishing

    Note: All numbers in Tables 1 and 2 include the 1/4 in. gap on MANTEL LEG OR WALL PROJECTIONS surround edge. Figure 8.1 Clearances to Mantel Legs or Wall Projections (Acceptable on both sides of surround opening) Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 34: Hearth Extension

    SURROUND Flooring & Hearth Material Flooring & Hearth Material Flooring & hearth material must remain below the bottom of surround Figure 8.5 Flooring & Hearth Material Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 35 16 in 30-3/4 in. 35 in. 16 in 35-3/4 in. SIDE VIEW MINIMUM 1/4 IN. REQUIRED COMBUSTIBLE FLOOR UNDERNEATH APPLIANCE Figure 8.7 Solid Fuel Floor Clearance Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 36: Appliance Setup

    WARNING! Glass seal plate must be properly installed. Risk of elevated component temps and carbon monoxide exposure. Note: Appliance is shipped with glass seal plate in the installed position. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 37: Remove The Shipping Materials

    WARNING! Risk of Fire and Electric Shock! Use ONLY Hearth & Home Technologies-approved optional acces- sories with this appliance. Using non-listed accessories could result in a safety hazard and will void the warranty. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 38: Place The Lava Rock

    • Save the remaining ember materials for use during appliance servicing. The embers provided should be Figure 9.3 Placement of Lava Rock and Embers enough for 3 to 5 applications. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 39: Install The Log Assembly

    Figure 2 Empty Firebox with Shoulder Screw Locations Lava Rock: The PROV-I30-IPI comes standard with lava rock. Refer to the appliance installation manual for instructions on how to properly install the lava rock in the appliance. Logs should rest on the base pan, not on the lava rock.
  • Page 40 LOG #4: With the nub facing the back of the firebox, place the center of the end of log #4 against pin D. Place the other end of the log on the flat spot of log #1. See Figure 6. Figure 6 Log #4 Installed Figure 5 Log #3 Installed Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 41 LOG #1: Place right end of log 1 on the base pan between log pins D and E. Rotate the log until the left end of the log contacts the air scoop. See Figure 9. AIR SCOOP AIR SCOOP Figure 9 Log #1 Installed Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 42 LOG #4: With the split end of log #4 to the right, place the center of the end of log #4 against pin C. Place the other end of log #4 on the flat spot of log #1. See Figure 13. Figure 13 Log #4 Installed Figure 12 Log #3 Installed 2534-935B Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 43: Install Decorative Barrier Front And Surround

    Figure 6.2. NOTE: For on site custom surround details, see instruc- tions included with the surround. ON/OFF SWITCH Figure 9.4 Surround ON/OFF Switch Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 44: Reference Materials

    FLEX3-30: One 3 inch flexible liner expands to 30 feet. FLEX-CNCT: Connector kit - 3 inch liner to 3 inch liner, one connector per kit. Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
  • Page 45: Accessories

    Please contact your Heat & Glo dealer with any questions or concerns. For the location of your nearest Heat & Glo dealer, please visit www.heatnglo.com. Printed in U.S.A. - Copyright 2024 Heat & Glo • PROV-I30-IPI, PROV-I35-IPI Installation Manual • 2534-980 Rev. R • 3/24...
