Symmons Winslet Series Operation & Maintenance Manual

5103, 5105, 5106
®
Winslet Series
Operation & Maintenance Manual
Model Numbers
5103
Winslet Hand/Shower System
5105
Winslet Shower/Hand Shower System
5106

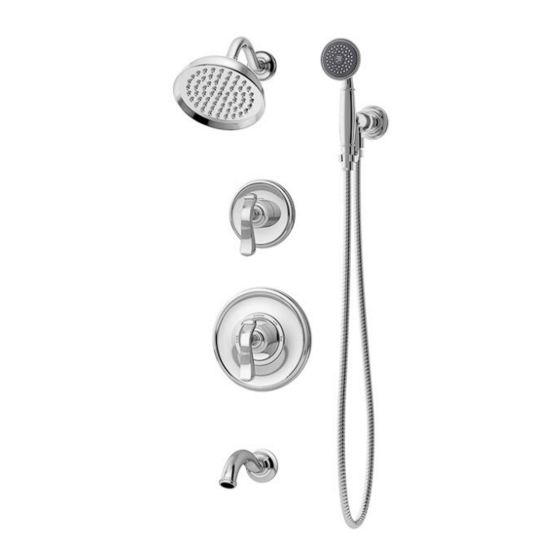

Winslet Tub/Shower/Hand Shower System
Modifications
CG -1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-H521-V
30" slide bar in place of wall cradle on hand
shower units (chrome and satin finishes only)
-IPS
1/2" female IPS connections
-REV
Reverse coring, hot on right, cold on left, for
back to back installations
-X
Integral service stops
-X-CHKS
Integral check stops - for use in installations
where a positive shut-off device is used down-
stream of mixing valve
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Specification
5103
Hand shower system powered by the Temptrol
Balancing valve. Features adjustable stop screw to limit
handle turn, 1 mode hand shower and standard 2.5 gpm
(9.5 L/min) flow restrictor.
5105
Shower/hand shower system powered by the Temptrol
Pressure Balancing valve. Features adjustable stop screw
to limit handle turn, separate two function diverter,
1 mode hand shower, 1 mode showerhead and standard
2.5 gpm (9.5 L/min) flow restrictors.
5106
Tub/shower/hand shower system powered by the
Temptrol Pressure Balancing valve. Features adjustable
®
stop screw to limit handle turn, separate three function
diverter, non-diverter tub spout, 1 mode hand shower,
1 mode showerhead and standard 2.5 gpm (9.5 L/min)
flow restrictors.
All components made from metal and nonmetallic
materials plated in standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to symmons.com/warranty for complete warranty
information.
