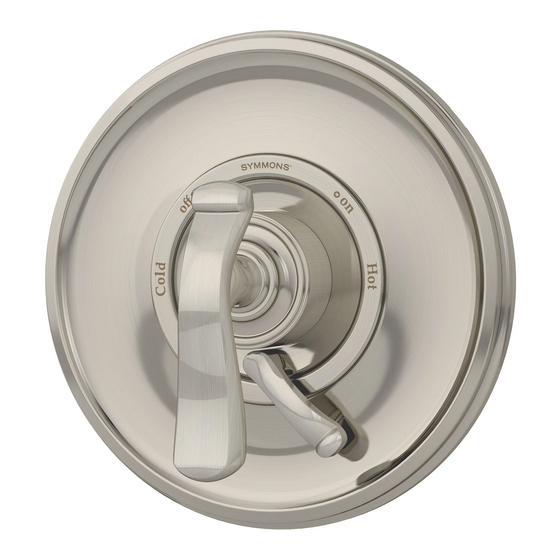

Winslet Trim Series
Winslet Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-5100-TRM
Shower Valve Trim
S-5101-TRM
Shower Trim
S-5102-TRM
Tub/Shower Trim
S-5104-TRM
Tub/Hand Shower Trim
S5108TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Winslet
TRIM, TA-10, T-12A
S5100TRMTC
Shower Valve Trim
S5101TRMTC
Shower Trim
S5102TRMTC
Tub/Shower Trim
S5104TRMTC
Tub/Hand Shower Trim
S5108TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-5100-TRM
S-5101-TRM
S5100TRMTC
S5101TRMTC
S-5104-TRM
S5104TRMTC
S5108TRMTC
S-5102-TRM
S5502TRMTC
S5108TRM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Winslet S-5100-TRM
Summary of Contents for Symmons Winslet S-5100-TRM

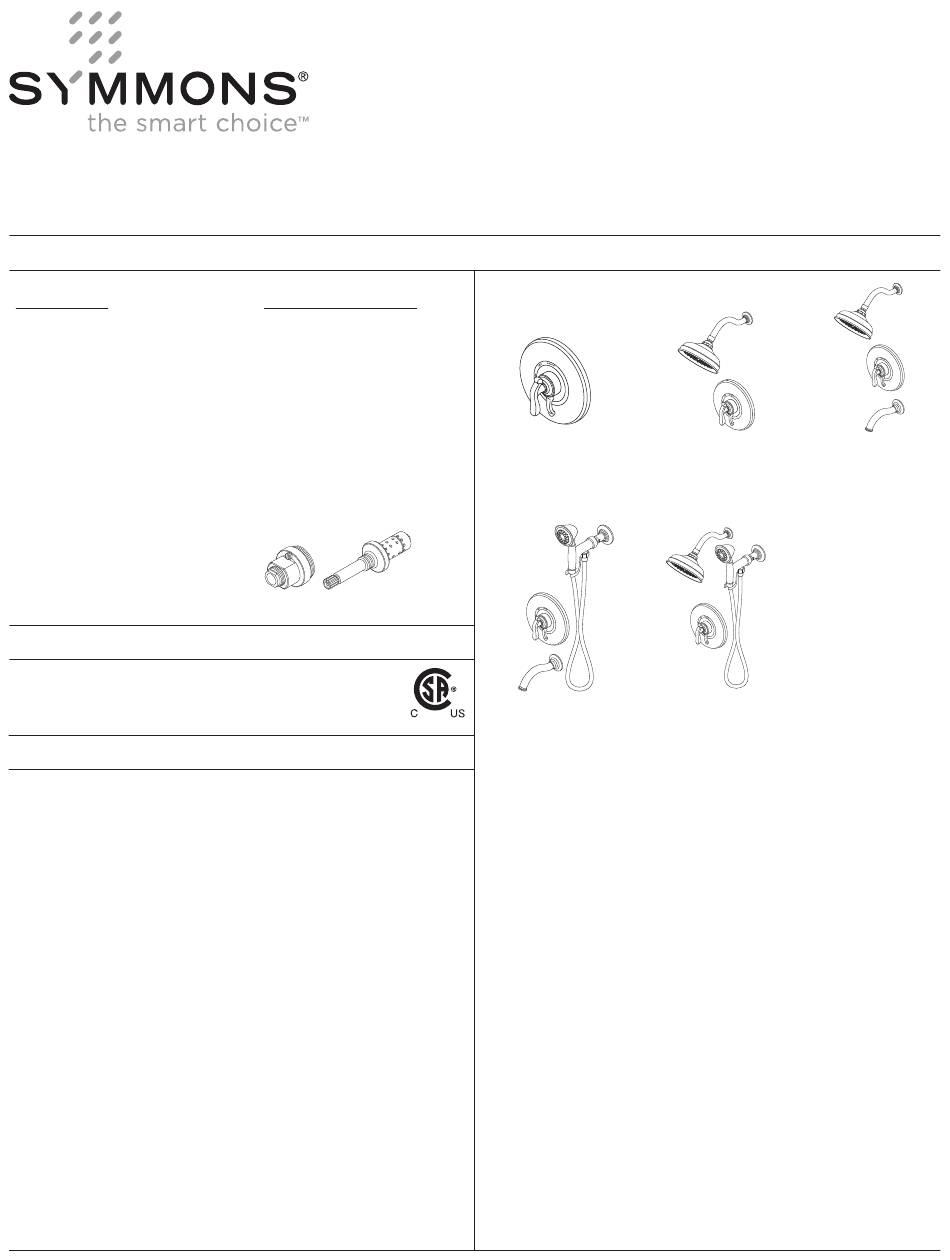

- Page 1 ASME A112.18.1/CSA B125.1 S-5104-TRM S5108TRM S5104TRMTC S5108TRMTC Warranty Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Go to www.symmons.com/register to register your Symmons product.
- Page 2 1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements Ø 2-1/2", 64 mm 12", 305 mm Male 1/2" NPT thread must protrude 1/2" (13 mm) from finished wall 6", 152 mm Ref.
- Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
- Page 4 7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 4-166 Shower Arm T-604 Flange Handle Assy. T-611 Dome Cover T-01997-PL Shower Escutcheon Mounting Screws RTS-056 Mounting Plate Diverter/Volume T-610 Control Handle Tub Spout 512TS Hand Shower 462W Wall Cradle T-613 Wall Cradle Flange...
- Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
- Page 6 10. Installation - Slide Bar Assembly 1) Install wall cradle flange to pipe fitting. Turn clockwise FIGURE 10.1 FIGURE 10.2 to secure. 2) Attach wall cradle to wall cradle flange turning clockwise to tighten. 3) Attach small end of hand shower hose to wall cradle. Turn clockwise to tighten (FIGURE 10.4).
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
- Page 8 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3418 REV 0 030220...
