Channel Parameters Modification - Comelit IP 100 SERIES Manual

■ Input the port number
■ Input the user name
■ Input the IPC password, and click "Save" finally

4.4 Channel parameters modification

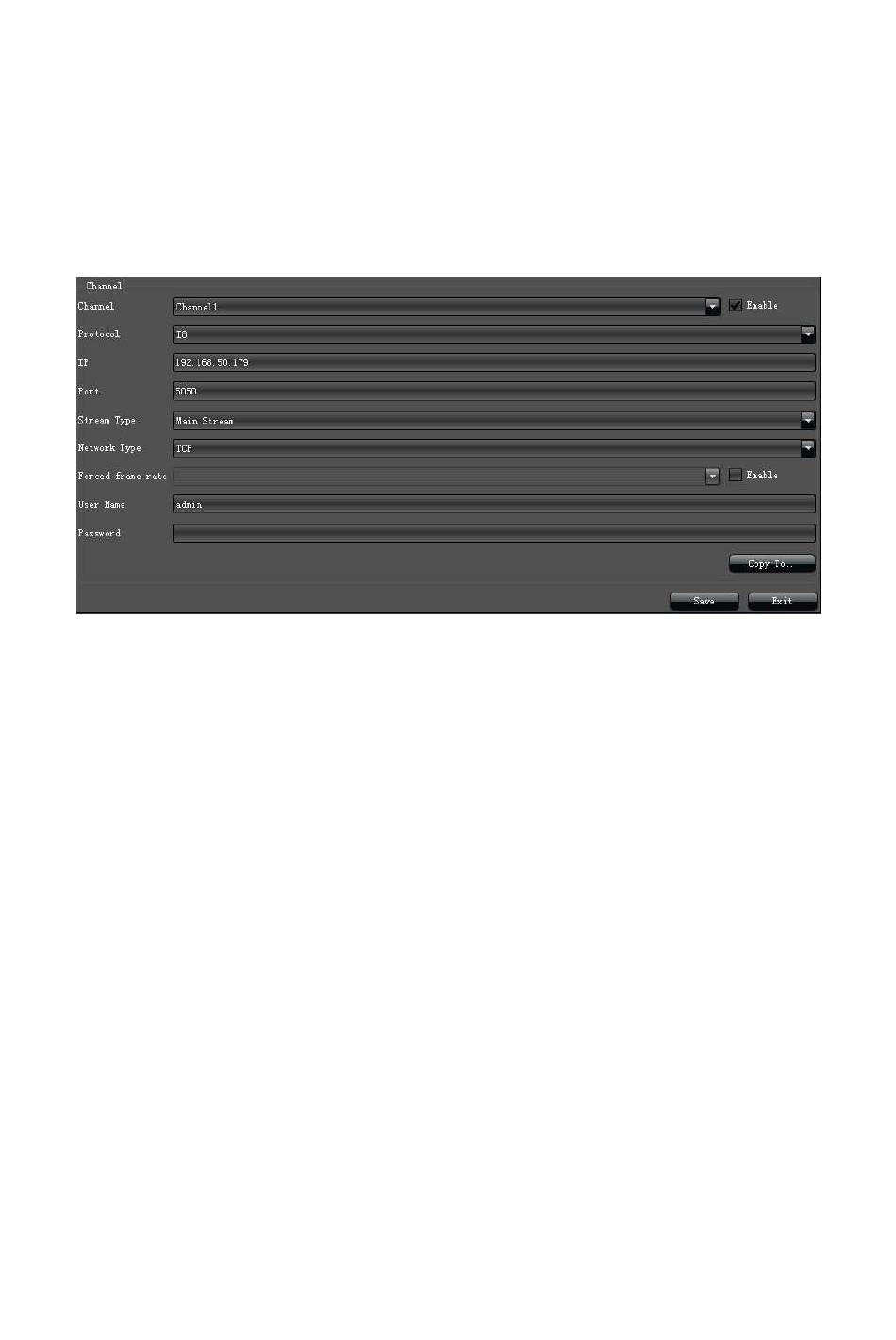

Double-click the channel parameters which needed to modify on the left "Channel
menu", then input relevant parameters, click"Save", as shown in the below picture:
1）Enable: Select the relevant channel, check "Enable"
2）Protocol: ONVIF Standard protocol/ I8 Private protocol/ I9 Private protocol/ RTSP
Standard protocol for selection
3）IP Add：Edit and modify the IP address manually
4）Port：Edit and set the relevant port number
5）Stream Type: Select "Main Stream" or "Sub Stream"
6）Network type：Select"TCP"or"UDP"
7）User ：Input the user name
8）Password：Fill the password in the password field
8
