- Page 1 16-25-36 INPUTS H264 STAND-ALONE NETWORK VIDEO RECORDER ART. IPNVR006A IPNVR025A IPNVR036A Please read this manual thoroughly before use and keep it for future reference...
-
Page 2: Technical Parameters
Technical parameters Model IPNVR006A-IPNVR025A-IPNVR036A Operation Embedded Linux operation system Operation system Graphical user interface (GUI), mouse, front button, remote control Imagine compression H.264 Recording mode Manual, Scheduled, Event Video Search Time, Event, Channel, Log Backup Network, USB Video input RJ45... -
Page 3: Hdd Installation
HDD Installation Make sure to install the HDD when You first use it. Front Panel Description IPNVR006A front panel 1. HDD led 9. PLAY: Playback key 2. State led, reserved 10. ESC: Exit key 3. 1 ~ 8: CH1 ~ CH8 Single-Screen keys 11. -
Page 4: Rear Panel Description

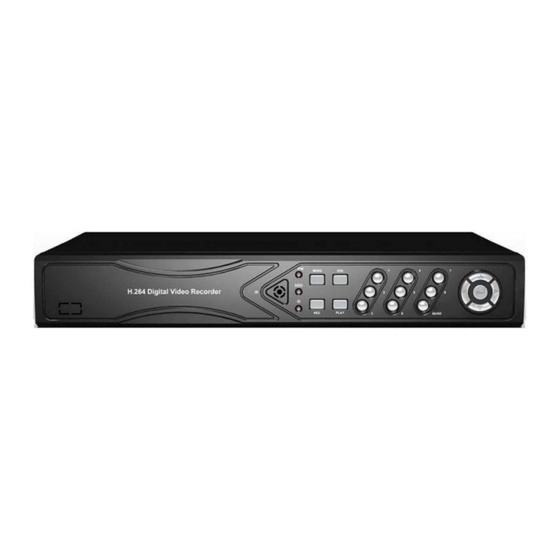

IPNVR025A-IPNVR036A front panel 1. POWER led 9. ESC: Exit key 2. HDD led 10. MENU: Menu key 11. ▲▼◄►: Direction key, 3. REC: Manual recording key : Confirm key 4. FN key 12. N.C. 5. PLAY: Playback key 6. ON/OFF key 7. -
Page 5: Menu Composition
the system date, time, channel name. Press corresponding number key of panel or click the left mouse button, user can preview the single channel; Press "QUAD" key in the panel or click the left mouse button, you can return to a multi-interface monitoring state. Menu operation instructions Menu 【MENU】,enter the device's main menu interface. -
Page 6: System Mode
Split screen: select corresponding preview mode in the menu column. Shortcut menu: in menu column, there are: Video Manage, System setup, Video playback, Video backup, Color adjust, PTZ control, Manual record, Volume, Setup Wizard, System mode, Fast network, Exit system. User could enter the corresponding menu preview mode. - Page 7 IPNVR025A You can choose between 5 different modes: A - 25 channels 1080p mode (720p, 960p and 1080p cameras). B - hybrid mode 25 channels-1 (21 cameras 720p, 960p, 1080p and 4 cameras 3MP, 4MP, 5MP). C - hybrid mode 25 channels-2 (17 cameras 720p, 960p, 1080p and 8 cameras 3MP) D –...
-
Page 8: Video Playback
Video Playback Channel：to choose the target channel by clicking the check box means non-selected. Record mode：to choose the recode mode by clicking the check box Search time：input the starting and finishing time into edit box Search：after setup the above search condition, click "search" to begin the corresponding video file searching and show the files. -
Page 9: Ptz Control
Manual record menu include several parts: Channel: ☑”means enable; “□”means disable. All on: enable all the channel. All off: disable all the channel. OK: confirm an exit Cancel: click cancel can exit the manual record interface and back to main menu. PTZ control Choose the "PTZ control"... -
Page 10: General Setup
General setup Choose the "General setup" and turn into it's setup interface. Time Setup： the real time when preview, click ”Refresh” after setting, make sure saving when it shows ”the recording will stop once you modify the time” and save the setting. Auto Logout: the present user will be logged off if there is no operation within 10 minutes, and it needs login again. -
Page 11: Record Setup
Delete All: delete all the connected IPC Manual Edit: modify the IPC parameters of the selected IPC After finish setup, click “ Ok” button, it will be saved; click: “Cancel” button, it will be not save Record Setup Select “Record setup”. Channel：chose the channels as needed by clicking the inverted triangle Weekday: chose the day as needed, "ALL"... -
Page 12: Screen Setup
After the page setup is completed, click '"Ok" to save the changes; click "Cancel ", non-save. DDNS Automatic analytical function of dynamic domain name, supported Comelit DNS, etc. To use Comelit DNS see the last page of this manual. In the "network setup" menu, click " DDNS "... -
Page 13: Video Detection
VGA Resolution: choose the desired resolution Auto Switch: user can setup the time of auto switching for preview image, it switch in single screen or 4 channels screen. Enable：“☑”start using, “□” non-start using After the page setup is completed, click '"Ok" to save the changes ; click "Cancel ", non-save. Video detection Channel: the option to set the alarm channel selection box Detection：select detection type... -
Page 14: Ptz Setup
PTZ Setup Select ”PTZ setup” Select ”PTZ setup” Channel: choose the right channel, click the select box to choose Protocol: the selected protocol must be the same with the one of PTZ Copy to： click "copy to", select the target channels and ''Ok" to set the current channel setup informations to other target video channel. -
Page 15: User Management
Copy to：click "copy to", select the target channels and ''Ok" to set the current channel setup informations to other target video channel. By clicking the button "Cancel", the setup informations are non-saved. After the setting, click "OK" to exit with saving or click "Cancel" to exit without saving. User management Select "User". -
Page 16: System Maintenance
System maintenance Select "System maintenance". Auto reboot: setting automatic reboot time, it can set" Saturday to Sunday", "Never" means do not reboot automatically. System upgrade : copy firmware to the root directory of USB drive, insert USB, select the USB storage device, then click "start"... -
Page 17: System Version
HDD info The listbox shows the HDD status information System version Device name ,device model, H/W version, S/W version could be checked here. System log Choose the log type which need to check from list box, and input the time period in the edit box, then click "Search", the related log information will showed below, you can turn the page by click "previous"... - Page 18 Logout: apply for logging users. After logout, if you want to use the device again, need to login again Reboot: it will reboot after "OK". Shutdown: shutdown the NVR Esee User Manual 1. Connect DVR with network, make sure network working fine 2.
- Page 19 NOTE: to view images of NVRs art. IPNVR006A, IPNVR025A and IPNVR036A from smartphones (iOS or Android OS) please use the app "Comelit View S" which is freely downloadable from the relative stores (Apple Store and Google Play). The same app for smartphones has to be used for tablet devices.
