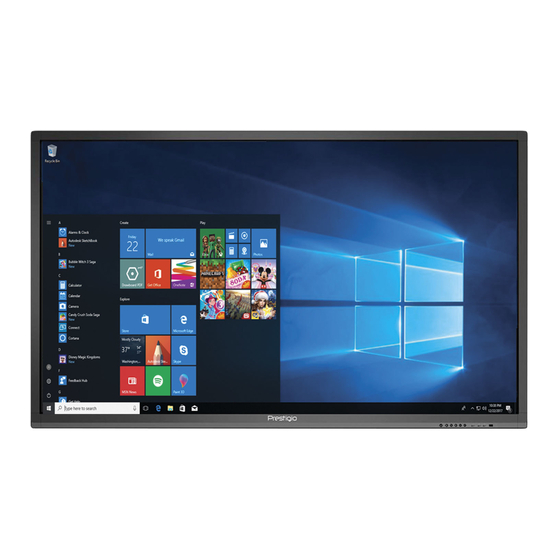

Prestigio MultiBoard Quick Start Manual

Prestigio MultiBoard Quick Start Manual

Hide thumbs Also See for MultiBoard:

Advertisement

Red Color - Pantone 1945C
MULTIBOARD
Quick Start Guide
2017
2016/12/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiBoard and is the answer not in the manual?

Questions and answers

Summary of Contents for Prestigio MultiBoard

  • Page 1 Red Color - Pantone 1945C MULTIBOARD Quick Start Guide 2017 2016/12/01...
  • Page 2: Table Of Contents

    Use the wall mount kit ��������������������������..�������������������������������������������������������������������� 4 Use the stand �������������������������������������������������������������������������������������...���������������������������� 4 3. Unboxing ........................5 Open your package ��������������������������������������������������������������������������������������������������� 5 Your MultiBoard at a glance ������������������������������������������������������������������������������������������� 6 Remote control ������������������������������������������������������������������������������������������������...������������.�� 8 4. Getting started ......................12 Use internal PC ���������������������������������������������������������������������������������������������������������� 12 Connected with an external computer ������������������������������������������������������������������������...
  • Page 3: Safety Precautions

    CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, do not attempt to open the shell or attempt to repair, if the device or any parts are defective, please go to a Prestigio maintenance centre for repair� Installation and relocation •...
  • Page 4 • Please keep the power cord from physical or mechanical damage� Do not bend or pull the power cord with force� Do not place any heavy object on the power cord� • Please ensure that the AC power is grounded� •...
  • Page 5 User manual� Prestigio hereby states that this MultiBoard complies to basic requirements and another relevant regulations given by the EU directive 2004/108/EC� Full version of the declaration of conformity is available on: www.prestigio.com/certificates...
  • Page 6: Preparation

    You can mount the MultiBoard on the wall by using the wall mount kit� • This MultiBoard should be mounted on a wall only with a wall mount kit recommended by Prestigio� The use of other wall mount kits may result in an unstable installation and may cause serious injuries�...
  • Page 7: Unboxing

    • USB cable • PC Audio cable • USB key • Quick start guide NOTE! Here the Prestigio MultiBoard L-series interface is used for illustrations. Real appearance may vary. Please visit product support section on www.prestigio.com. EN - 5 2016/12/01...
  • Page 8: Your Multiboard At A Glance

    Your MultiBoard at a glance 2016/12/01...
  • Page 9 AUDIO OUT Remote control signal receiver HDMI OUT AC SWITCH HDMI IN AC IN NOTE! Here the Prestigio MultiBoard L-series interface is used for illustrations. Real appearance may vary. Please visit product support section on www.prestigio.com. EN - 7 2016/12/01...
  • Page 10: Remote Control

    Quick Start Guide Prestigio MultiBoard Remote control Number Item Specification Power/standby Power on/off, or enter standby mode Mute Turn off the sound Start Windows key Space Space key ALT+Tab Window switch button of Internal PC programs ALT+F4 Close the window of the internal PC programs...
  • Page 11 Quick Start Guide Prestigio MultiBoard Display Display input source information Return button Input Source selected button Home Home screen of Android system Menu OSD menu button Function button Green Function button Yellow Function button Blue Function button One key for blank screen...
  • Page 12 Quick Start Guide Prestigio MultiBoard Insert the batteries 1� Remove the cover on the rear of the remote control� 2� Insert two “ AAA” batteries and care to respect the polarities: - + on the battery against +,- on the battery against - � Please do not mix the batteries�...
  • Page 13 Quick Start Guide Prestigio MultiBoard Remote control area The range of remote control receiver as shown� EN - 11 2016/12/01...
  • Page 14: Getting Started

    4. Getting started Use internal PC 1� Use the power cord to connect the MultiBoard to a power socket� 2� Switch on the POWER button on the back of the MultiBoard� 3� Turn the MultiBoard on by using the remote control or the power button on the touch panel on the front of the MultiBoard�...
  • Page 15: Connected With An External Computer

    Quick Start Guide Prestigio MultiBoard Connected with an external computer USB Cable Audio Cable VGA Cable Computer 1� Connect a VGA cable (15pin) between the VGA and external PC� Connect an audio cable between the PC and audio at the same time�...
  • Page 16: Connected With Other Devices

    Quick Start Guide Prestigio MultiBoard Connected with other devices A/V connection • AV IN Set-top Camera Video Game Video recorder Satellite TV receiver AV cable 1� Connect an AV-IN cable with the external devices with AV-OUT (Yellow is Video, Red is Audio-R, White is Audio-L)�...
  • Page 17 Quick Start Guide Prestigio MultiBoard Coaxial connection Coaxial cable Power amplifier/stereo equipment 1� Use a coaxial cable to connect the device by Coaxial jack� 2� Plug the POWER cord and switch on the power� 3� Press to turn the power on�...
  • Page 18: Network Connection

    Wired installation 1� Switch on the router� Refer to the router’s operation manual for switching on� 2� Connect the LAN terminal on the MultiBoard to the router with a LAN cable (commercially available)� The network signal output like router etc�...
  • Page 19: Wireless Installation

    • Operations cannot be guaranteed when used with access points that do not have Wi-Fi® certification� • A wireless LAN access point is required to connect the MultiBoard to the Internet using a wireless LAN� See the operation manual of your access point for setup�...
  • Page 20: General Settings

    3� Press the Enter button on the remote control to confirm selected input source� 4� Press the return key on the remote control to exit� NOTE! Here the Prestigio MultiBoard L-series interface is used for illustrations. Real appearance may vary. Please visit product support section on www.prestigio.com...
  • Page 21: Brightness Settings

    Quick Start Guide Prestigio MultiBoard Brightness settings 1� Press INPUT button on the remote control enter input settings menu� 2� Press button on the remote control to enter the brightness setting menu� 3� Press the Vol / Vol- button on the remote control to adjust the brightness�...
  • Page 22: Vga Channel Settings

    Quick Start Guide Prestigio MultiBoard VGA Channel settings 1� In VGA mode, press INPUT button on the remote control enter settings menu� 2� Press button on the remote control to enter the advanced settings menu� 3� Press the Vol / Vol- button on the remote control to adjust the parameter� 4�...
  • Page 23: Screen Settings

    Quick Start Guide Prestigio MultiBoard Screen settings 1� In Android mode, press INPUT button on the remote control enter settings menu� 2� Press button on the remote control to enter the advanced settings menu� � 3. Press the Vol / Vol- button on the remote control to adjust the parameter.
  • Page 24: Daily Care And Maitenance

    Quick Start Guide Prestigio MultiBoard 7. Daily care and maitenance CAUTION Always turn off the power switch and unplug the power cord before cleaning the unit� Cleaning Cleaning the screen and the unit • Gently wipe the screen and unit with a waterdampened cloth that has been thoroughly wrung�...
  • Page 25: Technical Specifications

    Quick Start Guide Prestigio MultiBoard 8. Technical specifications PMB728L750/ PMB514L550/ PMB254L650/ PMB514L650/ PMB514L700/ PMB728L860/ PMB721G980/ ARTICLE PMB000L750* PMB000L550* PMB000L650* PMB000L650* PMB000L700* PMB000L860* PMB000G980* 65" (FHD) 65" (UHD/4K) 86" (UHD/4K) 98" (UHD/4K) DISPLAY SIZE 55" (UHD/4K) 70" (UHD/4K) 75" (UHD/4K) DISPLAY...
  • Page 26 Quick Start Guide Prestigio MultiBoard PMB514L550/ PMB254L650/ PMB514L650/ PMB514L700/ PMB728L750/ PMB728L860/ PMB721G980/ ARTICLE PMB000L550* PMB000L650* PMB000L650* PMB000L700* PMB000L750* PMB000L860* PMB000G980* USB 3.0 x 6; USB 3.0 x 6; USB 3.0 x 6; USB 3.0 x 6; USB 3.0 x 6;...
  • Page 27: Troubleshooting

    Treat problems according to the information given in the table below� If problems still persist, call your dealer for service� The problems described below are not always caused by malfunctions� Check the MultiBoard again before having the MultiBoard serviced� Problem Possible solution •...
  • Page 28 Quick Start Guide Prestigio MultiBoard • Adjust chroma, brightness and contrast in the menu� Poor picture • Check the signal cable� Audio not working properly • Check the mute key� No sound • Adjust the volume� • Check the audio cable�...
