Summary of Contents for Prestigio TwinScreen 16

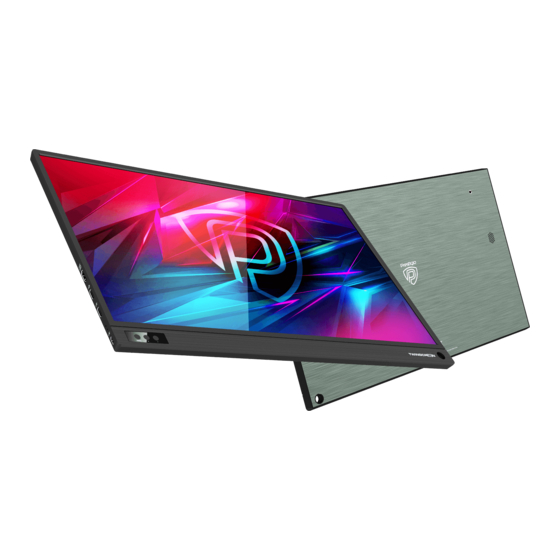

- Page 1 Portable Monitor TwinScreen 16 PPM101FHD16 User Manual Version 1.0...
-
Page 2: Introduction
Prestigio TwinScreen 16 Introduction The Prestigio Portable Monitor is a simple way to expand your laptop display screen or to increase the size of the display of your mobile device. Thanks to the monitor, you’ll be able to increase your productivity and improve your entertainment experience. The device is of a far more compact design compared to its desktop counterparts which makes it an ideal choice for working, for example, when you're not in the office. -
Page 3: Liability And Support
Prestigio offers no warranty as to the contents of this document including but not limited to the device merchantability and fitness for any particular use. -
Page 4: Applicable Standards
Prestigio TwinScreen 16 Applicable standards The device is type-approved with the EU Certificate of Conformity and complies with the following European Union Directives: Electromagnetic Compatibility Directive 2014/30/EU; • Low Voltage Directive 2014/35/EU. • The device has passed all evaluation procedures required by the Customs Union Regulations and conforms to the standards of the Customs Union member countries. - Page 5 Prestigio TwinScreen 16 The details of available certificates are described in Section 6 of this document. You can find copies of certificates and reports in the appropriate section at www.prestigio.com/certificates. ©2021 Prestigio...
-
Page 6: Limitations And Warnings
Prestigio TwinScreen 16 Limitations and warnings Prior to installation and operation of the device, read carefully the information contained in this section of the document. ATTENTION! The warnings, precautions, and instructions in this document may not cover all possible and hazardous situations. Please, use common sense when operating the device. - Page 7 Prestigio TwinScreen 16 ATTENTION! All products and mobile apps of the Company (including any future software and hardware of proprietary and third-party design) are not intended to be used for emergency response nor they can be used for extinguishing fire and/or accident damage control including,...
-
Page 8: Table Of Contents
Prestigio TwinScreen 16 Contents Introduction .................................. 2 Copyright ..................................2 Liability and support ..............................3 Applicable standards ..............................4 Limitations and warnings ............................6 Contents ..................................8 1. General description and characteristics ......................9 1.1. Purpose of the device ............................9 1.2. -
Page 9: General Description And Characteristics
The portable monitor offers high mobility and facilitates everyone’s routine not only by • enhancing viewing experiences but also by improving your lifestyle. Prestigio TwinScreen 16 is a lightweight 15.6 inch monitor with an IPS matrix. The IPS • panel provides a wide-angle view of 178°. -
Page 10: Functions Of Buttons, Connectors, And Indicators
Prestigio TwinScreen 16 – Assembly diagram and components Figure 2 1.2. Functions of buttons, connectors, and indicators 1. Key to enter the device configurations menu. 2. Adjustment of brightness/volume (+). 3. Adjustment of brightness/volume (-). 4. Monitor. 5. Speakers. 6. Mini-HDMI port: video and audio transmission. -
Page 11: Technical Specifications
Prestigio TwinScreen 16 10. Special hole. When the case is removed, this hole can be used to fit a pencil or a similar sized object for propping up your Prestigio TwinScreen 16. *Do not use the Micro-USB port to charge the device. -
Page 12: Product Bundle
Max. relative humidity in Up to 85% operation *Do not use the Micro-USB port to charge the device. 1.4. Product Bundle The Prestigio TwinScreen Product Bundle includes the following devices and components: Portable Monitor РРМ101FHD16 1 pce Mini-HDMI cable 1 pce... -
Page 13: Operating Instructions
• When the brightness and volume are adjusted above 80%, please, connect your Prestigio TwinScreen 16 to an external power source. • Not all laptop computers with USB-C port are able to work with Prestigio TwinScreen 16 with such a connection. It all depends on the USB-C port function of your laptop computer. -
Page 14: Compatibility With Devices
Compatible with devices on Android (version 7 and higher) or iOS (version 11 and later) operating systems. USB-C to USB-C USB-A to USB-C To connect an iOS device to the Prestigio TwinScreen 16, a Lightning to HDMI adapter is required (not included). Mini HDMI to HDMI Cable USB-A to USB-C... -
Page 15: Supported Devices And Models
• To achieve a HDMI connection, the Prestigio TwinScreen 16 should be connected to external power using a USB-C cable. • When the Prestigio TwinScreen 16 is not connected to an external power source, it is powered by the mobile phone battery. However, if the phone battery is discharged, it cannot supply power to the Prestigio TwinScreen 16, therefore, you should connect it to an external power source. -
Page 16: System Requirements
Razer Phone, Razer Phone 2 U Ultra ASUS ROG Gaming Phone See the updated list of devices on our web site at www.prestigio.com. 2.5. System requirements Minimum requirements: • OS Windows 7 with CPU Core 2 Duo 1.4 GHz • RAM 1 GB Recommended requirements: •... -
Page 17: Maintenance And Repair
Prestigio TwinScreen 16 3. Maintenance and repair The Prestigio TwinScreen 16 portable monitor requires no special maintenance during operation. However, to ensure its proper condition and reliable operation, we recommend you to do the following periodically: Observe the rules for using the device safely. -
Page 18: Warranty Statement
For warranty replacement, the device must be returned to the selling company along with the cash receipt. Warranties for the Prestigio products are granted only in the country of purchase. WARRANTY SERVICE PROCEDURE... - Page 19 Prestigio TwinScreen 16 DISCLAIMER The Prestigio brand products are NOT liable for free warranty service if the following failures or defects are found: Faults caused by force majeure, accidents, gross negligence, deliberate acts (omissions) • by the purchaser or third parties;...
- Page 20 Prestigio TwinScreen 16 NOTE The manufacturer does not produce equipment for “vitally critical” applications. The “vitally critical” devices are life support systems, medical equipment, implantation-related medical devices, commercial transport, nuclear equipment or systems and any other applications where equipment failures can be harmful or lethal to people or can cause damage to property.
-
Page 21: Storage, Transportation, And Disposal
Prestigio TwinScreen 16 5. Storage, transportation, and disposal The device is not intended for use in zones with safety and occupational hazards. Long-term storage is permitted only in the original packaging in dark, dry, clean, well-ventilated closed spaces. Similar regulatory requirements apply to storage conditions at the supplier’s warehouse. -
Page 22: Miscellaneous Information
220101, Minsk, pr-t Rokossovskogo, 136A, room 2 Contact information 8-820-049-100-27 The service facility addresses can be found at www.prestigio.ru/use/www.prestigio.by/use in Support section, or call the common technical support number (8-800-551-54-94 (Russia) or 8-820-032-100-34 (Belarus) – toll free) to receive additional information. - Page 23 Prestigio TwinScreen 16 Available certificates and declarations of conformity Certificate of Conformity EEU RU C-CY.HB29.B.00977/20 series Certificates RU No 0293642 of 29.10.2020 Certificate of Conformity EEU N RU Д-CY.HB11.B.21100/20 of Declarations 19.10.2020 ©2021 Prestigio...
-
Page 24: Troubleshooting
Prestigio TwinScreen 16 7. Troubleshooting The table below lists the common errors and problems that may occur when connecting and configuring the portable monitor. Table 5 – Typical errors and remedies Problem Possible cause Solution Power LED is not lit. - Page 25 Prestigio TwinScreen 16 Problem Possible cause Solution The monitor inadvertently 1. Micro cracks in the Contact a special service turns off or turns on after a board. facility. delay. 2. Faulty IC. ©2021 Prestigio...
-
Page 26: Glossary
Prestigio TwinScreen 16 8. Glossary IPS type matrix A variation of TFT technology to build LCD screens. DisplayPort Signaling interface standard for digital monitors. protocol Thunderbolt Hardware interface used to connect various peripherals to a computer. protocol ©2021 Prestigio...
