Escene WS118 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Escene Communication
E
s
c
e
n
e
C
o
m
m
u
n
E
s
c
e
n
e
C
o
m
m
u
n

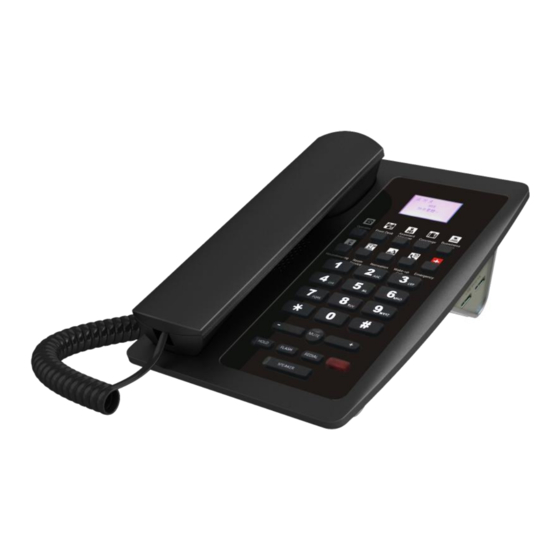

WS118 IP Phone
User Manual
i
c
a
t
i
o
n
C
o
.
L
t
d
i
c
a
t
i
o
n
C
o
.
L
t
d
www.escene.cn/en/
WS118 IPPhone

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS118 and is the answer not in the manual?

Questions and answers

Related Manuals for Escene WS118

Summary of Contents for Escene WS118

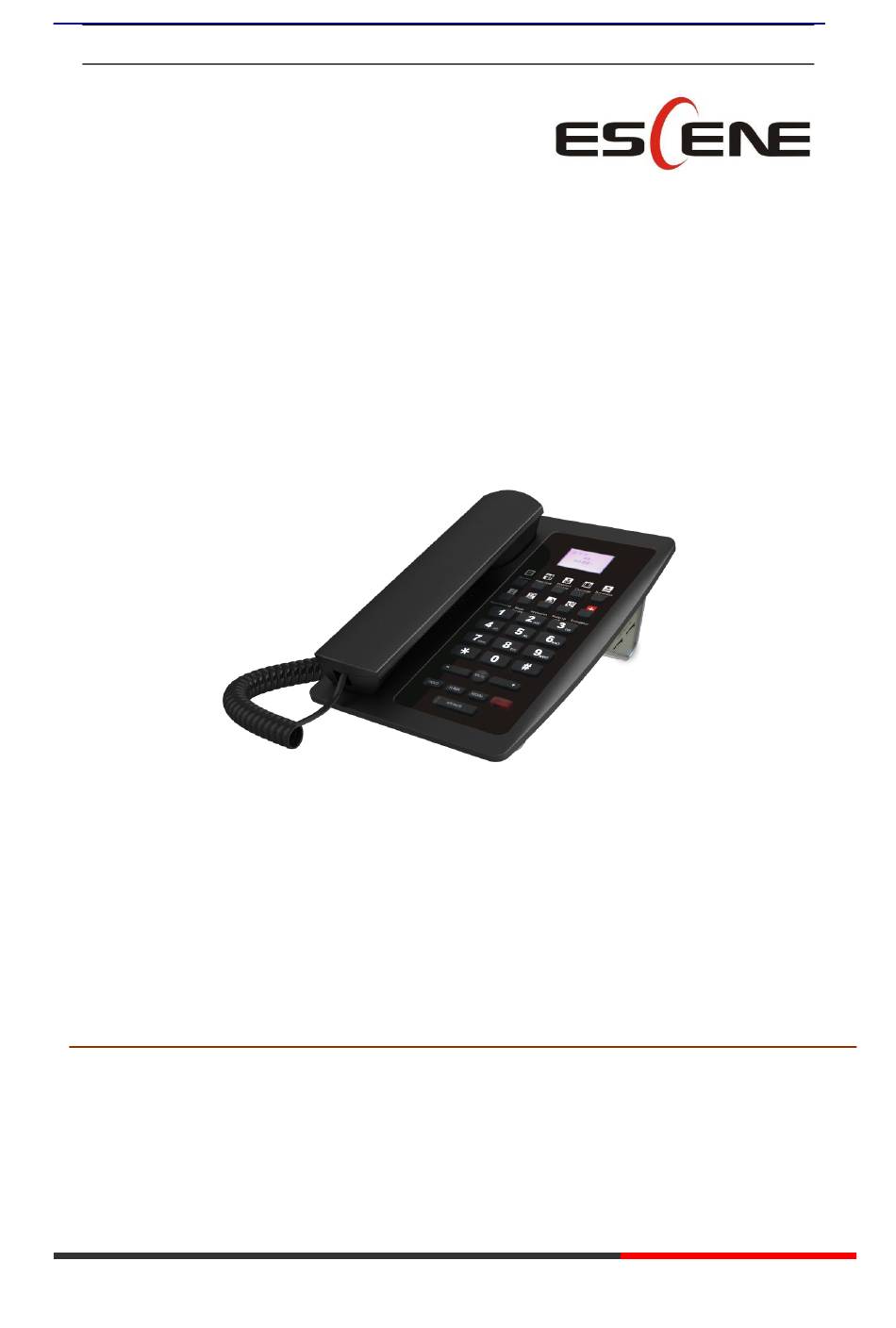

  • Page 1 WS118 IPPhone WS118 IP Phone User Manual www.escene.cn/en/ Escene Communication...

  • Page 2: Table Of Contents

    WS118 IPPhone Tables of Contents 1.Getting Started ..........................1 Technical Features ........................1 2.Phone overview ..........................3 3.2 Phone Screen Display Features ................... 4 3.3 Basic Network Settings ......................5 3.4 SIP Account Settings ......................7 3.5 Basic Features ........................8 3.5.1 Making a Call ......................
  • Page 3 WS118 IPPhone 7.3 Advanced ........................27 7.3.1 Audio ........................27 8 Phone Book ........................29 8.1 Group ..........................29 8.2 Contact ..........................29 8.3 LDAP ..........................30 8.4 Blacklist ..........................31 9 Phone Maintenance ........................32 9.1 Basic ..........................32 9.1.1 HTTP Upgrade .......................

  • Page 4: Getting Started

    WS118 IPPhone 1.Getting Started Technical Features Item Technical Features Language English, Chinese, French, Italian, Russian, Spanish, Turkish etc Line Function Programmable Keys、Line Keys、Number Keys and Function Keys Keys Voip SIP 2.0 Protocol Network HTTP、BOOTP、FTP、TFTP、IEEE 802.1Q Protocol Codec G.723.1 (5.3K 6.4K b/S)、G.729 A (8Kb/s)、G.711 A/U (64Kb/S)、G.722(64Kb/S) TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms)
  • Page 5 WS118 IPPhone Storage Temperature: 0℃ ~ 60℃ Specification Operating Humidity: 10%~90% Operating Humidity:：10% ~ 90% www.escene.cn/en/ Escene Communication...

  • Page 6: Phone Overview

    WS118 IPPhone 2.Phone overview The unit keys and hardware www.escene.cn/en/ Escene Communication...

  • Page 7: Phone Screen Display Features

    WS118 IPPhone Hardware component instructions of the WS118 IP Phone are: ITEM DESCRIPTION LCD Screen Displayed information about calls, messages, soft keys, time, date and other relevant data: • Call information — caller ID, call duration • Icons (e.g. • Missed calls or second incoming caller's information •Time and date...

  • Page 8: Basic Network Settings

    WS118 IPPhone ITEM DESCRIPTION TIME & DATE TIME & DATE display in the middle of the screen. Auto-Answer icon Enable this feature, it will display "AA" at the top right corner. Missed Call Missed Call under the TIME in the middle of screen...
  • Page 9 WS118 IPPhone ①When the AP-3 is set up wireless parameters by the administrator, you can long press "ok" to enter the password to connect it. ②If you don’t use EWFC rapid deployment, you can According to the normal method for manual...

  • Page 10: Sip Account Settings

    Tips "Network is changed, press OK reboot " 3.4 SIP Account Settings WS118 IP phone makes calls based on sip accounts, It can support Single account or Multi-account, Each account can be configured to the different SIP server. If you want to…...

  • Page 11: Basic Features

    WS118 IPPhone --2) Select “Enable account” > “Disable”； --3) Select “Save” to saves settings 3.5 Basic Features 3.5.1 Making a Call Here are some easy ways to place a call on SayHi IP Phone: Then… If you want to... --1) You can hear dial tone;...

  • Page 12: Using Hold And Recover (Switch Calling Line)

    WS118 IPPhone Hang up one call, but --Press End, preserve another call on -or refer to the above three methods the other line 3.5.4 Using Hold and Recover (Switch Calling Line) You can hold and resume calls. You can take a call in one line at anytime, and the other lines would be hold.

  • Page 13: Web User Interface

    WS118 IPPhone --1 ） Press Voice Mail Voice Mail button(There has Voice Mail icon ,without is --2）Enter the User Password --3）It will login into the voice mail server. You need to follow the IVR to do it. 4. WEB User Interface In addition to the phone user interface, you can also customize your phone via web user interface.

  • Page 14: Network

    WS118 IPPhone System Information The status with Phone Model, Software Version, Hardware Version, Hardware ID, Kernel Version, Auto-Provision Server URL, TFTP Server IP. 4.1 Network 4.1.1 Wi-Fi Setting www.escene.cn/en/ Escene Communication...
  • Page 15 WS118 IPPhone 4.1.2 IP Setting ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP DNS Settings Select the DNS mode that you want. 4.1.3 Advanced VPN Setting When using VPN Setting option, you can set several parameters as follow: www.escene.cn/en/...
  • Page 16 WS118 IPPhone VLAN Setting Enable VPN You can enable/disable VPN for phone and pc. VPN Type: Choose the appropriate type of VPN. VPN Server Addr VPN server's IP. VPN User Name VPN user's name VPN Password A password be used for authentication OPEN VPN Upload the *.ovpn file to the phone...
  • Page 17 WS118 IPPhone Telnet Port The default Telnet port is 23,if you want to change it(for example change it to 2003). You must input IP and Telnet port to login the manage page (for example telnet 192.168.0.200:2003).It will take effect on next reboot.
  • Page 18 WS118 IPPhone Paging Setting Paging Setting(NOTE: This feature priority is followed the serial number, In other words, "paging 1" is the highest priority) Paging1 Enable/Disable Paging feature. Group IP and Port Group IP and Port with Paging. Socket5 Proxy Server...

  • Page 19: Sip Account

    WS118 IPPhone 5 SIP Account 5.1Basic Choose one Account, you will find the following parameters: ITEM DECSRIPTIO Enable You can choose on/off to enable/disable the line. Account Mode You can choose VOIP/PSTN, but this model nonsupport PSTN, If you need, Pls contact us to buy another model that can supports PSTN.
  • Page 20 WS118 IPPhone Amount Of Line The line key of account used, default is 2 Account Used Display Name It is showed as Caller ID when making a phone call Username It is a username provided by SIP Server Authenticate Name...

  • Page 21: Advanced

    WS118 IPPhone 5.2 Advanced ITEM DECSRIPTIO Advanced Do Not Disturb Enable/Disable Do Not Disturb Anonymous Call Enable/Disable anonymous call. Anonymous Call Enable/Disable anonymous call rejection. Rejection Use Session Timer Enable/Disable refresh session function. The device will send an Invite packet to refresh the session during a call if it enable.

  • Page 22: Programmable Keys

    WS118 IPPhone Call Method This method include SIP and TEL. DNS-SRV Enable/Disable DNS-SRV. Allow-events Enable/Disable Allow-events. Registered NAT Enable/Disable Registered to NAT UDP Keep-alive The phone periodically sends a UDP packet to keep the port active and to Message avoid the server to shut down the port UDP Keep-alive Default is 30 second.

  • Page 23: Phone Setting

    WS118 IPPhone 7 Phone Setting 7.1 Basic 7.1.1 Time Settings ITEM DECSRIPTIO Time Settings Set Time Mode Include SNTP/SIP Server/PSTN/Manual SNTP Server You can select in the list or input owner server address. Update Interval The update interval with SNTP.

  • Page 24: Backlight

    WS118 IPPhone Time Zone-GMT You can select different time zone for the phone Manual Setting Setting time manually. 7.1.2 Backlight Back Light The backlight of the phone LCD. 7.1.3 Keyboard Lock Keyboard Lock Enable/Disable keyboard lock, you can lock: MENU Key, FUNCTION Key., ALL Keys, LOCK all keys but auto Answer.

  • Page 25: Volume Setting

    WS118 IPPhone and the total sizes must less than 150k. 7.1.5 Volume Setting ITEM DECSRIPTIO Basic Select Country Select the country dial tone. Default is United States. Ring Volume The ring volume default is Lv3, the range is 0~9. Handset Volume The handset volume default is Lv5, the range is 1~9.

  • Page 26: Features

    WS118 IPPhone 7.2 Features 7.2.1 VoIP Call Forward ITEM DECSRIPTIO Always All ways transfer the call to others. If Busy If the phone was busy working, the call will be transfer to others. If No Answer If the phone was no answer, the call will be transfer to others.

  • Page 27: Hotline Function

    WS118 IPPhone 7.2.4 Hotline function Hot Line function When you pick up the handset, it will dial out with the hot number. Hot Number Input the number what you want to. 7.2.5 Auto Answer Default value is on, Values can be changed accordingly。...

  • Page 28: Other Features Settings

    WS118 IPPhone 7.2.8 EP+ EP+ options are for the users who download the EP+ application on mobile phone. After Completing below settings, EP+ will be activated. For more details, please refer to www.escene.cn/en 7.2.9 Other features settings For other features such as call waiting, DTMF etc.
  • Page 29 WS118 IPPhone ITEM DECSRIPTION Call Waiting When there's coming a call or the phone is talking, the second call will be in the queue. Call Waiting Tone Select the frequency with the tone when call waiting. DTMF The DTMF transmitted mode, include RFC2833,Inband,SIP Info, Auto www.escene.cn/en/...

  • Page 30: Advanced

    WS118 IPPhone 7.3 Advanced Audio 7.3.1 ITEM DECSRIPTIO Audio Codec Use the navigation keys to highlight the desired one in the Enabled/Disable Codes list, and press the to move to the other list. Jitter Buffer The type of Jitter Buffer is Adaptive or Fixed, default is adaptive.
  • Page 31 WS118 IPPhone 7.3.2 Dial Plan If you want to setup a dial plan, you can click "Dial Plan" ITEM DECSRIPTIO Send Key Select the default send key mode you want to use. Dial Length Enable this feature will limit the dial length. Default is 25.

  • Page 32: Phone Book

    WS118 IPPhone download the specific document. HTTP://www..cn/en. 8 Phone Book The phone book including Group, Contact, LDAP and Ban list, please review the following for more details: 8.1 Group You can add, edit and delete group in a phone book on this web page.

  • Page 33: Ldap

    WS118 IPPhone If you want to add a Contact, you just ought to click ‘Add Contact’ . You can edit an existed Contact by click You can delete an existed Contact by click , if you want to delete all Contacts, you just ought to click ’Delete All Contact’.

  • Page 34: Blacklist

    WS118 IPPhone 8.4 Blacklist You can add, edit and delete contact in a Ban List on this web page . www.escene.cn/en/ Escene Communication...

  • Page 35: Phone Maintenance

    WS118 IPPhone If you want to add a Ban List, you just ought to click ‘Add Ban List’. You can edit an existed Ban List by click You can delete an existed Ban List by click , if you want to delete all Ban List, you just ought to click ’Delete All Ban List’.

  • Page 36: Ftp Upgrade

    WS118 IPPhone Select a File Browse the software/kernel/configuration file which you need to upgrade from HTTP Software Used for upgrading the software of the phone Upgrade Kernel Upgrade Used for upgrading the kernel of the phone Configuration You can used upload/download to upload/download the configure file of...

  • Page 37: Tftp Upgrade

    WS118 IPPhone Filename Downloading from FTP server Username Providing by FTP server Password Providing by FTP server Software Upgrade Used for upgrading the software of the phone Kernel Upgrade Used for upgrading the kernel of the phone Configuration Used for updating/backup to update/backup the configure file of the...

  • Page 38: Default Setting

    WS118 IPPhone NOTES: It's not necessary to input filename when doing backup Configuration, Phone Book, EXT Module. 9.1.4 Default Setting You can load the phone to the factory default setting in default setting option. Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot.

  • Page 39: Auto Provision

    WS118 IPPhone 9.2.2 Auto Provision When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP,HTTP,HTTPS,FTP, server. For the detailed information about auto provision, you can find it in the official website: HTTP://www..cn/en...

  • Page 40: Security

    WS118 IPPhone Auto Download Personal Used for auto download personal phonebook from server Phonebook Booting Checked Used for checking the auto provision when phone booting Disable the phone while Enable/Disable the booting checking feature. booting checking Auto Provision Frequency Used for setting the time interval for auto provision...

  • Page 41: Ip Strategy

    WS118 IPPhone 10.3 IP Strategy You can use IP Strategy feature to make a list which can be set to only allow the incoming call on the list. e.g. As following picture you can see it has 192.168.0.248 in the list. When you open this feature.
  • Page 42 WS118 IPPhone www.escene.cn/en/ Escene Communication...
