Concepts Installation Manual
Fixed Height Signage Installation
1. Verify that black square collars are mounted in the 2"
square holes in the unit top. If they are not, locate them
in the crate and place them back in the holes in top.
2. Make sure the push pins are removed from the mounting
brackets in the bottom of the base.
3. With a person supporting each post of the signage, pick
up and hold vertically over top of the collared holes in
top.
4. If electrical cord is coming out the bottom of one of the
posts, lower it through the collared hole.
5. Next, lower signage posts down through collared holes
in top.
6. Secure in place by sliding push pin through bracket and
post.
7. If electrical cord is present, plug into the outlet in the
base.
10
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com

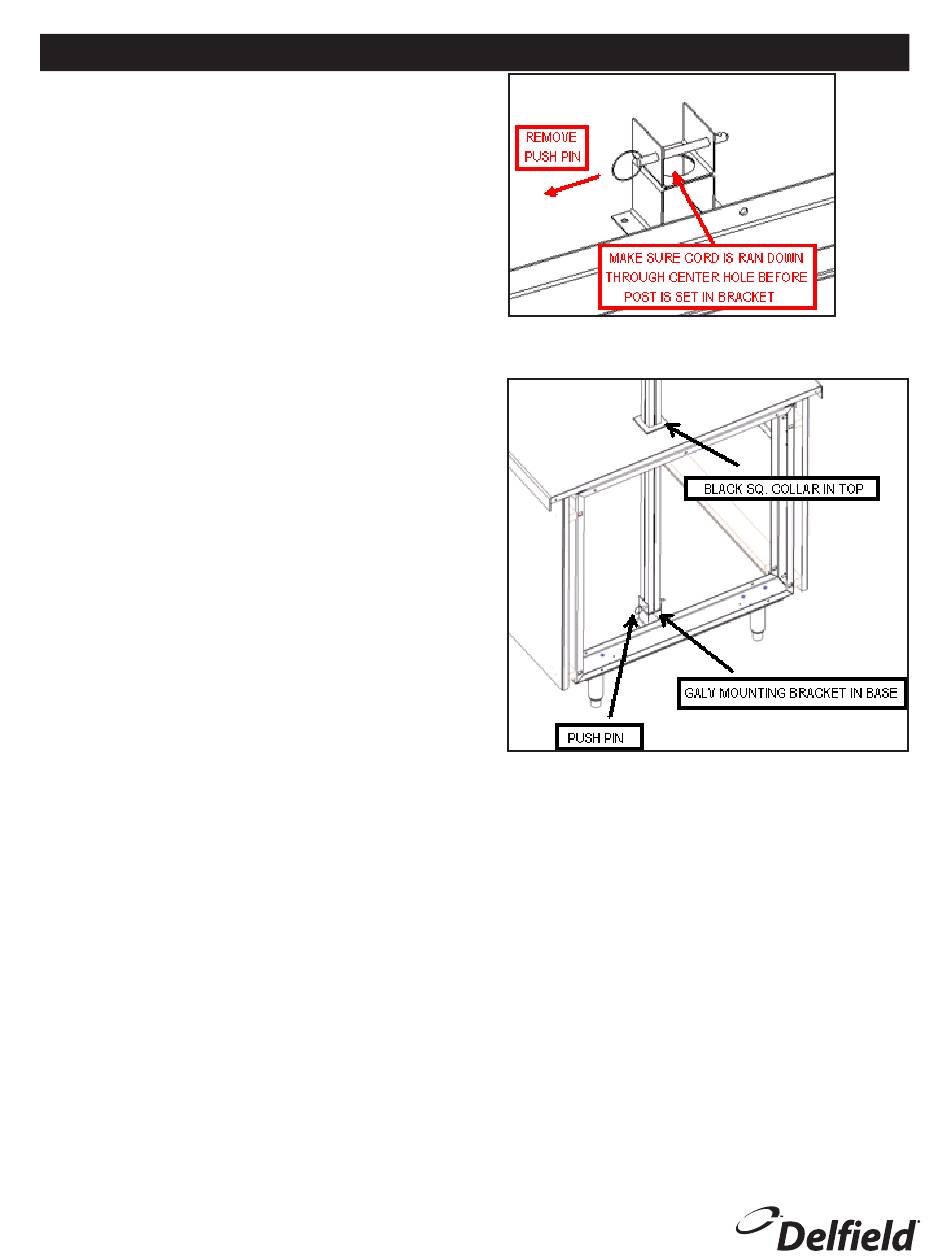

Prepare base.
Signage post installed in base.
