Delfield F14EI232 Specifications

Short Form Specifications
Exterior top is one-piece 16-gauge stainless steel, with integral
2.12" (5.4cm) square nosing on front and 4" (10.1cm) high by 2.00"
(5.1cm) thick backsplash on rear. Interior sides are 22-gauge stain-
less steel.
Top to have (2) to (6) 11.87" x 19.87" (30.2cm x 50.5cm) openings.
Infinite controls for individual 6.25" (15.9cm) deep wells are locat-
ed below openings. Controls are mounted on the front edge of
8" (20.3cm) wide stainless steel plate shelf. Heating elements for
each well are rated at 1000 watts for 208V or 1200 watts for 230V.
Manual fill faucet that extends 2.5" (6.4cm) above backsplash is
standard.
Lower portion of unit to have 22-gauge stainless steel open shelf.
Electrical connections are 208/230V, 60 Hertz, single phase.
Unit must be hard wired.
Unit is mounted on 6.13" (15.6cm) high adjustable stainless steel
legs.
NOTE: Model F14EI hot food tables are designed for wet or
dry operation and is equipped with 1/2" drain(s), manifold and
gate valve. Drains are located in the lower left front corner 25"
(64cm) off the floor and plumbed to a gate valve on right.
Optional Accessories & Modifications
906A Stainless steel end
505B Stainless steel back
906E Laminate end
505A Laminate back
1030A Cutting board (.5" x 10" composite orpolyethelene)
726A Dry drawers — 19"
726B Dry drawers — 27"
726C Dry drawers — and 32"
726D Dry drawers — and 24"
216 *Three phase electrical system
*Inclusion of this option will alter the
electrical specifications of the unit.
¤
The Delfield Company, P.O. B ox 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.

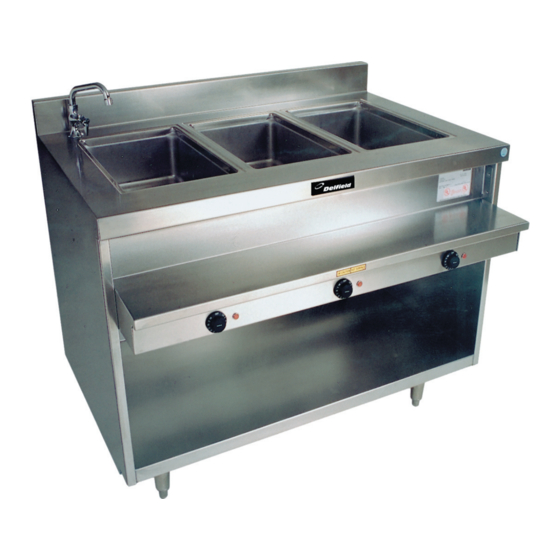

31.5" (80cm) Deep Electric Hot Food Tables — Individual Wells
PROJECT
ITEM #
QUANTITY
APPROVAL
F14EI
Model F14EI348
DATE
