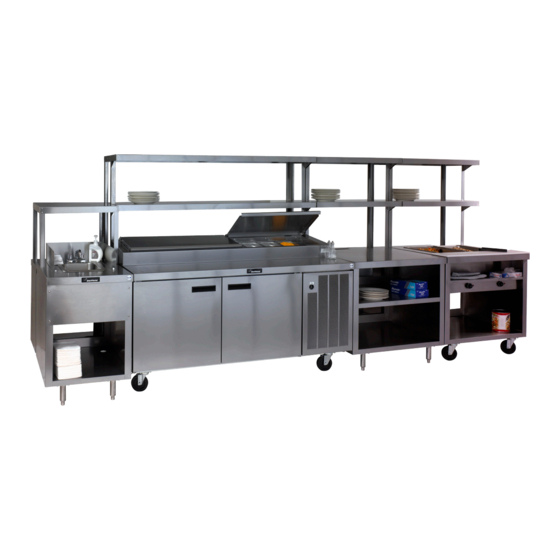

E-Chef™ Series
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all
components immediately. See page 2.
Delfield
™
Effective December 2007
®
