Delfield MHRI1-G Specifications

MERIDIAN SERIES
Heated Roll-Ins
MODELS:
 MHRI1-S Single section
Solid full height door
 MHRI1-G Single section
Glass full height door

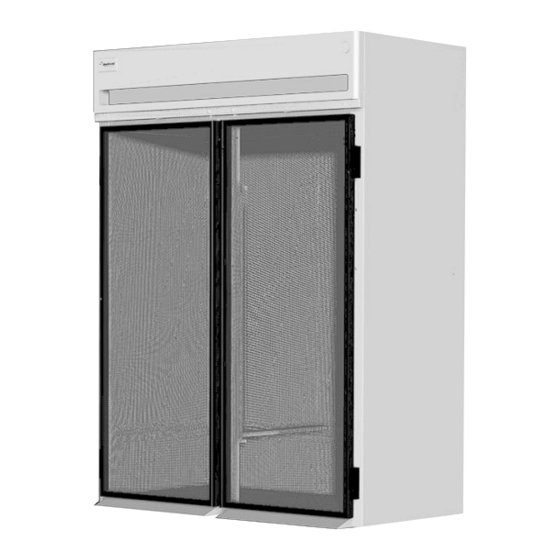

MHRI2-G
SPECIFICATIONS
Exterior: Cabinet front and shroud shall be 22-gauge
stainless steel. Exterior sides shall be aluminum. Facing
of shroud shall be easily removable without the use of
tools.
Cabinet interior shall be anodized aluminum. Bottom
& top of liner shall be die-stamped to provide radius
corners and a recessed bottom. Cabinet shall be
fully insulated with high-density foamed in place
polyurethane.
Doors: Solid doors shall have a 22-gauge stainless steel
exterior & anodized aluminum interior liner. Doors shall
be fully insulated with high density foamed in place
polyurethane. Each door shall have two self-closing,
cam-lift style hinges. Doors shall be easily removable
without use of tools. Door gaskets shall be magnetic
snap-in style to allow simple replacement. Door handles
shall be recessed.
®
 MHRI2-S
 MHRI2-G
STANDARD FEATURES
• Built in door locks
• Durable stainless steel doors and shroud, for lasting good
looks
• New high-density foam insulation cuts energy costs
• Big, easy grip handles are easy to find, don't intrude into
kitchen traffic
• Attractive aluminum side panels are easy to clean and
corrosion resistant
• Heavy-duty hinges with stay open feature
• Heating system is located outside the food zone, more
space for product storage
• Easy to read dial thermometer
• Tri seal door gaskets lower energy costs with a unique
insulating design
• Aluminum interior stands up to food acids without
corroding
• Lots of interior storage space for the money
Glass doors shall be constructed with a combination of
extruded aluminum and PVC and are provided with a
magnetic gasket and shall utilize insulated double-pane
construction. Glass doors shall be provided with self-closing,
cam-lift style hinges, and shall be easily removable without
the use of tools. Mechanical controls shall be located behind
a removable shroud facing.
Dual Voltage Models Only: Electrical connections shall
be 115/208-240 volt, 60 hertz, single phase, and must be
hard-wired to the junction box located on top of the unit.
Heating Assembly: Cabinets to be designed to maintain
temperature up to 200ºF. Fin strip heating element. High
speed blower to provide uniform airflow in cabinet 3ºF
variability. Removable/replaceable heating system. No
exposed elements inside cabinet. Fan and heating elements
service accessible without tools. Temperature to be
980 S. Isabella Road Phone: 800-733-8948
Mt. Pleasant, MI 48858 Fax: 800-669-0619
www.delfield.com Email: info@delfield.com
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
Two section
Solid full height doors
Two section
Glass full height doors
OPTIONS AND ACCESSORIES
 Stainless steel exterior sides
 Stainless steel interior
 Door and end laminate
 Stainless steel exterior back
 Digital thermometer
 220/50/1 electrical
controlled by an adjustable electronic thermostat. Night
switch in front.
NOTES: Bottom to be reinforced with 14-gauge
channels. All units to be supplied with easily attachable
16-gauge stainless steel ramps, one per door opening.
Wiper gasket shall be provided on bottom of door for
seal to ramp.
Approval _________________
Date____________________
