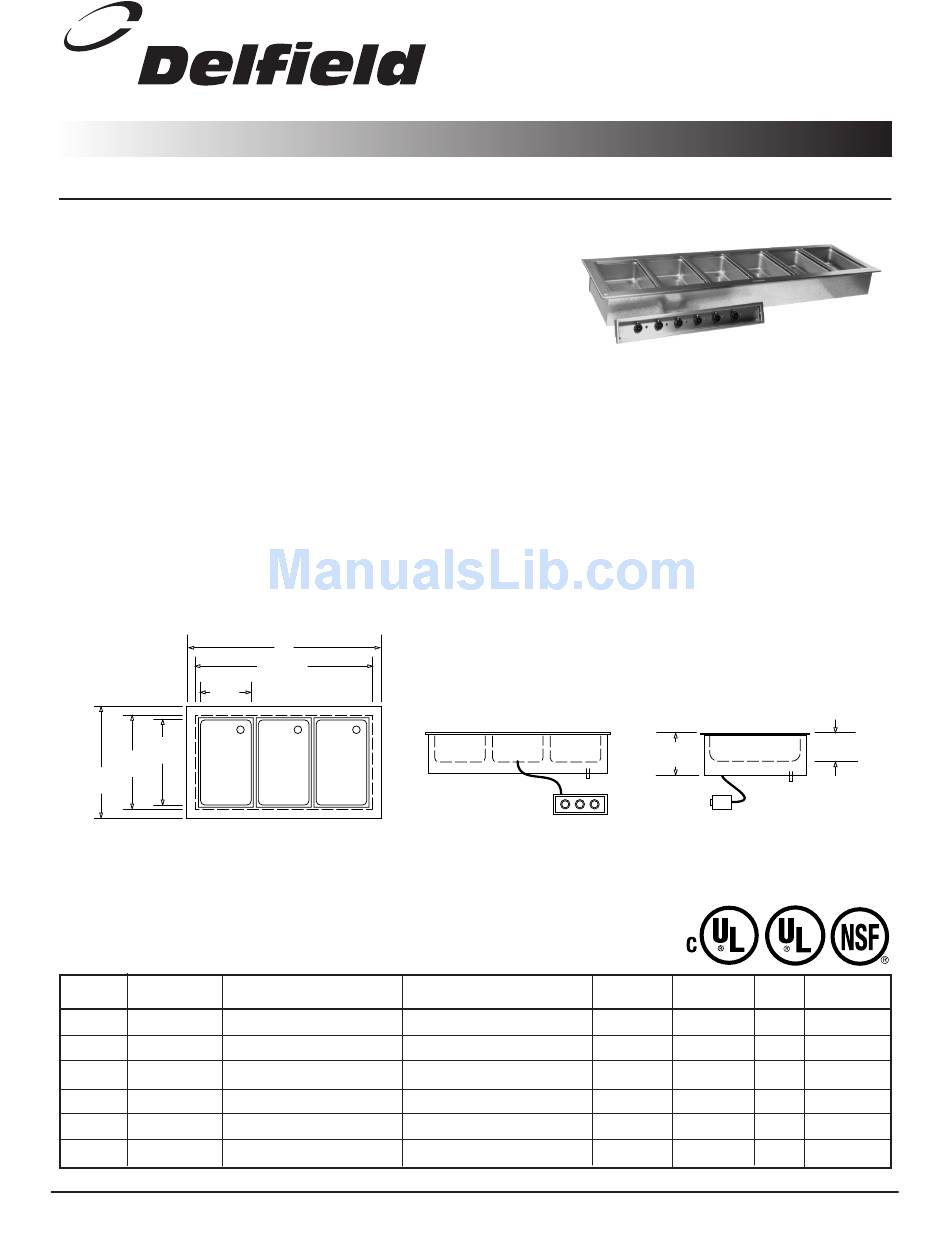

Delfield N8831 Specifications

Short Form

Specifications

Top shall be one-piece 18-gauge
stainless steel, with .60" (1.524cm)
overhang around perimeter and die-
stamped 19.87" x 11.87" (50.5 cm
x 30.2 cm) openings with depressed
edges. Formed well below each
opening shall be 6.25" (15.9 cm)
deep. Each well shall have an
individual infinate temperature control
and 1000 watt heating element
attached to bottom of well. Unit is
equipped with .5" drains, (one per
well located in right rear corner
.5" female N.P.T.) manifold and .5"
ball valve. Exterior housing shall be
20-gauge galvanized steel. Unit shall
be insulated on sides and between
wells with 1.00" (2.5 cm) fiberglass;
bottom shall have 2.00" (5.1 cm)
blanket insulation.
11.87"
30.2cm
19.87"
50.5cm
24.67"
62.66cm
25.87"
66cm
NOTE: NOT TO SCALE
TYPICAL PLAN VIEW
N8700-D MODELS
Mechanical Data — Standard Unit
MODEL
NUMBER A
N8717-D
17.88" (45.4cm) 16.88" X 25" (37.8cm x 58.4cm)
N8731-D
31.75" (80.6cm)
N8745-D
45.63" (115.9cm) 44.63" x 25" (108.3cm x 58.4cm)
N8759-D
59.5" (151.1cm) 58.5" x 25" (143.5cm x 58.4cm)
N8773-D
73.38" (186.4cm) 72.38" x 25" (178.8cm x 58.4cm)
N8787-D
87.25" (221.4cm) 86.25" x 25" (214cm x 58.4cm)
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.

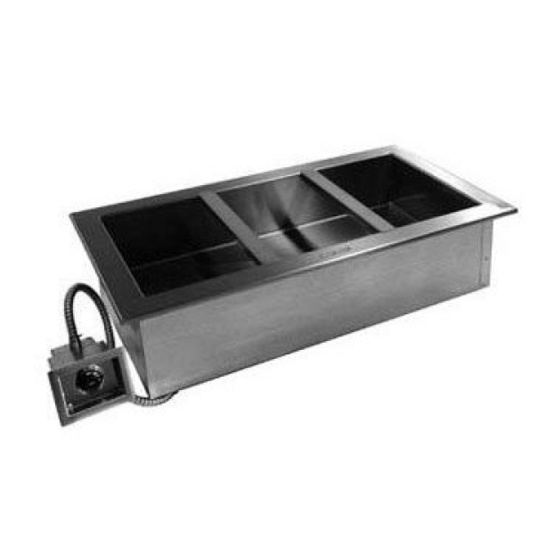

Drop-In Individually-Controlled Electric Food Wells
Unit shall have all individual controls
wired to a control panel for mounting
in counter or at a remote location; 4'
(1.2 m) length of wiring and conduit
are provided. Unit shall have a three-
wire electrical junction box to allow
hard-wiring at installation.
Optional Accessories and
Modifications:
• Adapter plates and bars
• Single- or double-service flip-up
sneezeguards
• Telescoping covers
• Omit drains and manifold
A
A – 1.20"
A – 3.05cm
COUNTER CUTOUT
DIMENSIONS
30.75" x 25" (73cm x 58.4cm) 4.62" x 10.31" (11.7cm x 26.2cm)
4.62" x 14.5" (11.7cm x 36.8cm)
4.62" x 18.69" (11.7cm x 47.5cm)
4.62" x 22.88" (11.7cm x 58.1cm)
PROJECT _____________________________________
ITEM NUMBER_________________________________
QUANTITY _______________ DATE ________________
APPROVAL____________________________________
NOTE: NOT TO SCALE
TYPICAL ELEVATION VIEW
N8700-D MODELS
CONTROL PANEL
CUTOUT DIMENSIONS
4.62" x 7" (11.7cm x 17.8cm)
4.62" x 27" (11.7cm x 68.6cm)
N8700-D
Model N8787-D
9.12"
23.16cm
NOTE: NOT TO SCALE
RIGHT END VIEW
ALL N8700-D MODELS
# OF VOLTS/HERTZ/
FOOD WELLS PHASE AMPS
1 115/60/1 8.3
2 115/60/1 17.0
3 208-230/60/1 15.7
4 208-230/60/1 20.9
5 208-230/60/1 26.1
6 208-230/60/1 31.3
6.25"
15.9cm
SHIP
WEIGHT
39 lbs/ 17 kg
119 lbs/ 54 kg
150 lbs/ 68 kg
170 lbs/ 77 kg
196 lbs/ 88 kg
232 lbs/ 104 kg
