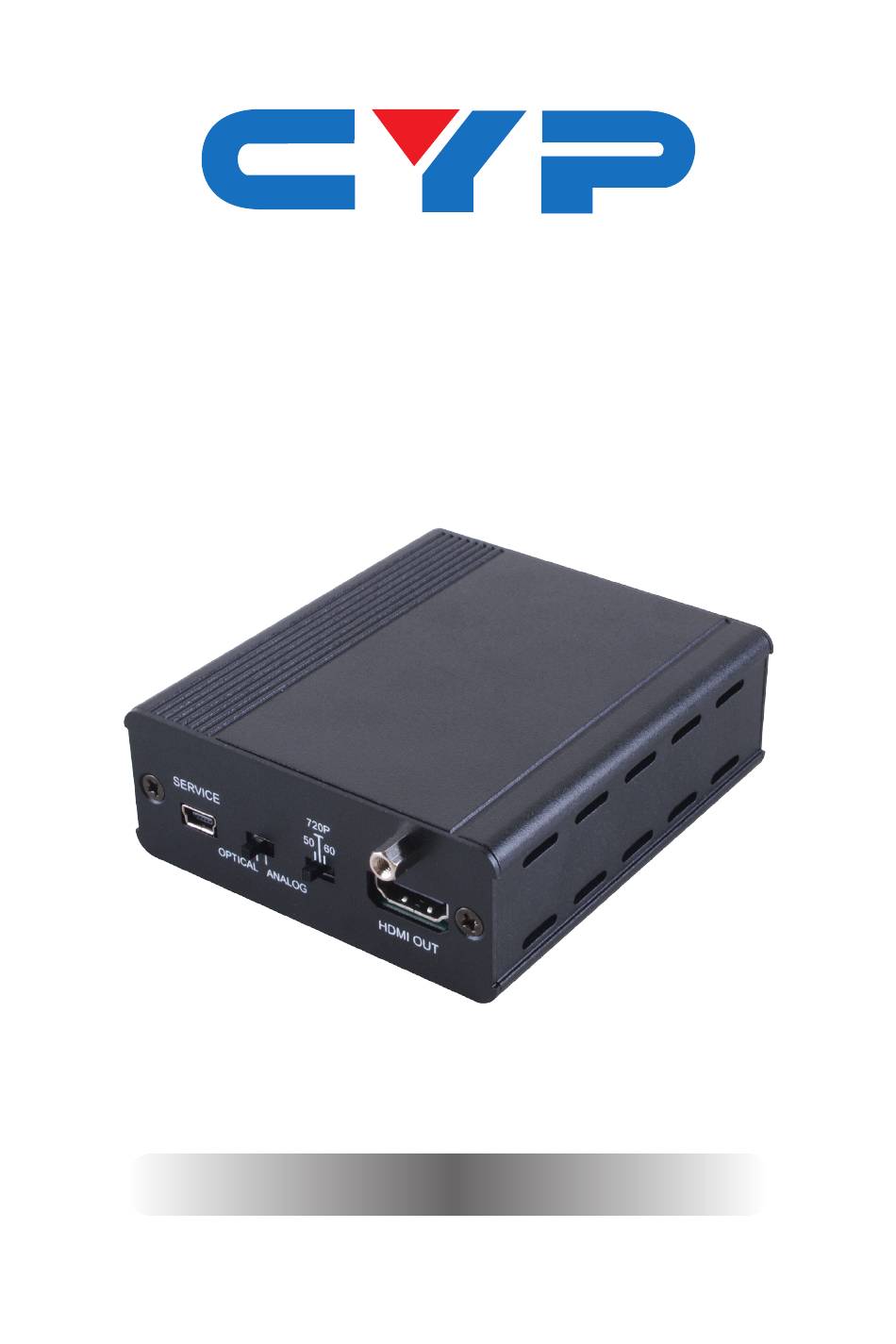

- Page 1 CLUX-11HB L/R & Optical Audio to HDMI Bridge Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements .......1 5. Features .............1 6. Operation Controls and Functions ..2 6.1 Front Panel ...........2 6.2 Rear Panel ..........3 7. Connection Diagram .......4 8. Specifications ...........5 8.1 Audio Specifications ......6 8.2 Input Audio to Output Audio Chart ..6... -
Page 6: Introduction
1. INTRODUCTION The L/R and Optical Audio to HDMI Bridge is designed for analog or digital audio signal to be send out through HDMI. Allowing immidiate plug-and-play enjoyment over HDMI audio without obstruct. When connecting to a HDMI display a blue screen will appear with a simple OSD to show the current input audio. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel ANALOG OPTICAL DC 5V POWER INPUT INPUT L/R: Connect from audio source equipment with L/R output with L/R RCA jack cables. INPUT Optical: Connect from audio soure equipment with optical output with optical cable. -
Page 8: Rear Panel

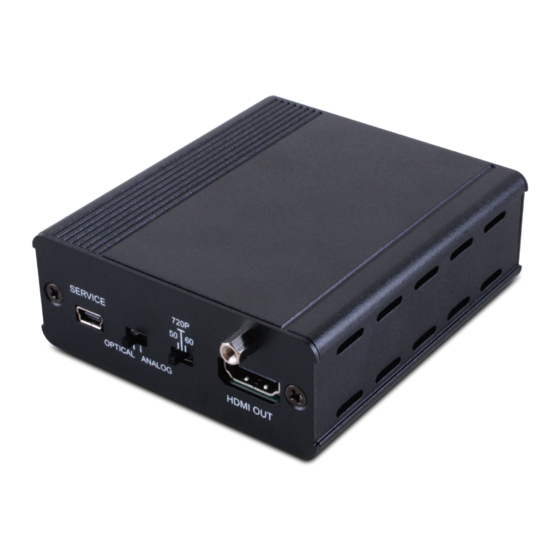

6.2 Rear Panel 720P SERVICE 50 60 OPTICAL ANALOG HDMI OUT SERVICE: This slot is reserved for factory firmware update only. OPTCIAL/ANALOG Switch: Switch to select input from Optical or Analog L/R. 720p 50/60 Switch: Switch to display output blue image with 720p/50 or 720p/60. OSD will display current input audio and output timing for 15 seconds. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Audio Amplifier Audio Player ANALOG OPTICAL DC 5V POWER INPUT 720P SERVICE 50 60 OPTICAL ANALOG HDMI OUT HDMI Equipped Deviec... -
Page 10: Specifications
8. SPECIFICATIONS Input port 1 x L/R (Analog Stereo 2RCA), 1 x Optical Output port 1 x HDMI Audio Input Sampling L/R: 48kHz Rate Optical: 32~ 192kHz, LPCM 2CH ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5V/ 2.6A DC (US/EU standards, CE/FCC/ UL certified) -
Page 11: Audio Specifications
8.1 Audio Specifications INPUT OUTPUT Output T.H.D+N Frequency Crosstalk Level Response Optical HDMI 2Vrms <0.01% ±1 dBFS >80 dB <−80dB ±10 0dBFS 1kHz/ 32KHz~ 192KHz Line HDMI 2Vrms <0.01% ±1 dBFS >80 dB <−80dB ±10 2Vrms/ 1KHz 8.2 Input Audio to Output Audio Chart Audio Input Input Format HDMI Audio Output... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130329 MPM-CLUX11HB...
