I/Q SIGNAL

■ General

D General description

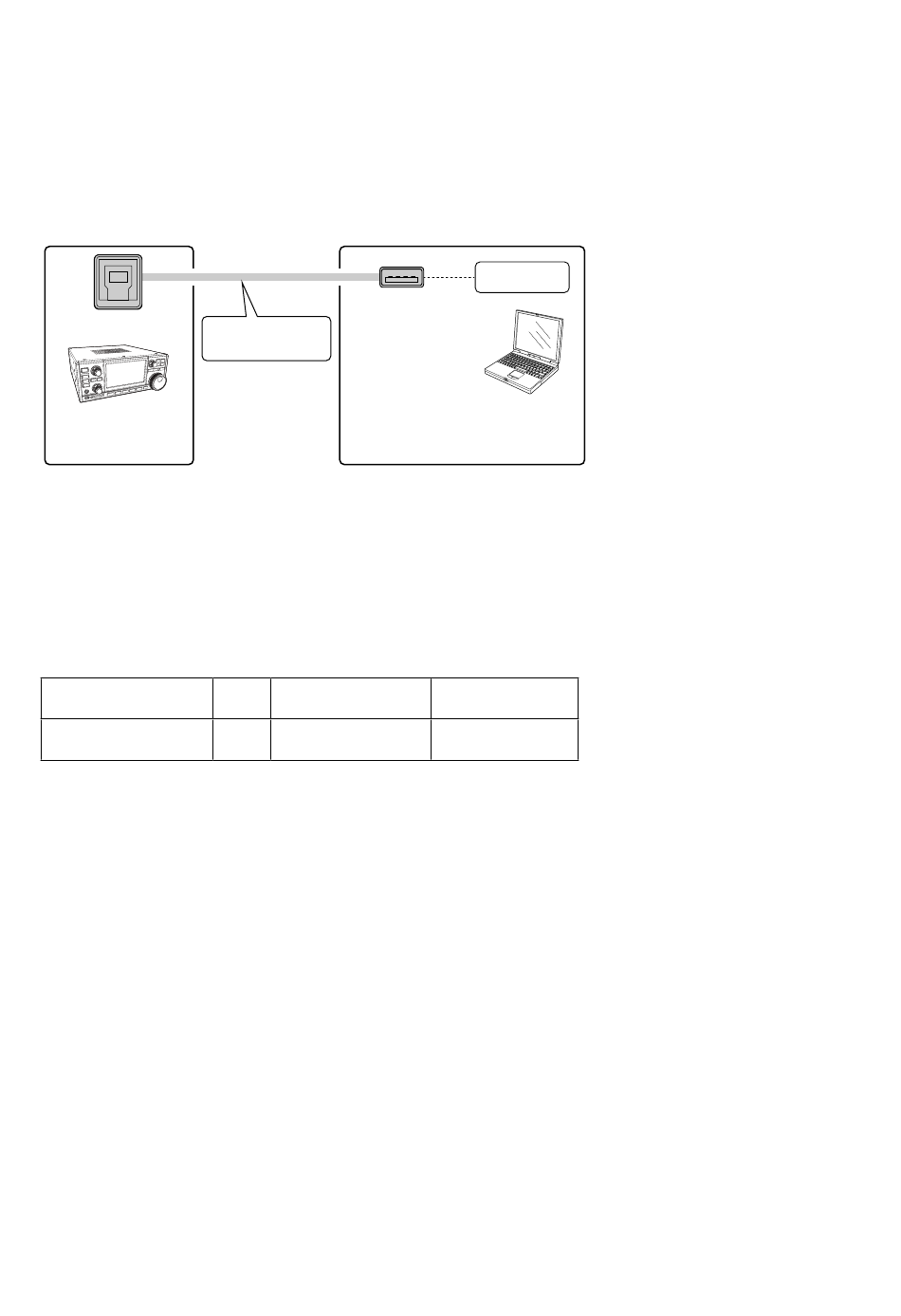

You can get I/Q signals from the [USB 2] port on the IC-7610 by connecting the IC-7610 and a PC, with a USB
cable. You can receive I/Q signals and control the IC-7610, through the USB cable.
[USB 2] port
• I/Q data
• Control command
IC-7610
(Ver.1.20 or later)
Requirement:
• IC-7610 firmware must be version 1.20 or later.
• Windows 7 /8.1/10 PC (32 bit or 64 bit)
• USB 3.0 or higher
USB I/Q Package for HDSDR
• USB I/Q driver (
You can download it from the Icom web site. (The software is commonly used with HDSDR*.)
*An SDR receive software (freeware). You can download it from: http://www.hdsdr.de/
I/Q signal specifications:
Sampling frequency
1.92 MHz
USB 3.0 cable
[USB] port
(USB 3.0)
PC
Windows 10
Windows 8.1
Windows 7
)
Bit
Signal Bandwidth
depth
16-bit 1.66 MHz
Driver
(32/64-bit)
(32/64-bit)
(32/64-bit)
Band (Main/Sub)
Main or Sub
(Selectable)
