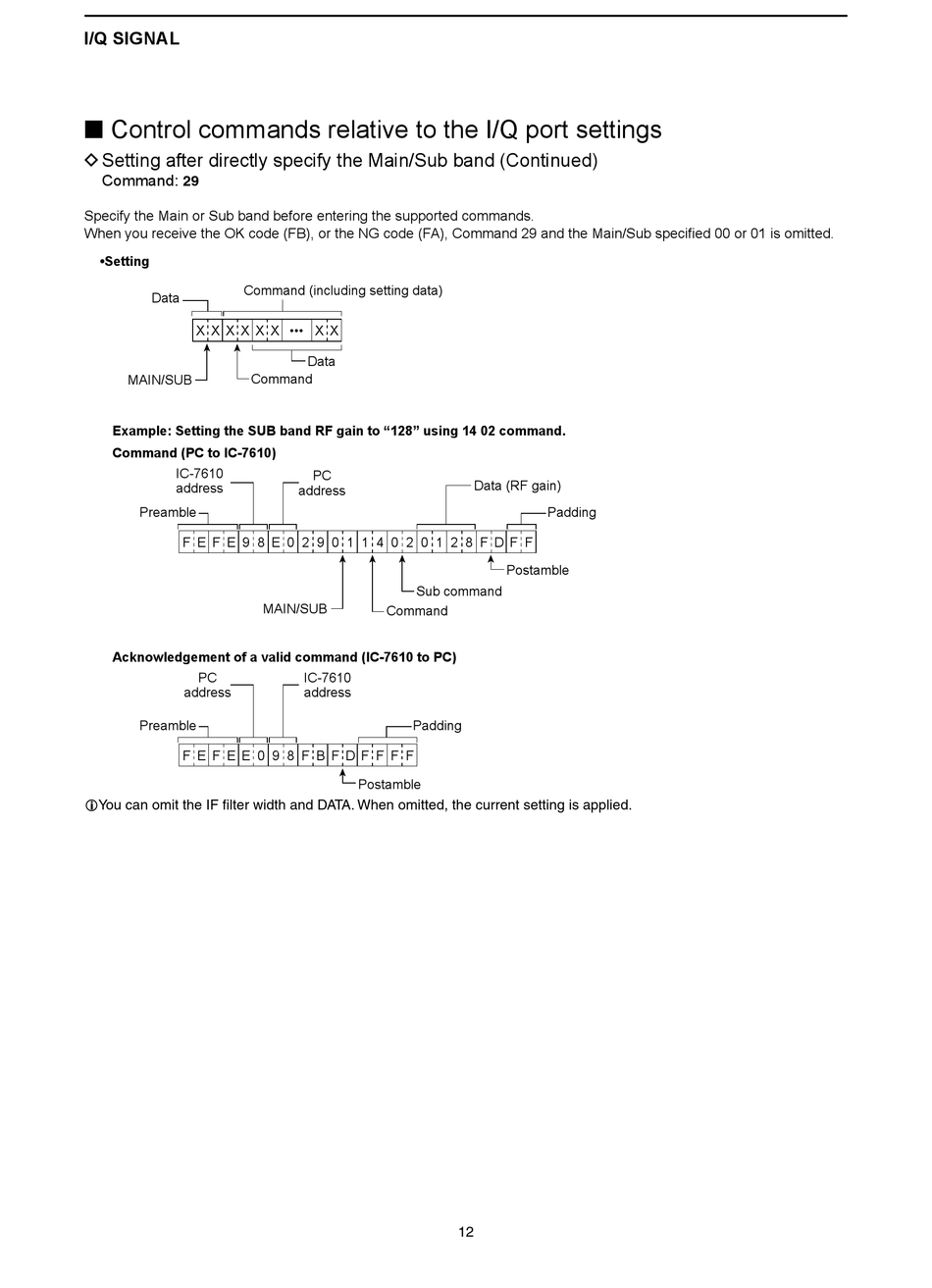

Icom IC-7610 Reference Manual page 12

I/Q SIGNAL
■ Control commands relative to the I/Q port settings
D Setting after directly specify the Main/Sub band (Continued)
Command:
29
Specify the Main or Sub band before entering the supported commands.
When you receive the OK code (FB), or the NG code (FA), Command 29 and the Main/Sub specified 00 or 01 is omitted.
•Setting
Data
X X X X X X
MAIN/SUB
Example: Setting the SUB band RF gain to "128" using 14 02 command.
Command (PC to IC-7610)
IC-7610
address
Preamble
F E F E 9 8 E 0 2 9 0 1 1 4 0 2 0 1 2 8 F D F F
Acknowledgement of a valid command (IC-7610 to PC)
PC
address
Preamble
F E F E E 0 9 8 F B F D F F F F
L You can omit the IF filter width and DATA. When omitted, the current setting is applied.
Command (including setting data)
••• X X
Data
Command
PC
address
MAIN/SUB
Command
IC-7610
address
Postamble
Data (RF gain)
Padding
Postamble
Sub command
Padding
