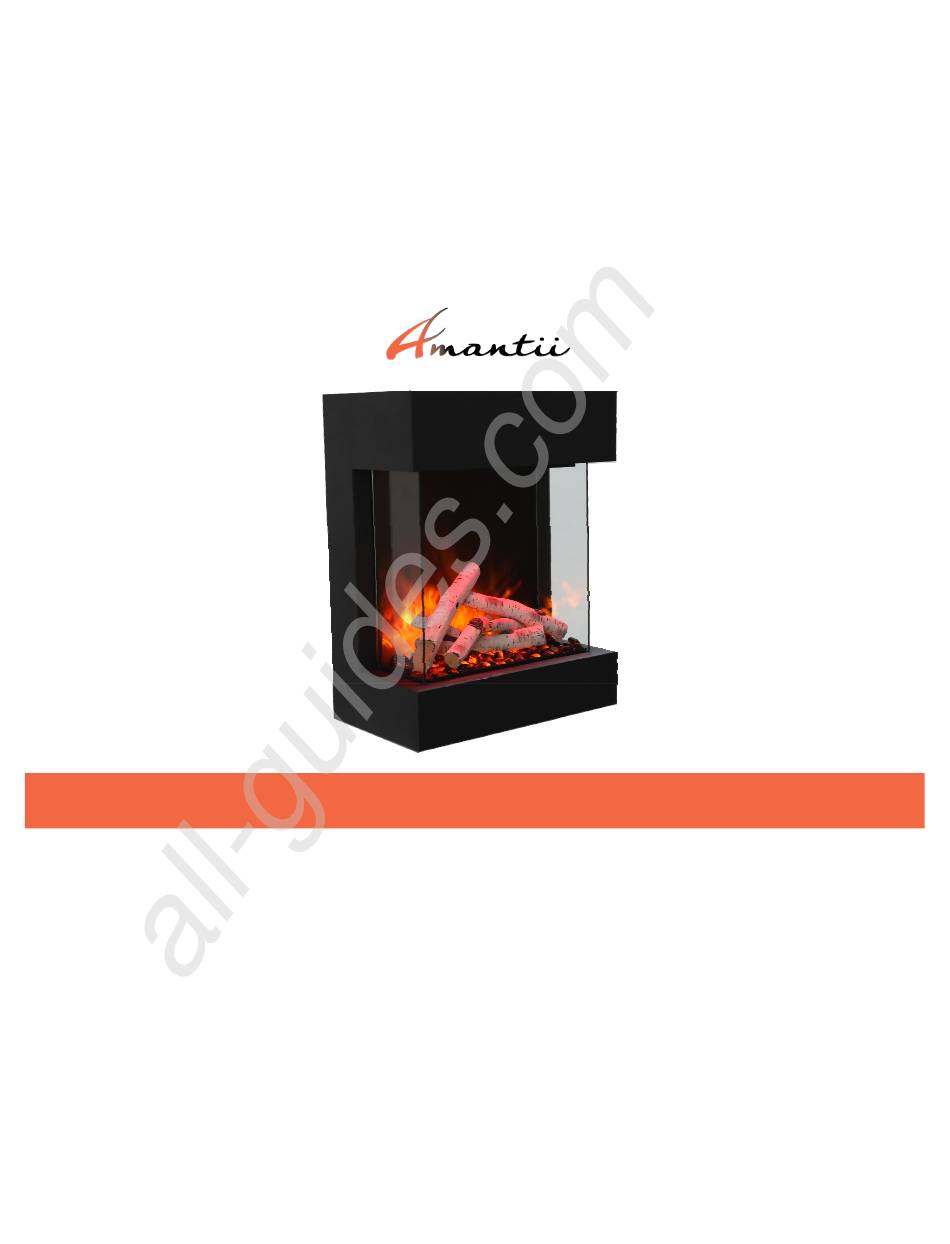

CUBE REPAIR GUIDE
CUBE‐2025WM

Advertisement

loading
Need help?

Need help?

Do you have a question about the CUBE-2025WM and is the answer not in the manual?

Questions and answers

Related Manuals for Amantii CUBE-2025WM

Summary of Contents for Amantii CUBE-2025WM

  • Page 1 All manuals and user guides at all-guides.com CUBE REPAIR GUIDE CUBE‐2025WM...
  • Page 2 All manuals and user guides at all-guides.com TABLE OF CONTENTS • How to replace LED light • How to replace the flicker motor • How to replace the heating element • How to replace the PCB board • How to replace the signal receiver •...
  • Page 3 All manuals and user guides at all-guides.com HOW TO REPLACE THE LED LIGHT CUBE‐2025WM STEP 1 Unscrew the front glass securing steel panel and remove the front glass panel. Unscrew Securing panel locations...
  • Page 4 All manuals and user guides at all-guides.com STEP 2 Grasp the steel bar and pull it out Then pull it upward to take Towards you (horizontally as shown). it off.
  • Page 5 All manuals and user guides at all-guides.com STEP 3 You can now replace ember bed LED light Remove the ember bed glass panel, Unplug the red circled socket and you will find the ember bed LED light replace the LED light. beneath the glass panel.
  • Page 6 All manuals and user guides at all-guides.com STEP 4 Replace the flame LED light. Unscrew the screws circled above to remove the back cover.
  • Page 7 All manuals and user guides at all-guides.com STEP 5 When the back cover is removed, you can replace the LED light circled in red for the flame.
  • Page 8 All manuals and user guides at all-guides.com REPLACE THE EMBER BED FLICKER MOTOR After you have completed through STEP 1 you will be here: STEP 3, Flicker motor for ember bed is located here...
  • Page 9 All manuals and user guides at all-guides.com REPLACE THE EMBER BED FLICKER MOTOR STEP 1 Disconnect the flicker rod Unscrew and remove Unplug the ember bed connected to the ember the ember bed flicker motor. flicker motor and bed flicker motor. replace with a new ember bed flicker motor.
  • Page 10 All manuals and user guides at all-guides.com REPLACE THE FLAME FLICKER MOTOR Unscrew the screws circled in red and remove the back cover. Flicker motor for ember bed is located here...
  • Page 11 All manuals and user guides at all-guides.com STEP 1 Disconnect the flicker Unscrew the screws Unplug and replace a rod with the motor. Circled in red and new motor for ember remove the motor. Bed.
  • Page 12 All manuals and user guides at all-guides.com REPLACE THE HEATING ELEMENT STEP 1 Unscrew the front glass securing steel panel and remove the front glass panel. Securing panel locations Unscrew The heating element is located here...
  • Page 13 All manuals and user guides at all-guides.com STEP 2 Unscrew the circled screws and remove the heating element.
  • Page 14 All manuals and user guides at all-guides.com STEP 3 Pull the heating element out and turn it over, then you can replace it with a new one. Pull it out Turn it over...
  • Page 15 All manuals and user guides at all-guides.com REPLACE THE PCB BOARD STEP 1 Unscrew the circled screws and remove the back cover The heating element is located here...
  • Page 16 All manuals and user guides at all-guides.com STEP 2 Unscrew the 4 screws circled in red and replace the PCB with a new one.
  • Page 17 All manuals and user guides at all-guides.com REPLACE THE SIGNAL RECIEVER STEP 1 Unscrew the screws circled in red and remove the back cover. The signal receiver is located here...
  • Page 18 All manuals and user guides at all-guides.com STEP 2 Unscrew 2 screws circled in red to removethe signal receiver and replace it with a new one.
  • Page 19 All manuals and user guides at all-guides.com REPLACE THE CANOPY LIGHT STEP 1 Unscrew the front glass securing steel panel and remove the front glass panel. Securing panel locations Unscrew...
  • Page 20 All manuals and user guides at all-guides.com STEP 2 ZOOMED IN VIEW The Canopy light is located here Unscrew 2 screws circled in red and remove the Canopy light set.
  • Page 21 All manuals and user guides at all-guides.com STEP 3 Unplug the Canopy light circled in red and replace it with a new Canopy light.
