5.

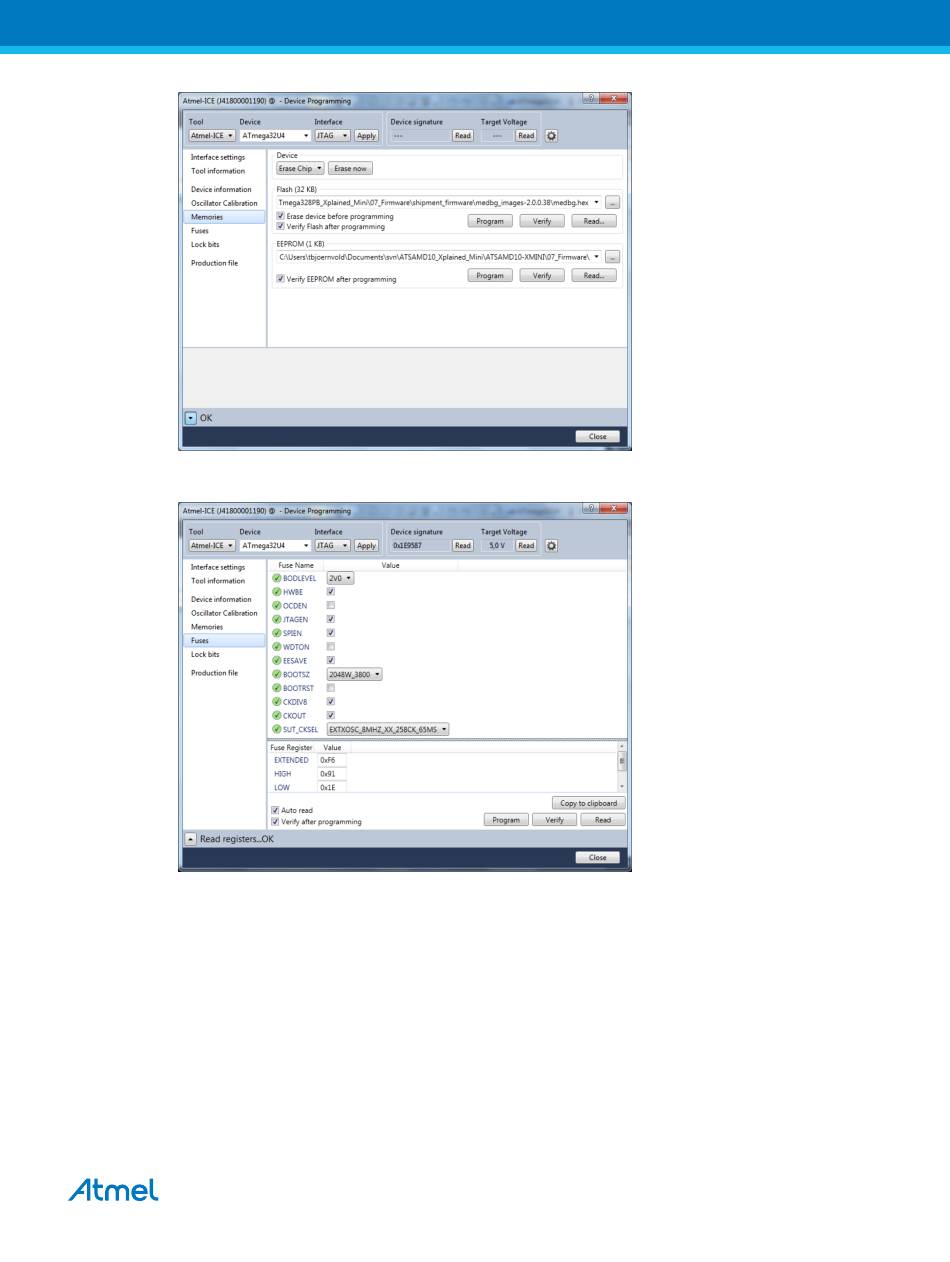

Select "Fuses" to program the fuses manually. Set the fuse(s) and click "Program". Recommended
fuse settings:
1.4.5.
Programming the ATmega32U4 using a Bootloader
This section describes how to use the bootloader to program the ATmega32U4.
1.
Install the Bootloader interface on the PC, download the installer from FLIP.
2.
Start the Bootloader PC GUI "FLIP".
3.
Short strap J102.
4.
Connect the ATmega328PB Xplained Mini board USB connector to the PC.
5.
Select Device = ATmega32U4 (Device - Select).
6.
Select USB communication (Ctrl+U).
7.
Select memory area to program (use the toggle memory button bellow the Atmel logo).
8.
Select Load Hex file (Ctrl+L).
Atmel ATmega328PB Xplained Mini [USER GUIDE]
Atmel-42469A-ATmega328PB-Xplained-Mini_User Guide-07/2015
7
