2.3.1.
Push Button

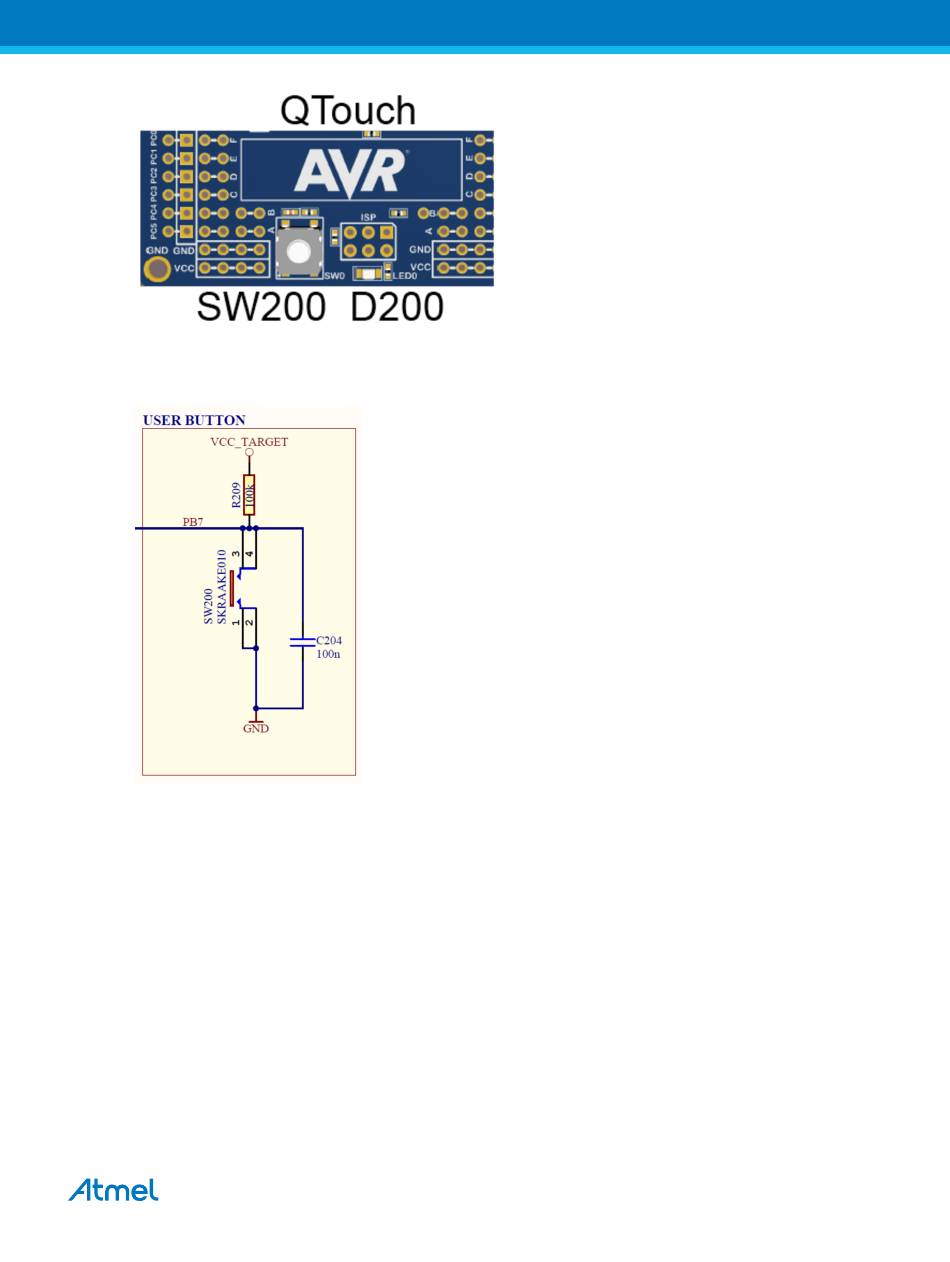

A general purpose push button, SW200, is connected to PB7.
2.3.2.
User LED
There is one yellow LED, D200, available for use by the application SW.
The LED is connected to ATmega328PB pin 17 - PB5 and to the SPI bus SCK signal for, SCK is in 3-
state when not used by the mEDBG.
Atmel ATmega328PB Xplained Mini [USER GUIDE]
Atmel-42469A-ATmega328PB-Xplained-Mini_User Guide-07/2015
14
