4. Reassem ble the Fans in reverse order.
5. Stick the Fan Sponge around the Fan.
Note:
The Fan Sponge is not re-usable.
Please use a new one when Fan exchange.

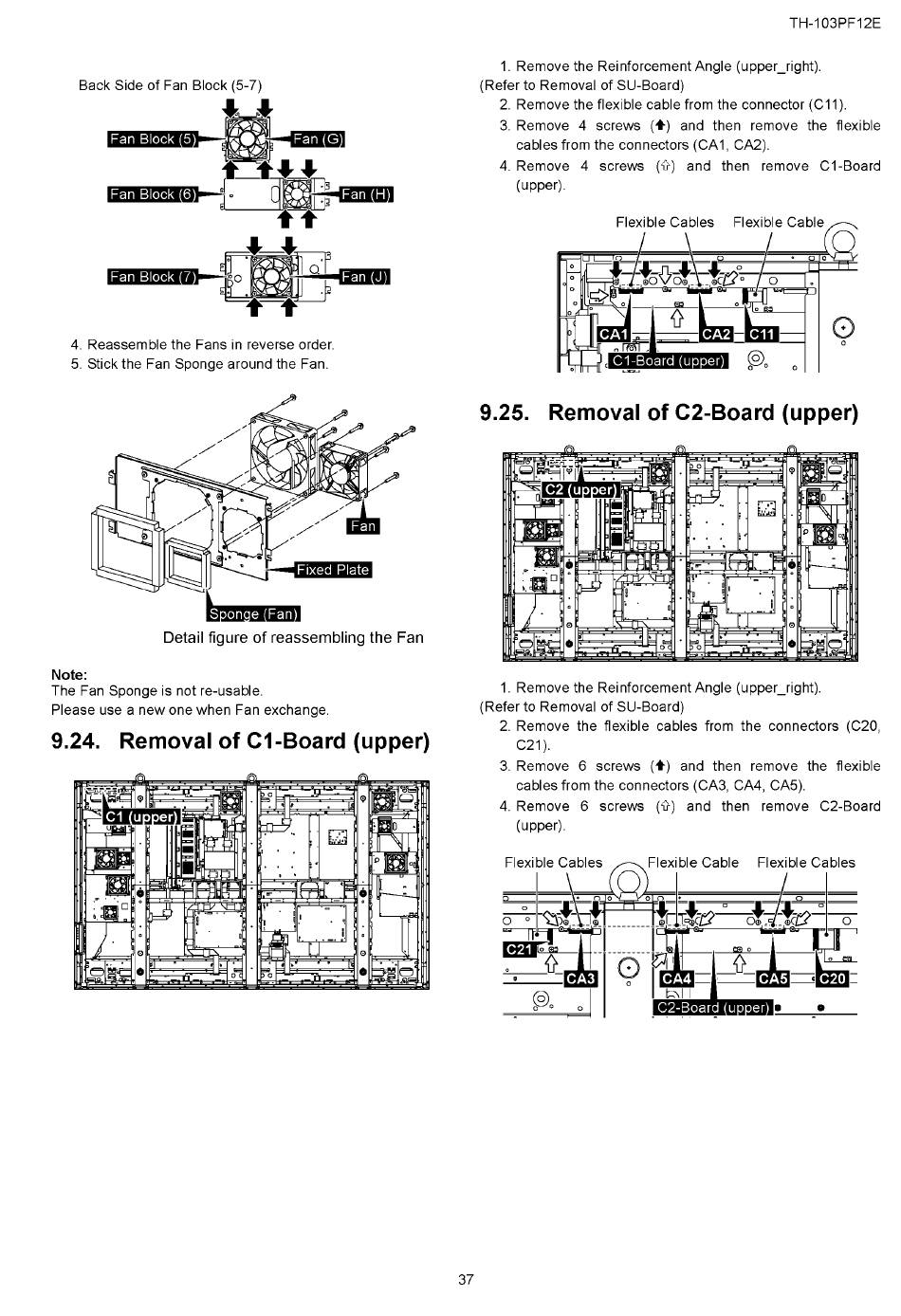

9.24. Removal of C1-Board (upper)
1. Remove the Reinforcem ent Angle (upper_right).
(Refer to Removal of SU-Board)
2. Remove the flexible cable from the connector (C11).
3. Remove 4 screws ( ♦ ) and then remove the flexible
cables from the connectors (CA1, CA2).
4. Remove 4 screws (O) and then
(upper).

9.25. Removal of C2-Board (upper)

1. Remove the Reinforcem ent Angle (upper_right).
(Refer to Removal of SU-Board)
2. Remove the flexible cables from the connectors (C20,
C21).
3. Remove 6 screws ( ♦ ) and then remove the flexible
cables from the connectors (CA3, CA4, CA5).
4. Remove 6 screws (0 ) and then
(upper).
37
TH-103PF12E
remove C1-Board
remove C2-Board
