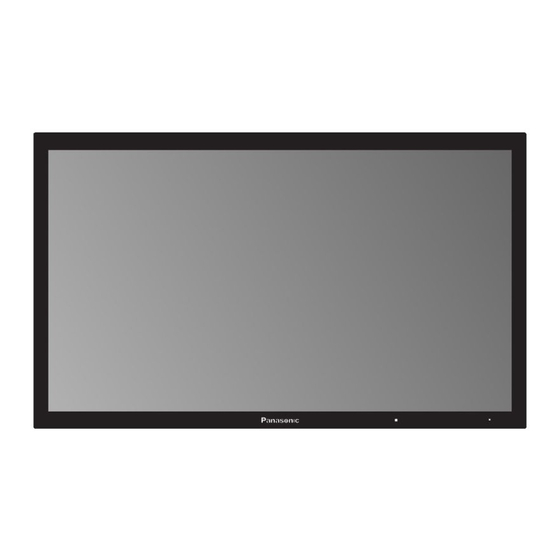

Panasonic TH-103PF12E Specifications

High Definition
Plasma Display
Product summary

Product specification

DISPLAY
Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H)
Number Of Pixeis (H x V)
Pixel Pitch (H x V)
Moving Picture Resolution
Contrast
Dynamic Contrast
Gradation
APPLICABLE SIGNALS
Scanning Format
PC Signal Compatibility
IINPUT / OUTPUT
(Slot1) Vacant
(Slot2) DVI-D IN
AUDIO IN (L/R)
(Slot3) COMPONENT IN
AUDIO IN (L/R)
LAN Control
(Fixed) PC IN
AUDIO IN
SERIAL
ELECTRICAL
Power Requirements
Power Consumption
Power Off Condition
Stand-By Condition
SOUND
Audio Out
MECHANICAL
Dimemsions (W x H x D)
Weight
Cabinet Color
ENVIRONMENTAL
Operating Environment
Temperature
Humidity
Altitude
Storage Environment
Temperature
Humidity
Altitude
SAFETY REGULATIONS
EN60065 Ver.7
RADIATION REGULATIONS
EN55022 Class-B, EN55024 EN61000-3-2, EN61000-3-3
REMOTE CONTROL TRANSMITTER
Power Requirements
Operation Distance
Weight
INCLUDED ACCESSORIES
• Operating Instruction book
• Power supply cord
• Allen wrench
OPTIONAL ACCESSORIES
• Wall-hanging bracket (vertical) • Pedestal • Ceiling-handing bracket • Terminal boards
• 103-inch 1080p High Definition Plasma Display for professional use.
• Equipped with three interchangeable slots-provide flexible and powerful
systemsolution by adding/exchanging wide variety of optional slot-in boards.
• Available with various unique professional features-Weekly Command Timer,
Dualpicture mode, Digital zoom, Built-in video wall image enlarger, etc..
• Various Energy-saving functions-DPMS, Auto power off, power save mode, etc...
• This is Low-reflection model.
Note: Dual picture mode cannot handle the following combinations of two analog signals
Component -Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) -PC (RGB)
(Design and specifications subject to change without notice)
103-inch (2,603 mm)
16:9
2,269 x 1,276 mm
1,920 x 1,080 pixels (1 pixel = 3cells for R, G and B)
1.182 x 1.182 mm
1,080 lines
40,000:1
2,000,000:1
6,144 steps (equivalent)
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 625 (576) / 50p,
750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p ·50i · 50p · 24p · 25p ·
30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, WXGA, SXGA, UXGA
(Over SXGA resolution: compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
DVI x 1
M3 jack x 1
BNC x 1
M3 jack x 1
RJ45 10BASE-T / 100BASE-TX, compatible with PJLink™
MINI D-SUB 15-pin x 1 (Female) Y/G
Plug & Play (VESA DDC 2B)
M3 jack x 1
D-SUB 9-pin x 1 (External control terminal), RS-232C compatible
200 - 240 V AC, 50 Hz/60 Hz
1450 W
0.4 W
Save OFF: 1.2 W, Save ON: 0.7 W
RCA pin jack x 2 (L /R)
2,412 x 1,419 x 129 mm (141 mm when including the protruding portion of slot)
approx. 201 kg
Black
0 °C to 40 °C
20 % to 80 % (Non condensation)
0 to 2,400 m
–20 °C to 60 °C
20 % to 90 % (Non condensation)
0 to 3,300 m
DC 3 V (2 x R6 (UM3) Size batteries)
approx. 7 m in front pf plasma display
approx. 130 g including batteries
• CD-ROM
• Fixing band x 2
• Blind sheet x 1
TH-103PF12E
*Based on APDC measurement method.
0.5 V [rms]
Y/G
P /B, P
B
0.5 V [rms]
P /B, P
B
HD/VD
(high impedance)
Output level: Variable (-∞ ~ 0 dB)
• Remote Control Transmitter
• Ferrite core x 2 • Noise cut filter
: with sync 1.0 V [p-p] (75 Ω)
/R: 0.7 V [p-p] (75 Ω)
R
: with sync 1.0 V [p-p] (75 Ω)
/R: 0.7 V [p-p] (75 Ω)
R
: 1.0 ~5.0 V [p-p]
• Batteries
• Eyebolt cap x 3
TH-103PF12E (
M091207
1 / )
3
