Panasonic TH-103PF12U Product Specification

High Definition
Plasma Display

Product summary

Product specification

DISPLAY

Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H)
Number Of Pixeis (H x V)
Pixel Pitch (H x V)
Moving Picture Resolution
Contrast Ratio
Dynamic Contrast Ratio
Gradation

APPLICABLE SIGNALS

Scanning Format
PC Signal Compatibility

IINPUT / OUTPUT

(Slot1) Vacant
(Slot2) HDMI IN
(Slot3) COMPONENT IN
AUDIO IN (L/R)
(Fixed) PC IN
AUDIO IN
SERIAL

ELECTRICAL

Power Requirements
Power Consumption
Power Off Condition
Stand-by condition

SOUND

Audio Out

MECHANICAL

Dimemsions (W x H x D)
Weight
Cabinet Color

ENVIRONMENTAL

Operating Environment
Temperature
Humidity
Altitude
Storage Environment
Temperature
Humidity
Altitude

SAFETY REGULATIONS

UL6500 Ver. 2, NOM approval
RADIATION REGULATIONS
FCC Part 15 Class-B, ICES-003, NOM approval
REMOTE CONTROL TRANSMITTER
Power Requirements
Operation Distance
Weight

INCLUDED ACCESSORIES

• Operating instruction book
• Allen wrench x 1

OPTIONAL ACCESSORIES

• Wall-hanging bracket (vertical)
• Terminal boards (LAN control, DVI, etc)

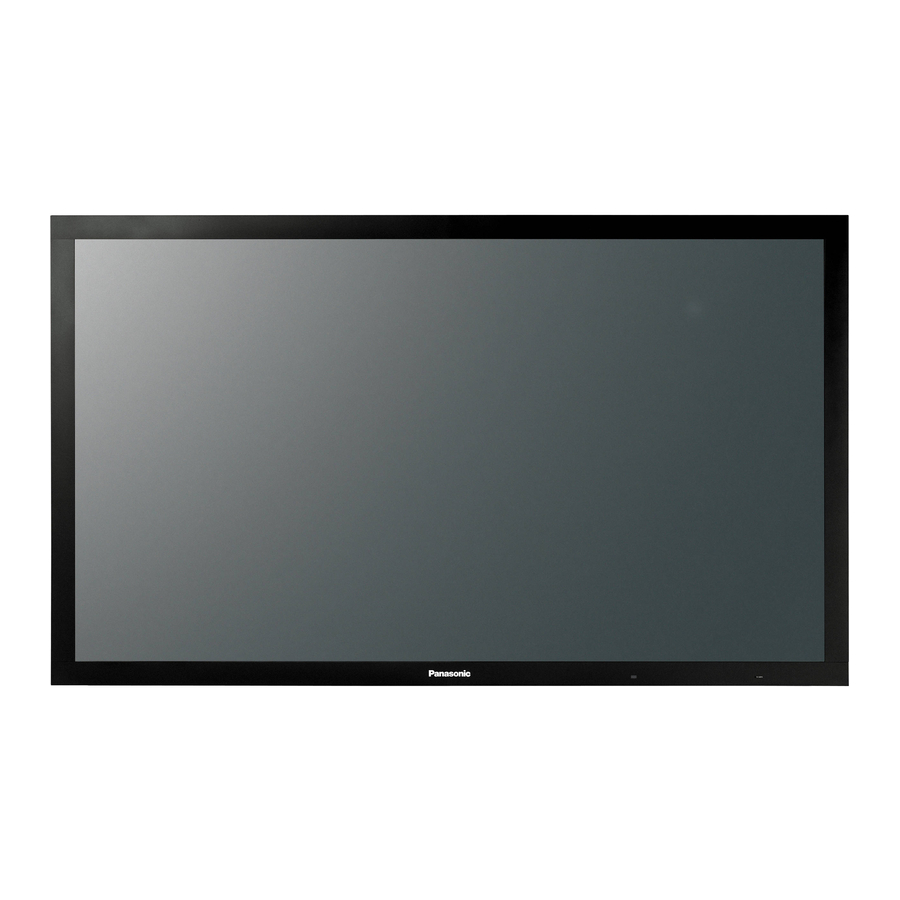

• 103-inch 1080p High Definition Plasma Display for professional use.
• Equipped with three interchangeable slots-provide flexible and powerful
systemsolution by adding/exchanging wide variety of optional slot-in boards.
• Available with various unique professional features-Weekly Command Timer,
Dualpicture mode, Digital zoom, Built-in video wall image enlarger, etc..
• Various Energy-saving functions-DPMS, Auto power off, power save mode, etc...
• This is Low-reflection model.
Note: Dual picture mode cannot handle the following combinations of two analog signals
Component -Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) -PC (RGB)
(Design and specifications subject to change without notice)
102.5-inch (2,603 mm)
16:9
89.3˝ x 50.2˝ (2,269 x 1,276 mm)
1,920 x 1,080 pixels (1 pixel = 3cells for R, G and B)
0.046˝ x 0.046˝ (1.182 x 1.182 mm)
1,080 lines
40,000:1
2,000,000:1
6,144 steps (equivalent)
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 625 (576) / 50p,
750 (720) /60p · 50p, 1125 (1080) / 60i · 60p ·50i · 50p · 24p · 25p ·
30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, WXGA, SXGA, UXGA
(Over SXGA resolution: compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
HDMI TYPE A connector x 2
BNC x 3
RCA pin jack x 2
MINI D-SUB 15-pin x 1 (Female) Y/G
Plug & Play (VESA DDC 2B)
M3 jack x 1
D-SUB 9-pin x 1 (External control terminal), RS-232C compatible
220 - 240 V AC, 50 Hz/60 Hz
1400 W
0.4 W
Save OFF: 1.2 W, Save ON: 0.7 W
RCA PIN JACK x 2 (L /R)
95.0˝ x 55.9˝ x 5.1˝ (2,412 x 1,419 x 129 mm)
(5.6˝ (141 mm) when including the protruding portion of slot)
approx. 443.2 lbs. (approx. 201 kg)
Black
32 F to 140 F (0 C to 40 C)
20 % to 80 % (Non condensation)
0 to 7,800 feet (0 to 2,400 m)
–4 F to 140 F (–20 C to 60 C)
20 % to 90 % (Non condensation)
0 to 10,800 feet (0 to 3,300 m)
DC 3 V (2 x AA Size batteries)
approx. 23 ft (7 m) in front pf plasma display
approx. 4.6 oz (130 g) including batteries
• Remotecontrol transmitter
• Eyebolt cap x 3 • Blind sheet x 1
• Pedestal
TH-103PF12U
*Based on APDC measurement method.
Y/G
P /B, P /R: 0.7 V [p-p] (75
B R
0.5 V [rms]
P /B, P /R: 0.7 V [p-p] (75
B R
HD/VD
(high impedance)
OUTPUT LEVEL: VARIABLE (-
• Batteries • Fixing band x 2
• Clamper x 1
• Ceiling-handing bracket
: with sync 1.0 V [p-p] (75 )
)
: with sync 1.0 V [p-p] (75 )
)
: 1.0 ~5.0 V [p-p]
~ 0 dB)
• AC cord
TH-103PF12U (
M091022
