1x2 HDMI Extender Splitter

InStAllAtIOn rEqUIrEMEntS

1. HDMI source device (computer graphics card, DVD, PS3, HD
monitoring equipment, etc..)
2. HDMI display device like SDTV, HDTV and projector with HDMI
port.
3. Network cables: UTP/STP Cat6/6A/7 networking cables, which
following the standard of EIA568B

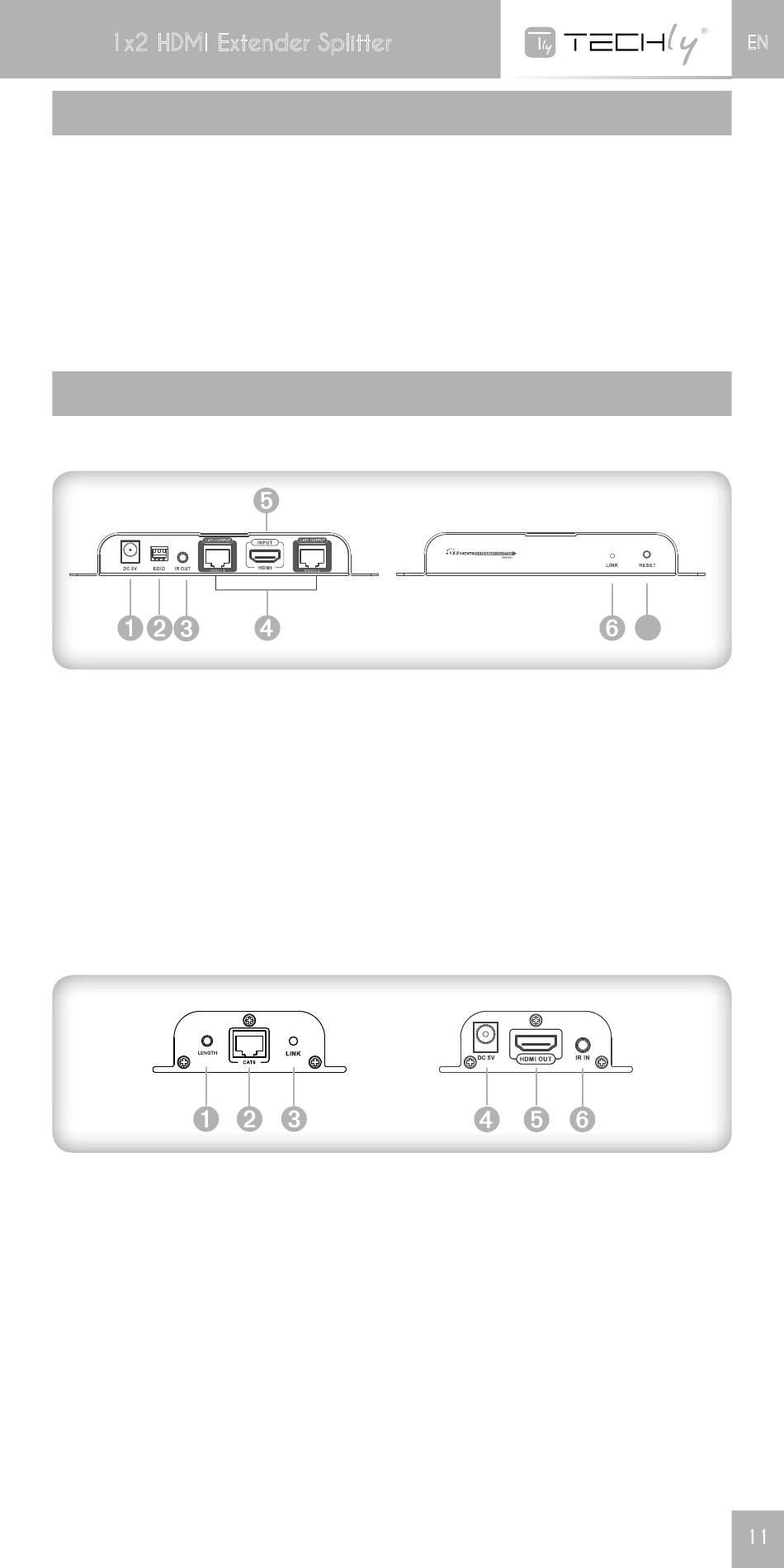

pAnEl DESCrIptIOn

1. transmitter unit (tx)
Power input (DC5V)
➊
EDID dip switch
➋
IR Signal output to connect with blaster extension cable
➌
➍ RJ45 signal output
HDMI input
➎
Power/signal indicator
➏
Reset button
➐
2. receiver unit (rx)
Length: for adjusting the length of network cable
➊
➋ RJ45 signal input
RJ45 indicator led, it lights on all the time with HDMI signal
➌
transmission, flashes with no signal transmission
DC5V power input (OPTIONAL)
➍
➎ HDMI signal output
IR signal input to connect with IR receiver extension cable
➏
