remarks: the LENGTH key is designed for switching between
automatic and manual setting to adjust the cable length. Powered
on without any operation, extender works with parameter set and
memorized before. Powered on and then press LENGTH key. The first
two press, it will enter automatic mode to adapt cable length. The
following 12 times of pressing, it will enter manual mode in 12 level to
meet different cable length. After all 12 level of press, it will enter auto
mode again and into next loop.

InStAllAtIOn prOCEDUrES

How to make a Cat.5/6 network cable
Follow the standard EIA-568B:
1-Orange/white
2-Orange
3-Green/white
4-Blue

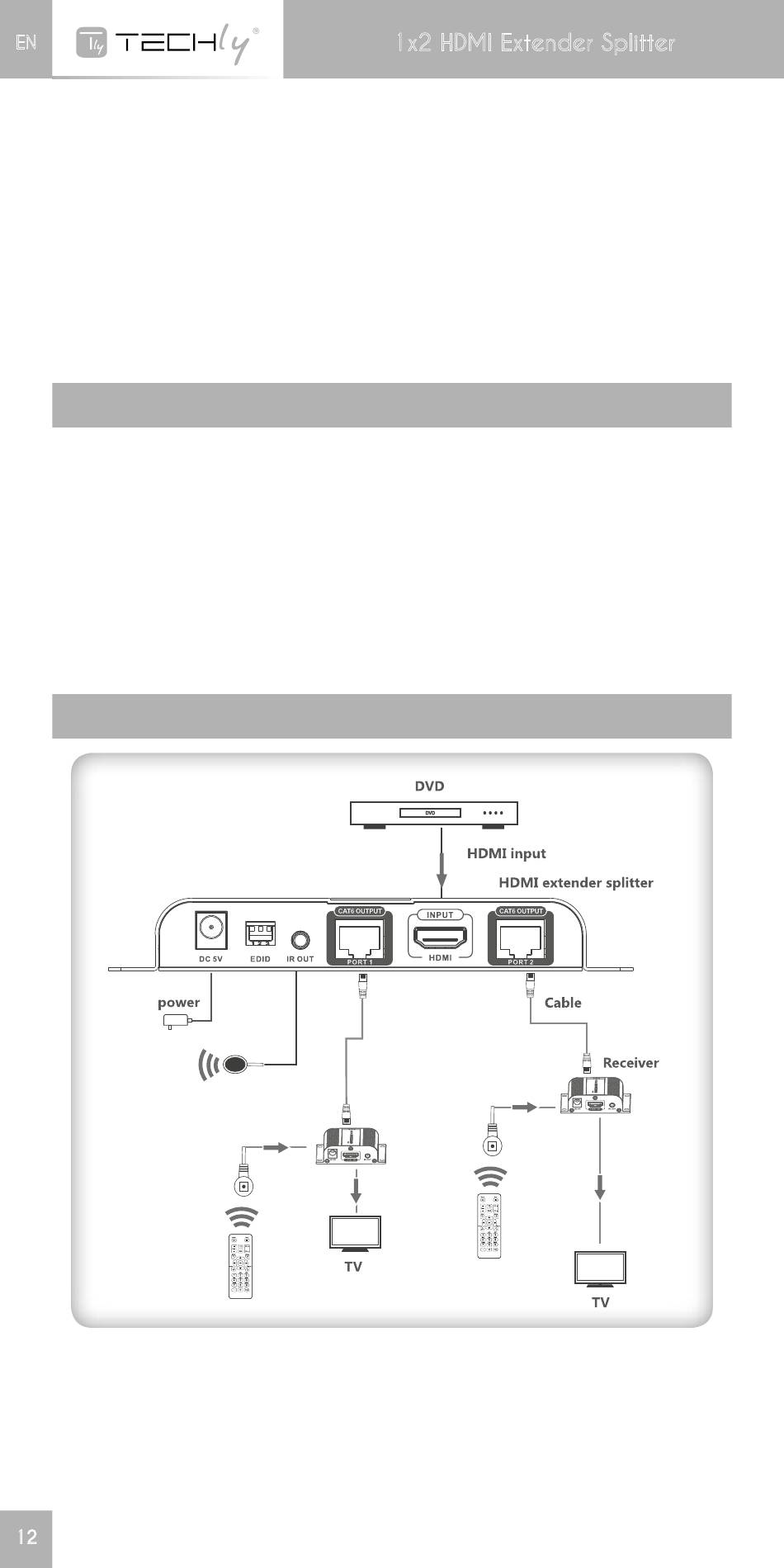

COnnECtIOn
remarks: please do not remote control two or RX units' IR cable at
the same time, which to avoid interference.
12
1x2 HDMI Extender Splitter
5-Blue/white
6-Green
7-Brown/white
8-Brown
