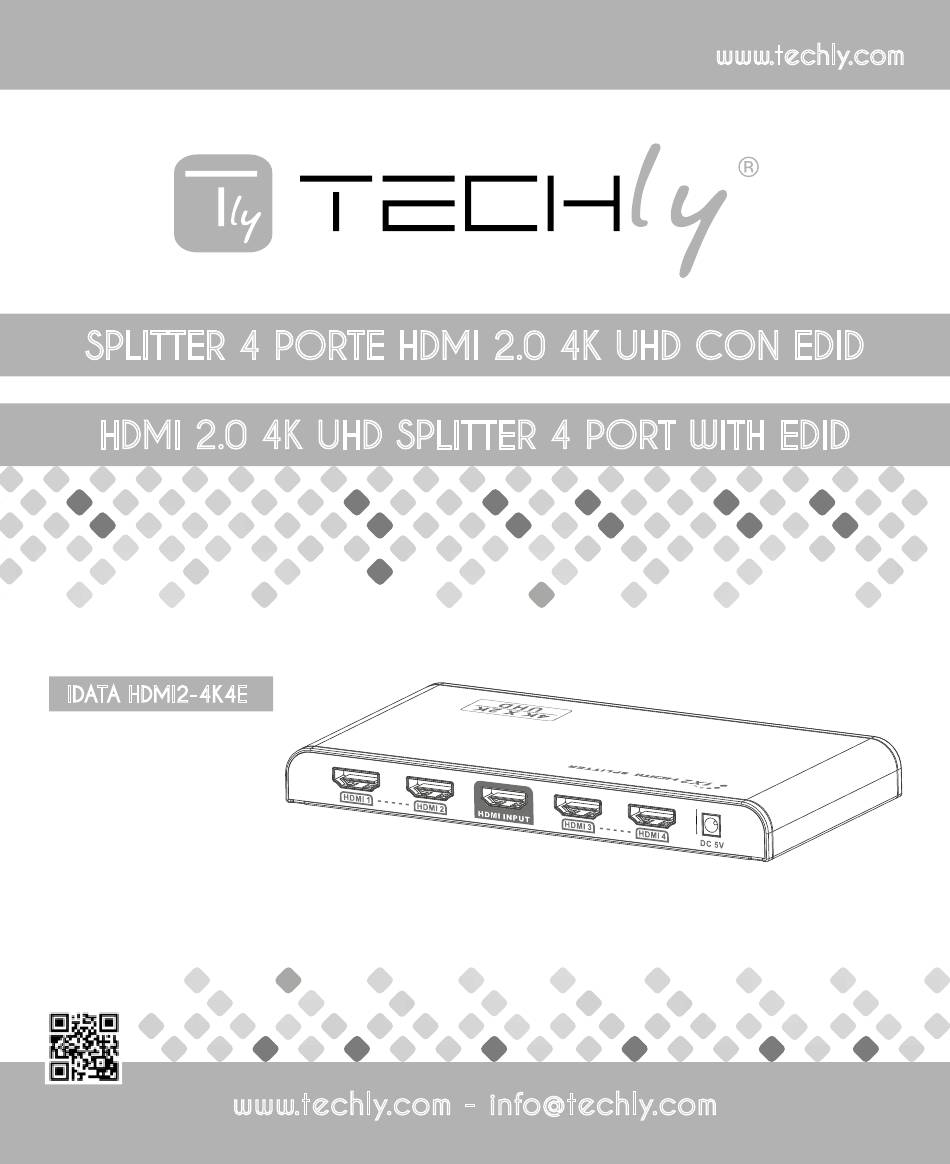

- Page 1 480P@ 60H z 2 CH 480p @ 60H z 7 .1CH HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID Co p y o n ce M IX1 M IX2 M IX3 IDATA HDMI2-4K4E Manuale d’istruzione User’s manual www.techly.com - info@techly.com...
-
Page 2: Informazioni Di Sicurezza
SPLITTER 4 PORTE HDMI 2.0 4K UHD CON EDID SPLITTER 4 PORTE HDMI 2.0 4K UHD CON EDID Gentile Cliente Grazie per aver acquistato questo prodotto. Per ottenere il massimo delle prestazioni nella salvaguardia della sua sicurezza, le consigliamo di leggere con attenzione il presente manuale prima di collegare e mettere in funzione il prodotto. -
Page 3: Contenuto Della Confezione
SPLITTER 4 PORTE HDMI 2.0 4K UHD CON EDID CARATTERISTICHE 1. Distribuisce il segnale di 1 sorgente HDMI a 4 monitor HDMI 2. Supporta risoluzione ultra HD 4K×2K@60Hz 3. Supporta HDMI 3D 4. Con funzione EDID 5. Ottima compatibilità 6. Struttura in metallo per una migliore dissipazione del calore 7. Plug and play CONTENUTO DELLA CONFEZIONE • HDMI Splitter 1x4 • A limentatore DC5V/2A • M anuale d’istruzione REQUISITI PER L’INSTALLAZIONE 1. Sorgente: sorgente video HDMI, come DVD, PS3, STB, PC, Ecc. 2. Schermo: HDTV, proiettore o altri schermi con porta HDMI 3. Cavo: cavo HDMI High speed standard (che possa supportare 4Kx2K) SPECIFICHE INTERFACCIA Porte Uscita Porta Ingresso Ingresso Porte Uscita HDMI HDMI... -
Page 4: Installazione
SPLITTER 4 PORTE HDMI 2.0 4K UHD CON EDID INSTALLAZIONE splitter HDMI 1. Collegamento: Collegare l’uscita della sorgente video HDMI all’ingresso dello splitter tramite il cavo HDMI 1 2 3 4 1 2 3 4 Collegare l’uscita dello splitter allo schermo HDMI tramite il cavo HDMI Impostare l’ingresso del televisore sul corretto canale HDMI Alimentare lo splitter (l’indicatore di alimentazione si illuminerà) 4k@ 60H z 2 CH 4k@ 60H z 7 .1CH 2. Funzionamento: 4k@ 30H z 2 CH 4k@ 30H z 7 .1CH Prima dell’uscita del segnale HDMI, lo splitter legge le Informazioni EDID delle televisioni 1080p @ 60H z 2 CH... - Page 5 SPLITTER 4 PORTE HDMI 2.0 4K UHD CON EDID Commutatore verso l’alto corrisponde a “1” Commutatore verso il basso corrisponde a “0” 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 4k@ 60H z 2 CH 4k@ 60H z 2 CH...
- Page 6 SPLITTER 4 PORTE HDMI 2.0 4K UHD CON EDID Q: Nessuna immagine in uscita A: 1) Verificare l’alimentazione dello splitter; assicurarsi che il led di alimentazione sia acceso. 2) Verificare che i cavi HDMI siano connessi correttamente. 3) Verificare e assicurarsi che sia stato impostato il canale corretto sul televisore. 4) In caso di collegamento con PC o notebook tramite HDMI, assicurarsi che la modalità di uscita sia mirror o extend. Q: Lo schermo è instabile, presenta la schermata di caricamento, presenta effetto fiocchi di neve o l’audio è bloccato? A: 1) Verificare per assicurarsi che tutti i collegamenti siano funzionanti e correttamente effettuati. 2) Provare a collegare direttamente la sergente HDMI allo schermo, se non si notano miglioramenti, sostituire il dispositivo sorgente.
- Page 7 SPLITTER 4 PORTE HDMI 2.0 4K UHD CON EDID SPECIFICHE Item Specifiche Ingresso 1 x HDMI Uscite 4 x HDMI Indicatore led di alimentazione 1 x LED Indicatore led di segnale 4 x LED Versione HDMI Compatibile con DVI1.0, HDMI1.4, HDMI2.0 Versione HDCP Compatibile con HDCP1.4,HDCP2.2 480i/480p/756i/756p/720p/1080i/1080p/...
- Page 8 Con il marchio CE, Techly garantisce che il prodotto è conforme alle norme e ® direttive europee richieste.
-
Page 9: Safety Notes
HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SAFETY NOTES • Your product is not a toy and is not meant for children, because it contains small parts which can be swallowed and can injure when used inappropriately! • P lease install the system and devices attached to it in a way that persons cannot be injured, or objects not be damaged for example by dropping or stumbling. • P lease remove the packing materials, because children may cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalation of incidentals and insulating material. • I n order to avoid fire, electric shock or product damage, please keep the product away from rain, moisture or any other liquid. -
Page 10: Package Contents
HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID FEATURES 1. Distributes 1 HDMI source to 4 HDMI displays 2. Supports ultra HD resolution 4K×2K@60Hz 3. Supports HDMI 3D 4. With EDID function 5. Good compatibility 6. Metal heat sink design 7. Plug and play PACKAGE CONTENTS • 1 x4 HDMI Splitter • D C5V/2A Power adapter • U ser’s manual INSTALLATION REQUIREMENT 1. Source: HDMI video source, such as DVD, PS3, STB, PC, Etc. 2. Display: HDTV, projector or other display with HDMI port 3. Cable: High speed standard HDMI cable (can support 4Kx2K) INTERFACE SPECIFICATION HDMI Output HDMI Input Power Input HDMI Output Ports Port... -
Page 11: Installation
HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID INSTALLATION HDMI splitter 1. Connection: Connect the HDMI video source output port to the splitter input port by HDMI cable 1 2 3 4 1 2 3 4 Connect the splitter output port to HDMI display by HDMI cable Set the TV input to right HDMI channel 4k@ 60H z 2 CH Power on the splitter (Power indicator led will light on) 4k@ 60H z 7 .1CH 2. Operation: 4k@ 30H z 2 CH 4k@ 30H z 7 .1CH Before output HDMI signal, the splitter will read EDID information of connected TVs and 1080p @ 60H z 2 CH... - Page 12 HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID Switch up for “1” Switch down for “0” 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 4k@ 60H z 2 CH 4k@ 60H z 2 CH EDID information...
- Page 13 HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID Q: No image output A: 1) Check the power supply of splitter; make sure the power light is on. 2) Check if the HDMI cables connected well. 3) Check and make sure the TV has been set up to the right channel. 4) While connect with PC or notebook via HDMI, please make sure the output mode is mirror or extended. Q: Display is unstable, splash screen, snowflakes or audio stuck? A: 1) Check and make sure all connections are good and correct. 2) Try to directly connect HDMI source to display, if it is the same, please change the source device. 3) Use high-quality HDMI 1.4 cable for transmitting 4Kx2K UHD signal.
-
Page 14: Specification
HDMI 2.0 4K UHD SPLITTER 4 PORT WITH EDID SPECIFICATION Item Specification Input port 1 x HDMI Output ports 4 x HDMI Power indicator led 1 x LED Signal indicator led 4 x LED HDMI version Compatible with DVI1.0, HDMI1.4,HDMI2.0 HDCP version Compatible with HDCP1.4,HDCP2.2 480i/480p/756i/756p/720p/1080i/1080p/... -
Page 15: Maintenance
Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture. Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives. Warranty: No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product. In compliance with EU Directive WEEE this product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products in compliance with WEEE directive, otherwise contaminative and hazardous substances can pollute the environment. With the CE sign, Techly ensures that the product is conformed to the basic ® European standards and directives. - Page 16 www.techly.com...
