introdUction
This product combines the extender and splitter function to split 1
HDMI signal to 4 (IDATA EXTIP-314)/8 (IDATA EXTIP-318) identical
HDMI signals via network cable and it is used as a sender to work
with 4 receivers (IDATA EXTIP-314) or 8 receiver (IDATA EXTIP-318)
to transmit these HDMI signals up to 120meters. With the IR signal
transmission to control the source device operation in long distance,
it is widely applied in HD audio visual display room, HDTV, set-to-box,
DVD etc. exhibition center and digital monitoring system.
FEatUrES
1. Based on HDbitT technology, more stable performance;
2. Distributes 1 HDMI source to 4 HDbitT outputs (IDATA EXTIP-314)
or to 8 HDbitT output (IDATA EXTIP-318);
3. Extends HDMI signal up to 120m over Cat5e/6 cable;
4. Supports full HD resolution 1080p@60Hz;
5. Supports cascade connection by switch or router
6. Compatible with existing network, not affect internet
7. Plug and play, use easily
8. Convenient wall-mountable design

packaGE contEntS

• HDMI extender TX *1
• HDMI receiver RX *1
• Power supply *2
• IR blaster extension *1
• IR receiver extension *1
• User manual *1

inStallation rEqUirEMEntS

1. HDMI source device (computer graphic card, DVD, PS3, HD
monitor equipment, etc...)
2. HDMI display device like SDTV, HDTV and projector with HDMI port.
3. HDMI extender RX which supports HDBitT transport protocol
4. UTP/STP Cat.5e/6 cable, follow standard EIA-568B
5. Network cable length supported between every connection: cat 5e
-> 100m; cat 6 ->120m

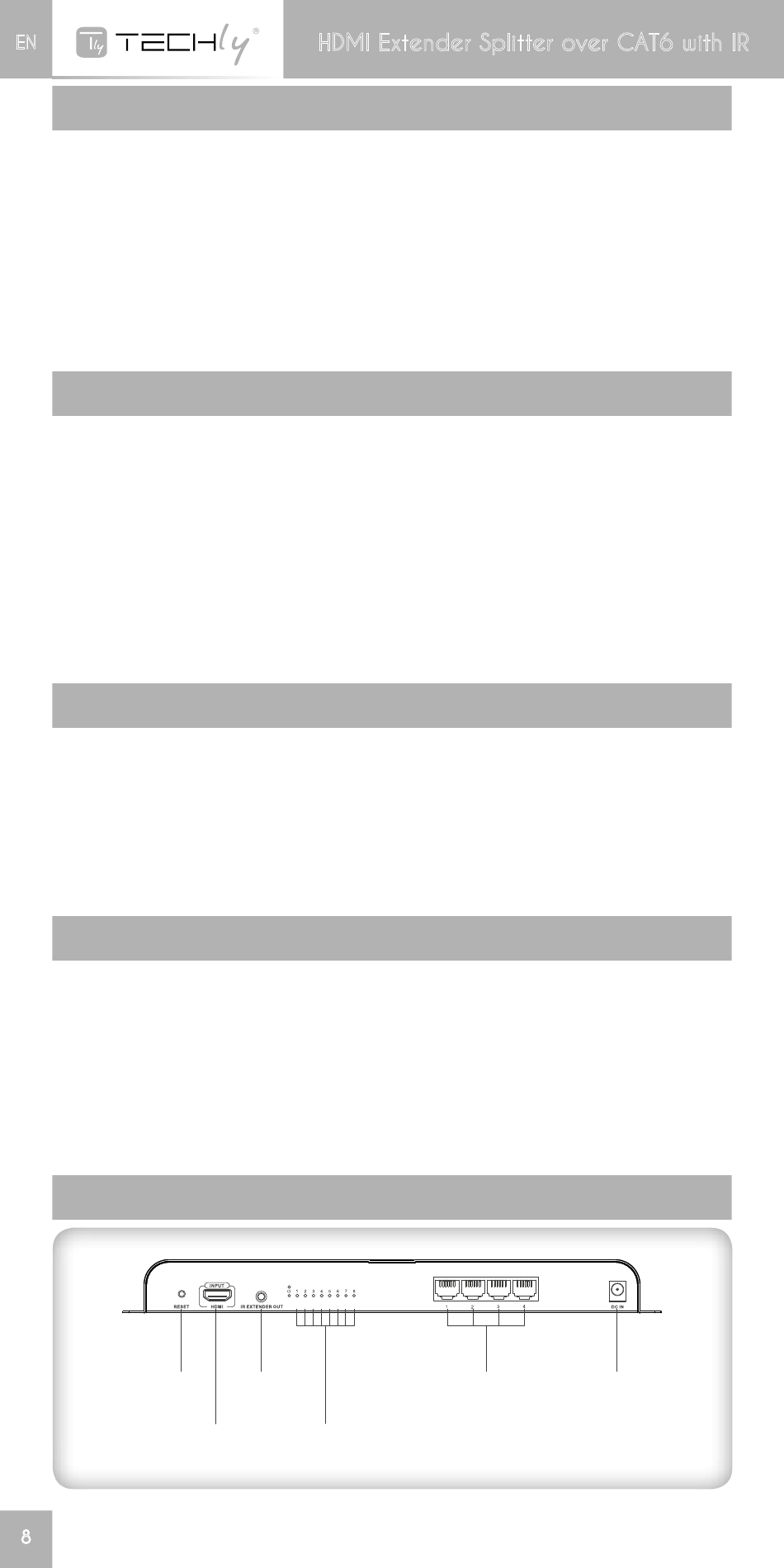

panEl dEScription

button
8
Reset IR blaster
extension
port
HDMI Signal
input link LED
HDMI Extender Splitter over CAT6 with IR
RJ45 output Power input
(DC5V)
