CAUTION
Rex Plus II is designed to detect moving objects though a wall or door and designed to be placed in an area
®
hidden from an intruder or guest. The unit may have reduced sensitivity at the back of the unit. If sensing
movement from behind, try to change the position of Rex Plus
The sensitivity control can also be reduced to minimum to detect in the desired direction while reducing
the undesired detections. Moving objects, in addition to people, can also be detected, including vehicles,
animals, trees and shrubs blowing in strong winds and dwelling movements during strong storms.
Detection Efficiency
Rex Plus II radar waves can detect through a variety of materials with maximum efficiency. The following
®
chart serves as a guide.
MATERIAL
Fiberglass or Plastic
Wooden Hollow Doors
Glass
Curtain Material
Paper Cartons/Cardboard
Plaster/Drywall Walls
Metal (Steel doors, aluminum or steel siding)
PLYWOOD/EXTERIOR
FIBER CEMENT

SPECIFICATIONS

Power Requirements
Battery (optional for portable operation)
Detector Operating Frequency
Power detecting standby
Power Barking
Battery Life
Detection Range
Detection Angle
External Output
Weight
Size
STEEL OR ALUM. AND GLASS
INSULATION
WOOD OR
METAL
STUDS
SIDING,
BRICK,
ALUMINUM,
VINYL OR
WALLBOARD
120 VAC Plug-in Adapter, 12VDC 0.5A (supplied)
6 Alkaline "C" batteries (not supplied)
2.4 GHz (microwave)
0.15W
6 W Peak
90 days max with alkaline batteries (
26 ft. maximum, reduced through obstructions
150 degrees typical (see Fig. 4 for details)
3.5mm mono jack, supply 75mA at 12VDC for 1 second (not for speakers)
2 lbs., including AC adaptor, without batteries
8 1/2 in. tall, 4 1/2 in. wide, 5 1/2 in. deep
EFFECT ON RANGE
Medium Reduction
Slight Reduction
Medium Reduction
Slight Reduction
Slight Reduction
Medium Reduction
Heavy Reduction (detection is possible when metal is moving
or there is a clearance)
STORM DOOR
DETECTION WAVES
ED-55
ED-55 FRONT
OF UNIT
REFLECTED WAVES
TYPICAL WALL CONSTRUCTION
II slightly to reduce unwanted detections.
®
DOOR: STEEL, WOOD
OR FIBERGLASS

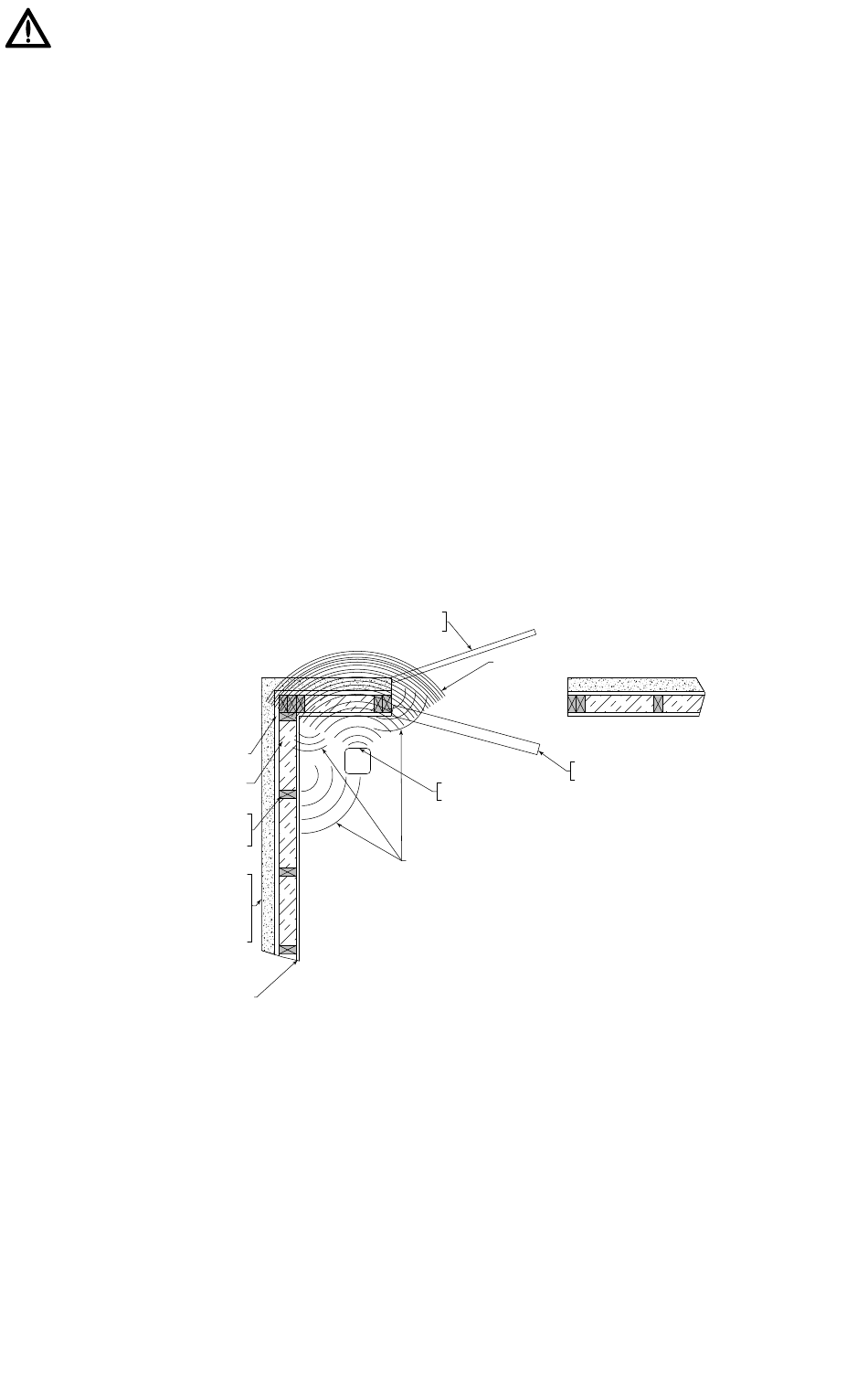

Fig. 4
A
depending on the number of activations)
