- Page 1 User Guide DTP Systems DTP R HWP 4K 231 D DTP R HWP 4K 331 D DTP HDMI Twisted Pair Receivers - Decorator-Style Wallplate 68-2816-01 Rev. B 04 17...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano WARNING: This symbol, , when used on the product, is intended to AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad alert the user of the presence of uninsulated dangerous voltage within avvertire l’utente della presenza di tensione non isolata pericolosa the product’s enclosure that may present a risk of electric shock. - Page 3 安全記事 • 繁體中文 안전 지침 • 한국어 警 告 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 若產品 上使 用此 符 號 ， 是 為了提 醒 使 用者，產品 機 殼內 存 在 著 접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 可能會導致觸電之風險的未絕緣危險電壓。...
-
Page 4: Fcc Class A Notice
FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Table Of Contents
Contents Introduction Installation and Operation ............1 ........3 About this Guide ..........1 Mounting the Receiver ........3 About the DTP R HWP 4K D Units ..... 1 UL and Safety Guidelines ........ 3 Features ............. 2 Site Preparation and Wall Box Installation ..4 Mud Ring Installation ........ - Page 6 Extron DTP R HWP 4K 231 and 331 D Receivers • Contents...
-
Page 7: Introduction
This guide provides instructions for experienced, professional installers to install, operate, and configure the Extron DTP R HWP 4K 231 D and DTP R HWP 4K 331 D receivers. The terms “extender” and “receiver” are used interchangeably in this guide to refer DTP R HWP 4K 231 D and DTP R HWP 4K 331 D receivers. -
Page 8: Features
DTP R HWP 4K 231 D receivers can receive video, control, and audio (if • applicable) signals up to 230 feet (70 meters) over STP cable. -
Page 9: Installation And Operation
Installation and Operation This section describes the installation and the operation of the extenders, including: • Mounting the Receiver • DTP R HWP 4K 231 and 331 D Connections Connection Details • • Power Supply Wiring • RS-232 and IR Over DTP Connector Wiring •... -
Page 10: Site Preparation And Wall Box Installation
Install the cables into the wall, furniture, or conduits before installing the DTP R HWP 4K 231 D or DTP R HWP 4K 331 D receiver. NOTE: The extender units are very deep and have connectors on the back side. Extron recommends a one-gang wall box which has a depth of at least 3.0 inches (7.6 cm) -
Page 11: Mud Ring Installation
Feed the twisted pair cables and, if applicable, the power cables through the opening and through the wall box punch-out holes, securing them with cable clamps to provide strain relief. NOTES: • In order to fit in the wall box, the twisted pair cables and RJ-45 connectors should not have a boot installed. -
Page 12: Final Installation
Final Installation After testing and making any adjustments, do the following: At the power outlet, unplug the power supply. NOTE: In a point-to-point application, one power supply can power both the transmitter and the receiver (see Power Supply Wiring on page 11). Mount the receiver into the wall box or mud ring and attach the supplied decorator-style faceplate to the unit (see figure 2... -
Page 13: Dtp R Hwp 4K 231 And 331 D Connections

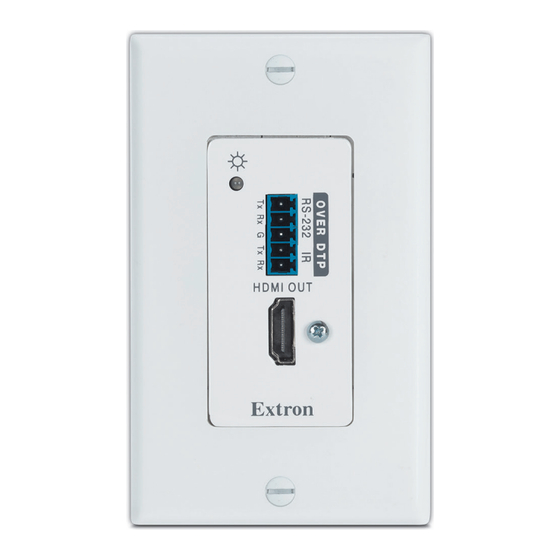

DTP R HWP 4K 231 and 331 D Connections Front Panel HDMI OUT Extron DTP R HWP 4K 231 D Figure 4. DTP R HWP 4K 231 and 331 D Front Panel Connectors and DTP R HWP 4K 331 D RS-232 and IR Over DTP —... -
Page 14: Rear Panel
Rear Panel DTP IN DTP R HWP 4K 231 D DTP R HWP 4K 231 D Figure 5. DTP R HWP 4K 231 and 331 D Rear Panel Connectors and DTP R HWP 4K 331 D Rear Panel DC power input connector — Plug the external 12 VDC power supply (not included) -
Page 15: Connection Details
Connection Details Detailed Pin Assignments, Wiring, and Sample Applications HDMI connectors Use LockIt Lacing Brackets to securely fasten HDMI cables to devices as follows (see figure 7). Figure 7. Installing the LockIt Lacing Bracket Plug the HDMI cable into the panel connection ( Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over it ( ). -
Page 16: Supported Cables
Supported Cables The receivers are compatible with shielded twisted pair cable (F/UTP, SF/UTP, and S/FTP). ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable to link the device with DTP transmitters or receivers. • N’utilisez pas le câble AV Skew-Free UTP version améliorée UTP23SF d’Extron pour relier le appareil avec les émetteurs ou les récepteurs DTP. -
Page 17: Power Supply Wiring
Power Supply Wiring NOTES: • In a point-to-point application, only one power supply is required. • A power supply is included with each individually-packaged transmitter. Figure 9 shows how to wire the connector. 3/16" (5 mm) Max. Smooth Ridges Captive Screw Connector SECTION A–A Power Supply... - Page 18 ATTENTION: • To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter. • Pour vérifier la polarité avant la connexion, brancher l’alimentation hors charge et mesurer sa sortie avec un voltmètre. •...
-
Page 19: Rs-232 And Ir Over Dtp Connector Wiring
Operation HDMI OUT Extron Figure 11. Receiver LED Indicator DTP R HWP 4K 231 D and DTP R HWP 4K 331 D Receiver LED Front Panel Power LED — Amber — The unit is receiving power, either locally or remotely (on DTP cable). -
Page 20: Reference Information
Reference Information This section includes decorator-style template dimensions for installation of the DTP R HWP 4K 231 and 331 D receivers. Decorator-Style Template Dimensions To create a template, use the dimensions shown on figure 12. NOTES: • The drawing is not full size or to scale. DO NOT scale up or print to use as a template. -
Page 21: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
