Section 5: Maintenance

Component Locations

The side of the enclosure with the viewing window is
identified as the rear of the generator set. The right and
left sides are identified by standing at the rear and
looking towards the front of the unit.
D
C
E

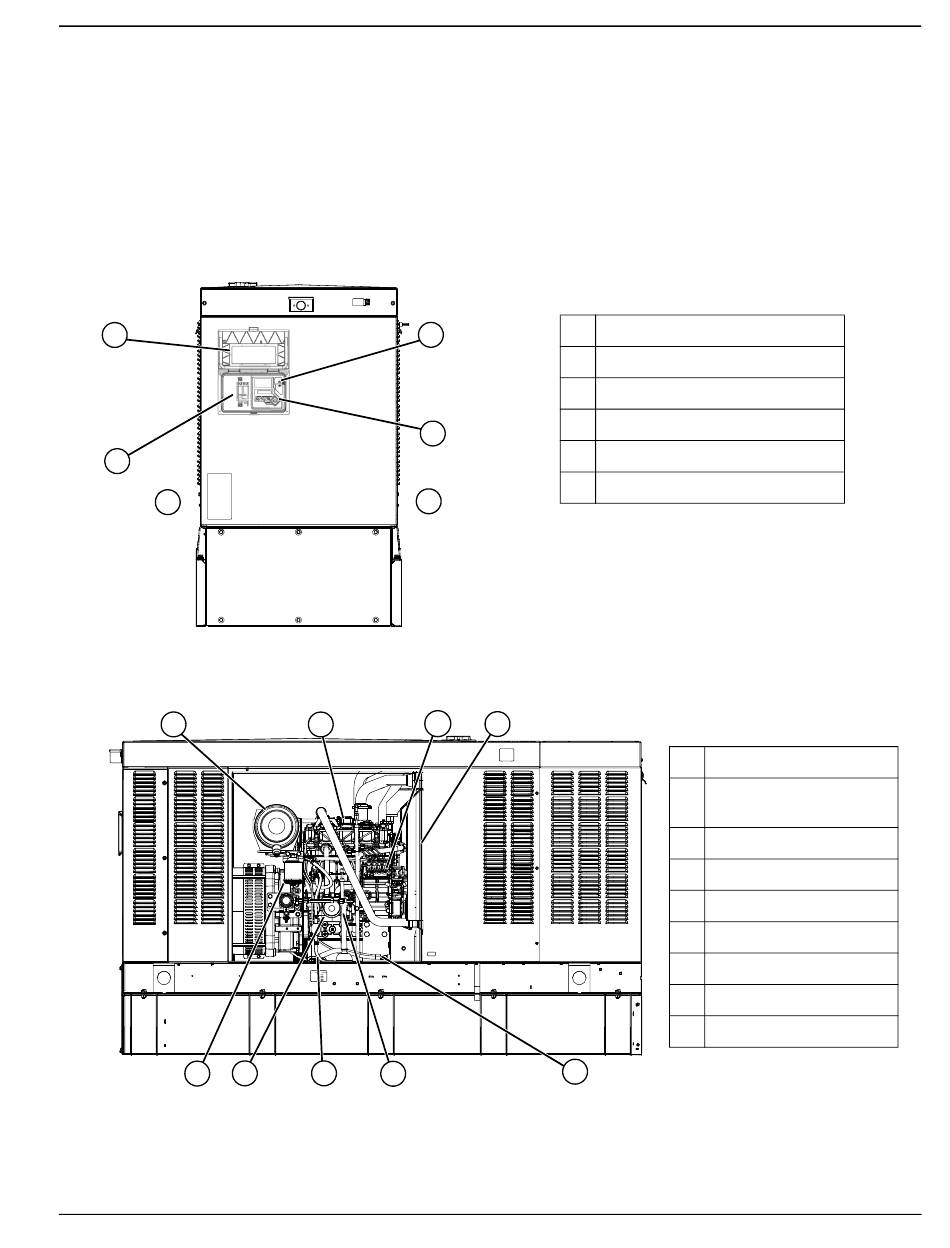

Figure 5-1. Rear View
G
J
Figure 5-2. Right Side View
Owner's Manual for Stationary Diesel Generators
D
F H
E
NOTE: The 2.2L engine is depicted in the artwork used
in this manual. The location and appearance of some
components may vary between engine models.
A
A
B
C
D
B
E
F
F
006378
B A
C
7.5 Amp Fuse and USB Port
Control Panel and LCD Screen
Main Circuit Breaker
Viewing Window
Left Side
Right Side
A V-Belt (not shown)
B Electronic Governor
(2.2L engines)
C Oil Drain Hose
D Oil Fill Cap
E Oil Level Dipstick
F Oil Filter
G Air Filter
H Fuel Supply/Return Hoses
J Fuel Filter/Air Bleed
006379
Maintenance
27
