Activation and Startup

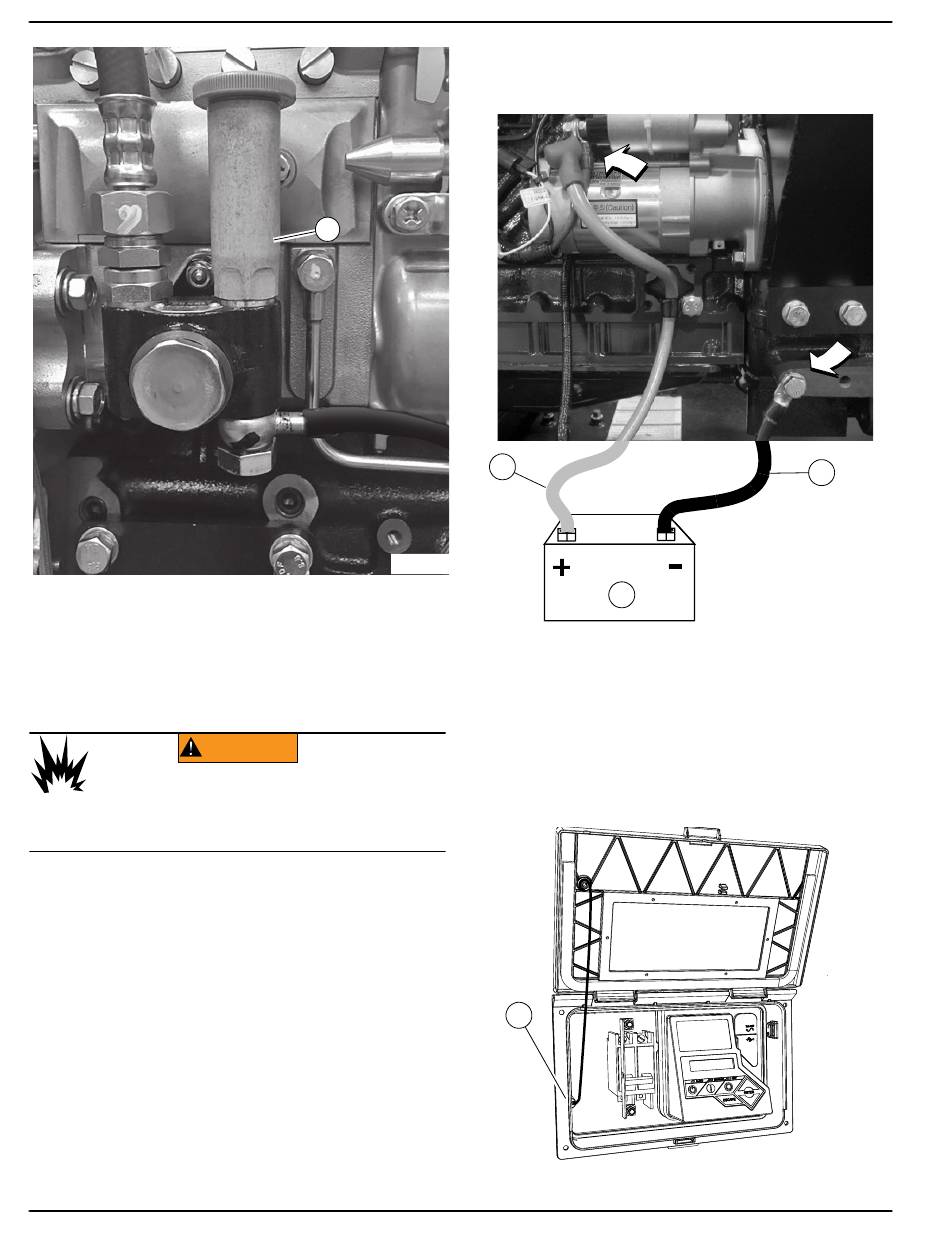

Figure 3-4. Prime Fuel System (2.5L Engines)
2. When all bubbles are purged and replaced by a solid
stream of fuel, lower pump handle (or release
priming bulb) and tighten the air bleed screw.
Install Battery
WARNING
Explosion. Batteries emit explosive gases.
Always connect positive battery cable first to
avoid spark. Failure to do so could result in
death or serious injury.

2.5L Models

NOTE: Remove ten screws to release louvered air
intake panel on left side of enclosure.
1. Loosen two screws with nylon washers to release
hold-down clamp from battery tray, or loosen strap
and move away from tray.
2. See Figure 3-5. Place battery (C) on tray.
3. Install two screws with nylon washers to secure
hold-down clamp to battery tray, or tighten strap
over top of battery.
4. Connect positive battery cable (red) (A) to positive
(+) battery terminal.
5. Connect negative battery cable (black) (B) to
negative (-) battery terminal.
12
6. Thread ten screws into louvered air intake panel.
H
A
006371

Open Viewing Window

1. Rotate viewing window upward to access control
2. See
(000133)
Alternately tighten screws to 90 in-lb (10 Nm) using
a crosswise pattern.
C
Figure 3-5. Battery Cable Connections
panel.
Figure 3-6. To hold viewing window in the
open position, remove rod from clip at back of
window and insert into hole in frame (A).
A
Figure 3-6. Viewing Window
Owner's Manual for Stationary Diesel Generators
B
006372
