Setra Systems 209 Installation Manual

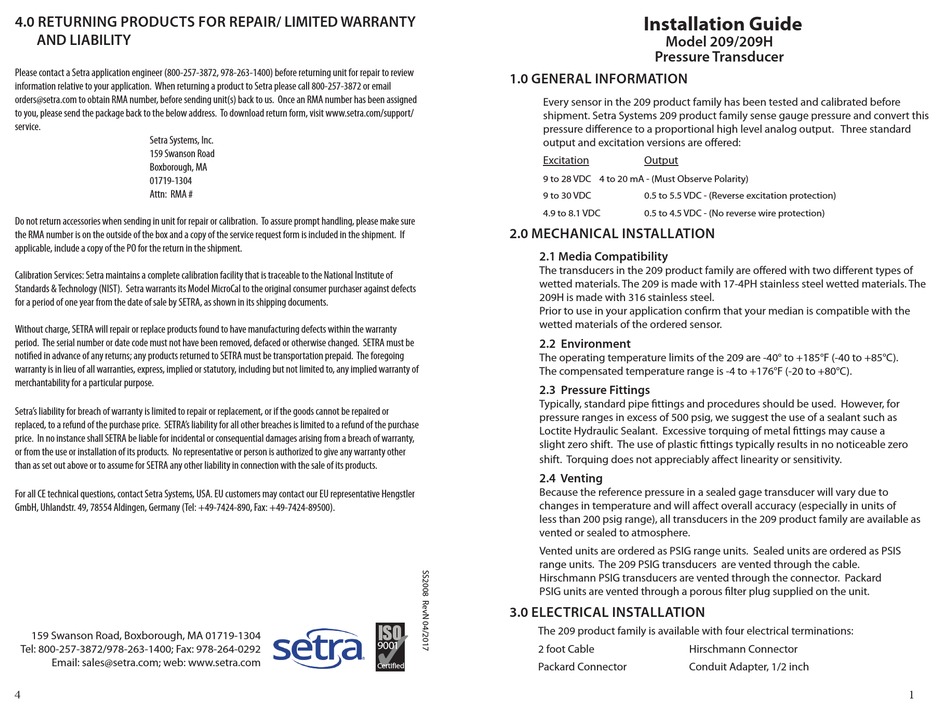

4.0 RETURNING PRODUCTS FOR REPAIR/ LIMITED WARRANTY
AND LIABILITY
Please contact a Setra application engineer (800-257-3872, 978-263-1400) before returning unit for repair to review
information relative to your application. When returning a product to Setra please call 800-257-3872 or email
orders@setra.com to obtain RMA number, before sending unit(s) back to us. Once an RMA number has been assigned
to you, please send the package back to the below address. To download return form, visit www.setra.com/support/
service.
Setra Systems, Inc.
159 Swanson Road
Boxborough, MA
01719-1304
Attn: RMA #
Do not return accessories when sending in unit for repair or calibration. To assure prompt handling, please make sure
the RMA number is on the outside of the box and a copy of the service request form is included in the shipment. If
applicable, include a copy of the PO for the return in the shipment.
Calibration Services: Setra maintains a complete calibration facility that is traceable to the National Institute of
Standards & Technology (NIST). Setra warrants its Model MicroCal to the original consumer purchaser against defects
for a period of one year from the date of sale by SETRA, as shown in its shipping documents.
Without charge, SETRA will repair or replace products found to have manufacturing defects within the warranty
period. The serial number or date code must not have been removed, defaced or otherwise changed. SETRA must be
notified in advance of any returns; any products returned to SETRA must be transportation prepaid. The foregoing
warranty is in lieu of all warranties, express, implied or statutory, including but not limited to, any implied warranty of
merchantability for a particular purpose.
Setra's liability for breach of warranty is limited to repair or replacement, or if the goods cannot be repaired or
replaced, to a refund of the purchase price. SETRA's liability for all other breaches is limited to a refund of the purchase
price. In no instance shall SETRA be liable for incidental or consequential damages arising from a breach of warranty,
or from the use or installation of its products. No representative or person is authorized to give any warranty other
than as set out above or to assume for SETRA any other liability in connection with the sale of its products.
For all CE technical questions, contact Setra Systems, USA. EU customers may contact our EU representative Hengstler
GmbH, Uhlandstr. 49, 78554 Aldingen, Germany (Tel: +49-7424-890, Fax: +49-7424-89500).
159 Swanson Road, Boxborough, MA 01719-1304
Tel: 800-257-3872/978-263-1400; Fax: 978-264-0292
Email: sales@setra.com; web: www.setra.com
4

1.0 GENERAL INFORMATION

Every sensor in the 209 product family has been tested and calibrated before
shipment. Setra Systems 209 product family sense gauge pressure and convert this
pressure difference to a proportional high level analog output. Three standard
output and excitation versions are offered:
Excitation
9 to 28 VDC 4 to 20 mA - (Must Observe Polarity)
9 to 30 VDC
4.9 to 8.1 VDC

2.0 MECHANICAL INSTALLATION

2.1 Media Compatibility
The transducers in the 209 product family are offered with two different types of
wetted materials. The 209 is made with 17-4PH stainless steel wetted materials. The
209H is made with 316 stainless steel.
Prior to use in your application confirm that your median is compatible with the
wetted materials of the ordered sensor.
2.2 Environment
The operating temperature limits of the 209 are -40° to +185°F (-40 to +85°C).
The compensated temperature range is -4 to +176°F (-20 to +80°C).
2.3 Pressure Fittings
Typically, standard pipe fittings and procedures should be used. However, for
pressure ranges in excess of 500 psig, we suggest the use of a sealant such as
Loctite Hydraulic Sealant. Excessive torquing of metal fittings may cause a
slight zero shift. The use of plastic fittings typically results in no noticeable zero
shift. Torquing does not appreciably affect linearity or sensitivity.
2.4 Venting
Because the reference pressure in a sealed gage transducer will vary due to
changes in temperature and will affect overall accuracy (especially in units of
less than 200 psig range), all transducers in the 209 product family are available as
vented or sealed to atmosphere.
Vented units are ordered as PSIG range units. Sealed units are ordered as PSIS
range units. The 209 PSIG transducers are vented through the cable.
Hirschmann PSIG transducers are vented through the connector. Packard
PSIG units are vented through a porous filter plug supplied on the unit.
3.0 ELECTRICAL INSTALLATION
ISO
The 209 product family is available with four electrical terminations:
9001
2 foot Cable
Packard Connector
Certified
Installation Guide

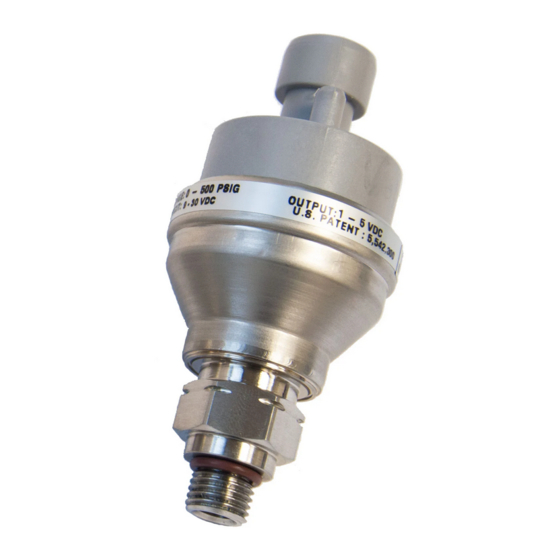

Model 209/209H
Pressure Transducer
Output
0.5 to 5.5 VDC - (Reverse excitation protection)
0.5 to 4.5 VDC - (No reverse wire protection)
Hirschmann Connector
Conduit Adapter, 1/2 inch
