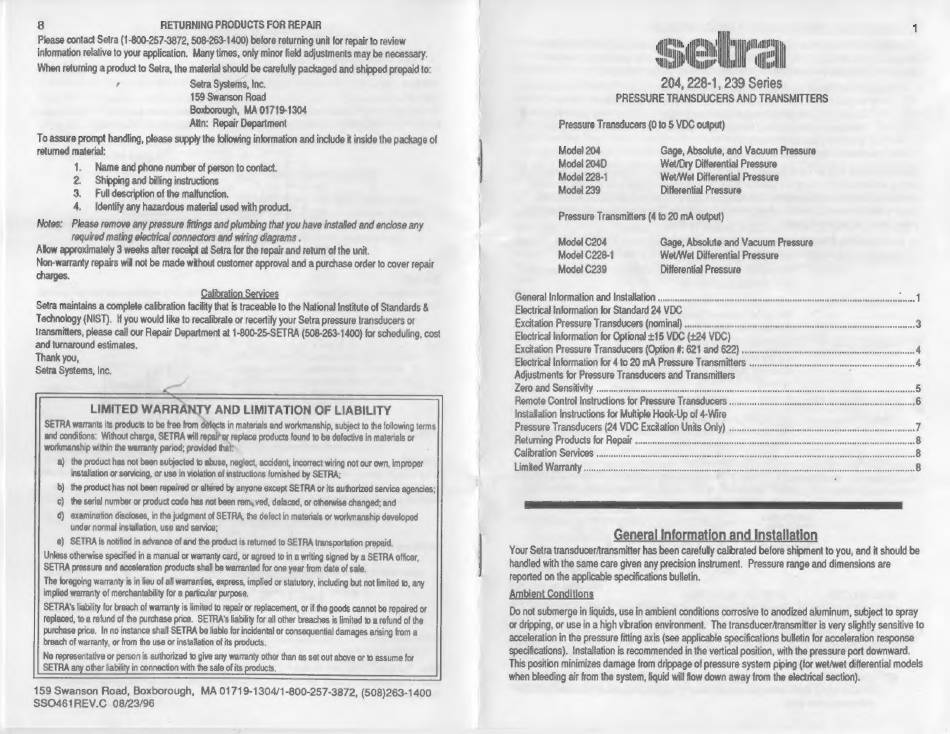

8 RETURNING PRODUCTS FOR REPAIR
Please contact Setra (1-800-257-3872, 508-263-1400) before returning unit for repair to review
information relative to your application. Many times, only minor field adjustments may be necessary.
When returning a product to Setra, the material should be carefully packaged and shipped prepaid to:
r Setra Systems, Inc.
159 Swanson Road
Boxborough, MA 01719-1304
Attn: Repair Department
To assure prompt handling, please supply the following information and include it inside the package of
retumed material:
1. Name and phone number of person to contact.
2. — Shipping and billing instructions
3. — Full description of the malfunction.
4. Identity any hazardous material used with product.
Notes: Please remove any pressure fittings and plumbing that you have installed and enclose any
required mating electrical connectors and wiring diagrams .
Allow approximately 3 weeks after receipt at Setra for the repair and return of the unit.
Non-warranty repairs will not be made without customer approval and a purchase order to cover repair
charges.
Calibration Servi
Setra maintains a complete calibration facility that is traceable to the National Institute of Standards &
Technology (NIST). If you would like to recalibrate or recertify your Setra pressure transducers or
transmitters, please call our Repair Department at 1-800-25-SETRA (508-263-1400) for scheduling, cost
and turnaround estimates.
Thank you,
Setra Systems, Inc,
LIMITED WARRANTY AND LIMITATION OF LIABILITY
SETRA warrants its products to be free from d e f e c t s in materials and workmanship, subject to the following terms
and conditions: Without charge, SETRA will o r replace products found to be defective in materials or
workmanship within the warranty period; provided that
a) the product has not been subjected to abuse, neglect, accident, incorrect wiring not our own, improper
installation or servicing, or use in violation of instructions furnished by SETRA;
b) the product has not been repaired or altered by anyone except SETRA or its authorized service agencies;
c) the serial number or product code has not been rem, ved, defaced, or otherwise changed; and
d) examination discloses, in the judgment of SETRA, the defect in materials or workmanship developed
under normal installation, use and service;
€) SETRA is notified in advance of and the product is returned to SETRA transportation prepaid,
Unless otherwise specified in a manual or warranty card, or agreed to in a writing signed by a SETRA officer,
SETRA pressure and acceleration products shall be warranted for one year from date of sale,
The foregoing warranty is in lieu of all warranties, express, implied or statutory, including but not limited to, any
implied warranty of merchantability for a particular purpose.
SETRA's liability for breach of warranty is limited to repair or replacement, or if the goods cannot be repaired or
replaced, to a refund of the purchase price. SETRA's liability for all other breaches is limited to a refund of the
purchase price. In no instance shall SETRA be liable for incidental or consequential damages arising from a
breach of warranty, or from the use or installation of its products.
No representative or person is authorized to give any warranty other than as set out above or to assume for
SETRA a n y other liability in connection with the sale of its products.
1
sebra
oyes hwl |
204, 228-1, 239 Series
PRESSURE TRANSDUCERS AND TRANSMITTERS
Pressure Transducers (0 to 5 VDC output)
Model 204 Gage, Absolute, and Vacuum Pressure
Model 204D Wet/Dry Differential Pressure
Model 228-1 Wet/Wet Differential Pressure
Model 239 Differential Pressure
Pressure Transmitters (4 to 20 mA output)
Model C204 Gage, Absolute and Vacuum Pressure
Model C228-1 WetWet Differential Pressure
Model C239 Differential Pressure
General Information and Installation ani ap E ee |
Electrical Information for Standard 24 VDC
Excitation Pressure Transducers (MOminal) a N 3
Electrical Information for Optional +15 VDC (+24 VDC)
Excitation Pressure Transducers (Option #: 621 and 622) ...
Electrical Information for 4 to 20 mA Pressure Transmitters
Adjustments for Pressure Transducers and Transmitters
Zero and Sensitivity ....
Remote Control Instructions for 'Pressure Transducers ..
Installation Instructions for Multiple Hook-Up of 4-Wire
Pressure Transducers (24 VDC Excitation Units Only)
Retuming Products for Repair .
Calibration Services
Limited Warranty ....
General Information and Installation
Your Setra transducer/ransmitter has been carefully calibrated before shipment to you, and it should be
handled with the same care given any precision instrument. Pressure range and dimensions are
reported on the applicable specifications bulletin.
Ambient Conditions
Do not submerge in liquids, use in ambient conditions corrosive to anodized aluminum, subject to spray
or dripping, or use in a high vibration environment. The transducerfransmitter is very slightly sensitive to
acceleration in the pressure fitting axis (see applicable specifications bulletin for acceleration response
specifications). Installation is recommended in the vertical position, with the pressure port downward.
This position minimizes damage from drippage of pressure system piping (lor wet/wet differential models
when bleeding air from the system, liquid will flow down away from the electrical section).
