6.4 Configuring PROFIsafe with Siemens
Step 7
This section explains how to configure PROFIsafe
communication between Safety Option MCB152 and
Siemens device in Siemens STEP 7 environment.

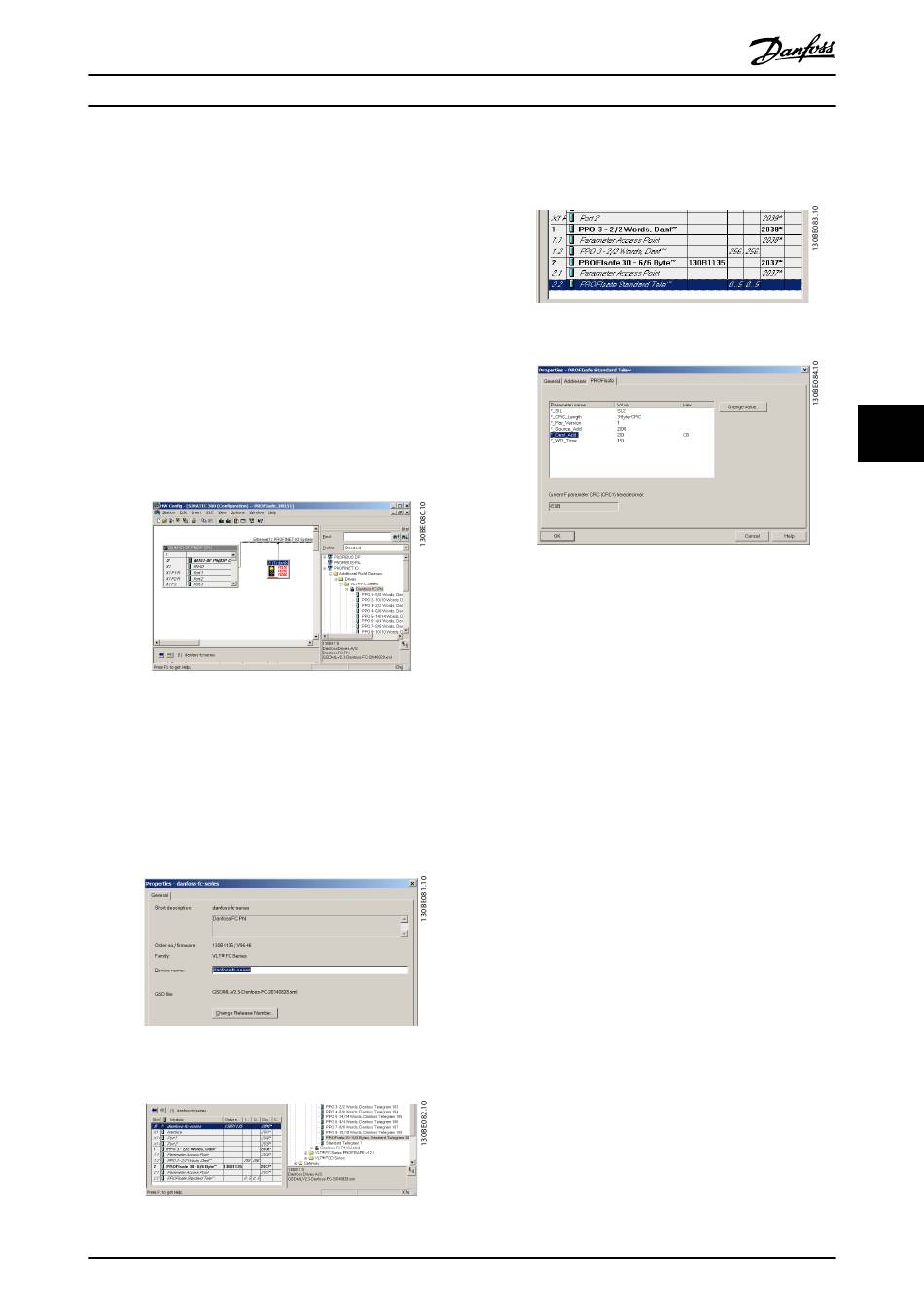

6.4.1 Configure the Hardware
Configure the PROFINET communication with the F-PLC
®
using the VLT PROFINET MCA 120 Installation Guide.
To add the Danfoss device to the PROFIsafe connection in
STEP 7:
1. In the panel on the right side, select PROFINET IO
⇒ Additional Field Devices ⇒ Drives ⇒ VLT FC Series
⇒ Danfoss FC PN.
2. Drag the Danfoss FC PN module and drop it onto
the PROFINET connection. STEP 7 may require to
enter a password for this operation.
3. In the Password for Safety Program dialogue box,
enter the appropriate password.
4. To edit the Danfoss device properties, double-
click the device.
5. In the Device name field, enter the same name as
shown in 12-08 Host Name.
6. Select the module and add the following I/O
protocol: PROFIsafe 30 -6/6 Bytes, Standard
Telegram 30.
MG37F102
Operating Instructions
7.
8.
9.
The following 3 parameters can be changed, but normally
it is only necessary to change the F_Dest_Add parameter:
•
•
•
Watchdog time
The watchdog time setting depends on the speed of the
PROFINET connection and the number of devices.
Valid range: 67-65535 ms.
Default value: 150 ms.
If the safety option does not receive a new valid PROFIsafe
telegram within this time, the safety option enters the safe
state. The watchdog time is configured to a value that is
long enough to avoid false alarms and short enough to
detect errors in communication. The formula for
calculating the minimum watchdog time:
F_WD_Time=2 * BT + HAT + DAT
•
•
•
Use the watchdog time to calculate the safety function
response time (SFRT) for the system. For more information,
see the PROFIsafe profile description at www.profibus.com.
Danfoss A/S © 10/2014 All rights reserved.
To edit the PROFIsafe settings. ouble-click
PROFIsafe Standard Telegram at the bottom of the
HW Config dialogue box, d.
Select the PROFIsafe tab in the Properties dialogue
box, .
Edit the required settings.
F_Source_Add - the PROFIsafe address of the
PROFIsafe master.
F_Dest_Add - the destination address of Safety
Option MCB 152. This address must be the same
as set in MCT-10 Set-up Software,
42-61 Destination Address.
F_WD_Time - the watchdog time for the
PROFIsafe connection.
BT = Bus cycle time.
HAT=Host acknowledgement time.
DAT=Device acknowledgement time.
6 6
23
