Installation and Maintenance Manual
Installation and Maintenance Manual
Installation and Maintenance Manual
Commercial Sliding Gate Operator
Commercial Sliding Gate Operator
Commercial Sliding Gate Operator
Model: GDS 240 PP
Made in Australia from Australian & quality imported components
Made in Australia from Australian & quality imported components
A B N
July
N14870
Advertisement
Table of Contents
Related Manuals for GDS GDS 240 PP
Summary of Contents for GDS GDS 240 PP

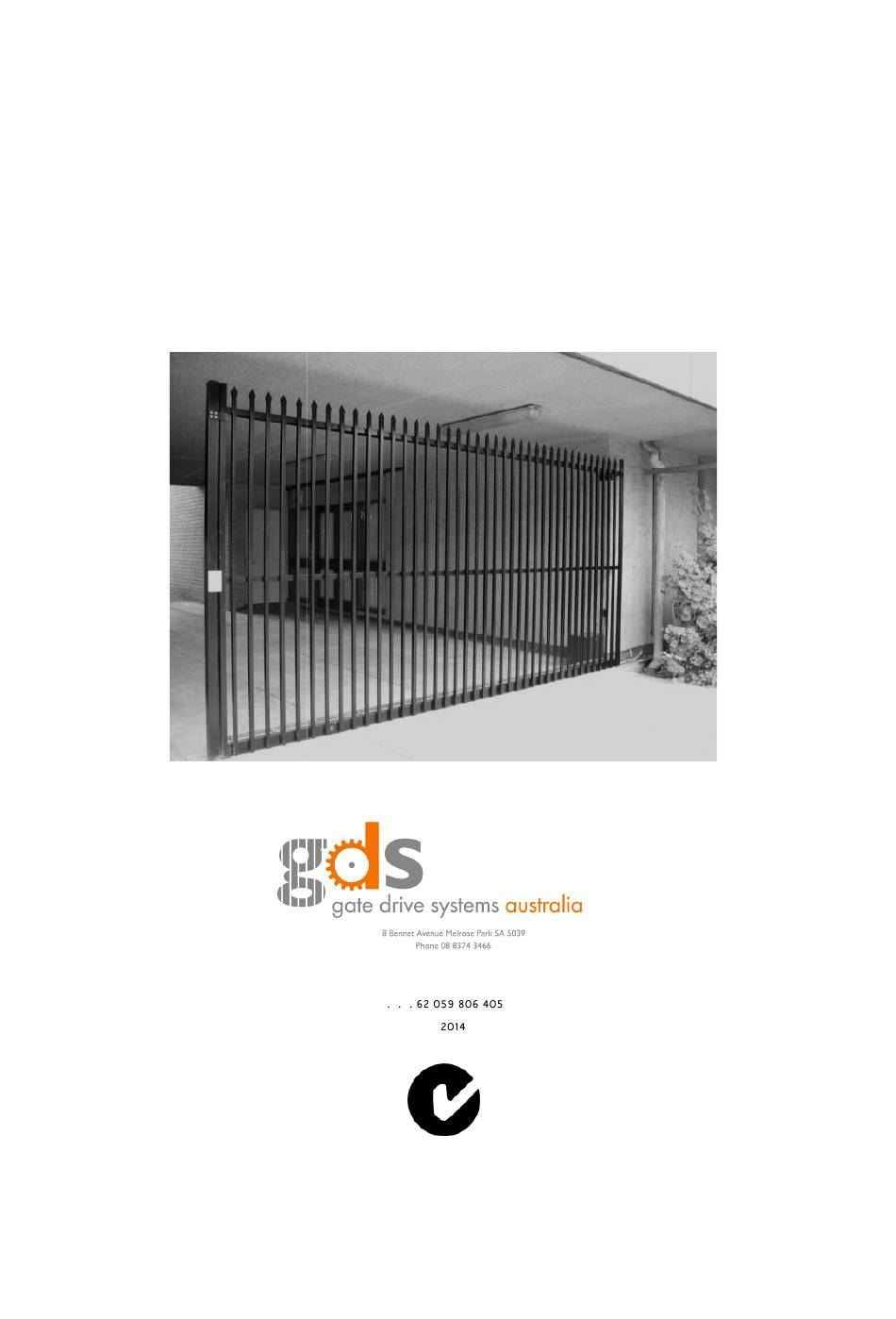

- Page 1 Installation and Maintenance Manual Commercial Sliding Gate Operator Commercial Sliding Gate Operator Commercial Sliding Gate Operator Model: GDS 240 PP Made in Australia from Australian & quality imported components Made in Australia from Australian & quality imported components A B N...
- Page 2 Abbreviated Installation Instructions (For those who don't have time!) GDS 240PP operator Place the operator in correct position. Pinion wheel to be parallel to the gate, and stepped out to allow for width of rack once it is mounted onto the gate frame. Mark out fixings and fix operator to the concrete pad.
- Page 3 To commission the gate, move the gate to the half way position and tighten the knurled wheel (Clockwise) engaging the clutch assembly. Hold in the clutch door switch in to allow gate operator to function. Press the opening button located under the dip switches to begin opening cycle, ensure the gate travels in accordance with the open and close status leds.
-
Page 4: Table Of Contents
CONTENTS Section No: Page Number: Safety Precautions Wiring Requirements Plan view of installation Conduit entry location Mechanical Installation Installation Details CB6 Control Board Electrical Connections Commissioning CB-6 control board layout Schematic wiring diagram Manual release instruction Maintenance details Warranty... -
Page 5: Safety Precautions
AFETY RECAUTIONS RECAUTIONS WARNING! FAILURE TO FOLLOW TH FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTALLATION NS AND INSTALLATION INSTRUCTIONS COULD RESULT IN INJURY OR DEATH AND OR DAMAGE TO PROPERT OR DAMAGE TO PROPERTY AND EQUIPMENT Appropriately licensed and competent personnel only should install the automation equipment. tely licensed and competent personnel only should install the automation equipment. -
Page 6: Wiring Requirements
IRING REQUIREMENTS • Single phase 240v a.c 10 A earth leakage protected supply. • Control input cables, Output signal cables (all to be shielded cable if over 8m runs). • Conduits preferably need to come up through base plate. Plan view of installation and conduit entry location ECHANICAL NSTALLATION 1. -
Page 7: Installation Details
NSTALLATION ETAILS Electrical Connections Supply • Connect a 10A 240v supply to din rail terminals labelled A & N. Connect earth to din rail terminal. Control • If cable runs are over 10m, connect the shielded cable to the chassis. Control Inputs The P.E, OPN and STP inputs require a normally closed switch contact and therefore should be shorted to the COM terminal if not used. -
Page 8: Commissioning
P.E Stops Open Cycle OSITION OFF - Activating the P.E input while motors are opening is ignored by the controller. ON - Activating the P.E input while motors are opening causes the motors to stop. P.E Triggered Auto Close OSITION OFF - Not selected ON - Selects the P.E triggered auto-close mode which causes the motors to auto-close if the P.E input is activated... -
Page 9: Control Board Layout
CB-6 BOARD LAYOUT FOR 240v a.c CONTROLS Mode Selection and Adjustment Electric Lock Control Protection Fuse Terminals for 24vAC Supply Motor power Input Terminals Control Logic Motor 1 Output to 240v motor Plug In Receiver's Antenna Motor 2 Output to 240v motor With Optional Shield Motor 1 Limit Switch Inputs Connector for Plug-In... -
Page 11: Manual Release Instruction
ANUAL ELEASE NSTRUCTIONS Place key in door lock, turn clockwise till released and pull door open. Turn knurled knob anticlockwise approx. ½ a turn to release Gate can now be opened by hand. Once in the open position, be sure to re engage the clutch, or secure by other means as to prevent the wind catching the gate and inadvertently moving the gate which may may cause accidental damage to property or person. -
Page 12: Maintenance Details
AINTENANCE ETAILS ETAILS WARNING! Failure to maintain equipment may result in injury or death and/or damage to property and Failure to maintain equipment may result in injury or death and/or damage to property and Failure to maintain equipment may result in injury or death and/or damage to property and equipment Recommended maintenance to be performed on the operator and gate are as follows: Recommended maintenance to be performed on the operator and gate are as follows:- Operator performs over 150 cycles a day... -
Page 13: Warranty
ARRANTY Gate Drive Systems Australia warrants that the goods manufactured by it shall be free from defect in manufacture for a period of 12 months from the date of invoice. Should any fault occur within that period as a result of faulty workmanship or materials, Gate Drive Systems Australia will at its discretion, replace the product at no charge to the Customer except for removal installation &...
