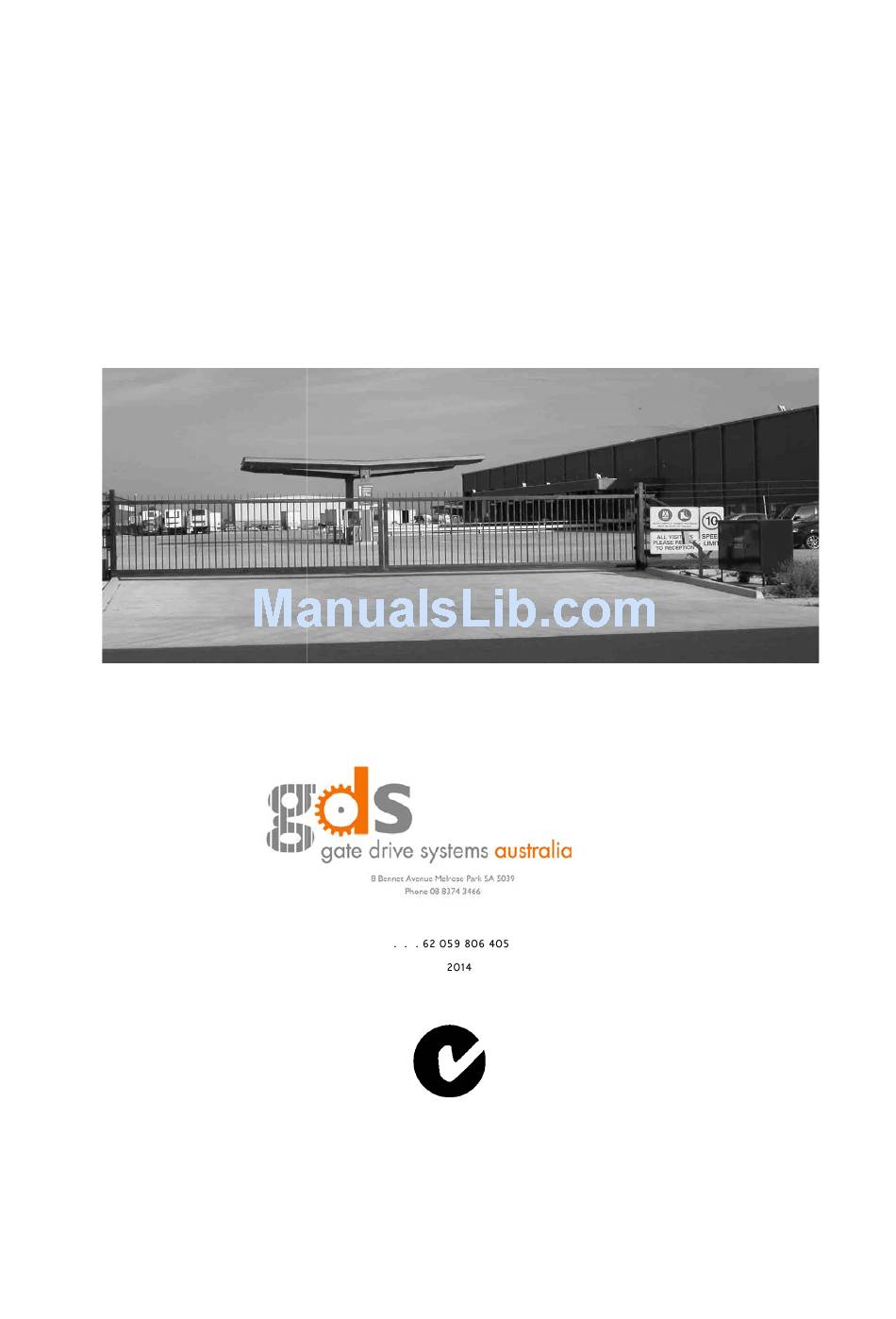

- Page 1 Sliding Gate Operators Sliding Gate Operators Models: GDS Models: GDS 450L & 630L Range Made in Australia from Australian & quality imported components Made in Australia from Australian & quality imported components Made in Australia from Australian & quality imported components...
-
Page 2: Abbreviated Installation Instructions
(For those who don't have time!) S l i d i n g G a t e O p e r a t o r s GDS “L” 450, 630 Range Made in Australia from Australian & quality imported components... - Page 3 To commission the gate, move the gate approximately 1m from the fully open position and tighten the knurled wheel (Clockwise) engaging the clutch assembly Press the opening button located under the dip switches to begin opening cycle, Ensure the direction the gate travels is in accordance with the opening and closing status LED’s, if not reverse two of the motor wires at the inverter terminals.
-
Page 4: Table Of Contents
CONTENTS Section No: Page No: Abbreviated Installation Instructions Safety Precautions Wiring Requirements Installation Details 6-10 Electrical cabling Mechanical installation Electrical connections Operator dimensions CB-6 control board layout Inputs / Outputs / Mode descriptions Variable Speed Drive (VSD) Commissioning Control Diagrams... -
Page 5: Safety Precautions
AFETY RECAUTIONS RECAUTIONS WARNING! FAILURE TO FOLLOW TH FAILURE TO FOLLOW TH ESE SAFETY PRECAUTIO NS AND INSTALLATION NS AND INSTALLATION INSTRUCTIONS COULD R ESULT IN INJURY OR D ESULT IN INJURY OR D EATH AND OR DAMAGE TO PROPERT OR DAMAGE TO PROPERT Y AND EQUIPMENT Appropriately licensed and competent pe... -
Page 6: Wiring Requirements
IRING EQUIREMENTS • 240v 10A non earth leakage protected power supply where control box is mounted. • 3 – 1.5mm cables and earth to drive motor (mains voltage). (Shielded cable) • 3 – Low voltage cables from control box for limit switches. (Shielded cable if over 8m runs). •... -
Page 7: Operator Dimensions
Operator Dimensions... -
Page 8: Control Board Layout
CONTROL BOARD LAYOUT FOR INVERTER CONTROLS Mode Selection and Adjustment Electric Lock Control Terminals Protection Fuse Terminals for 24vAC Supply for Inverter Input Terminals Control Logic Motor 1 Drive Output Terminals for Inverter Plug In Receiver's Antenna Terminals Motor 2 Drive Output Terminals for Inverter With Optional Shield Motor 1 Limit Switch Inputs Connector for Plug-In Receiver... - Page 9 Connections to Control Board Supply Connect a 10A 240v non earth leakage protected power supply to Din Rail terminals labelled A & N Connect earth to the earth Din Rail terminal. The VSD unit inherently operates with a small amount of earth leakage current which may cause nuisance tripping of an earth leakage circuit breaker.
-
Page 10: Variable Speed Drive (Vsd)
ELECTION Using the mode selection dip-switches select the desired operating modes. Note the times associated with the parameters marked with an * can be changed. The auto-close times can be changed using the procedure in the following section. See the instruction manual for details on how to change the other parameters. Position 1 SYNCHRONISING DELAY OFF - No delay... -
Page 11: Commissioning
(VSD) ARIABLE PEED RIVE The variable speed drive unit will, ramp up the speed of the operator and then ramp down prior to closing. • It must be remembered that the limit switches are to be set in a position which initiates the ramp down time. Therefore, the limit switches need to operate much sooner than when there is no variable speed drive unit. - Page 13 ANUAL ELEASE NSTRUCTIONS Place key in door lock, turn clockwise till released and pull door open Turn knurled knob anticlockwise approx. ½ a turn to release Gate can now be opened by hand. To re-engage the clutch, move the gate by hand Into approx.
- Page 14 AINTENANCE ETAILS ETAILS WARNING! Failure to maintain equipment may result in injury or death and/or damage to property and equipment Failure to maintain equipment may result in injury or death and/or damage to property and equipment Failure to maintain equipment may result in injury or death and/or damage to property and equipment Recommended maintenance to be performed on the operator and gate are as follows: Recommended maintenance to be performed on the operator and gate are as follows: - Operator performs over 150 cycles a day...
- Page 15 ARRANTY Gate Drive Systems Australia warrants that the goods manufactured by it shall be free from defect in manufacture for a period of 12 months from the date of invoice. Should any fault occur within that period as a result of faulty workmanship or materials, Gate Drive Systems Australia at its discretion, replace the product at no charge to the Customer except for installation &...
