- Page 1 INSTRUCTION MANUAL (M98224701-03-13A)
- Page 2 En el presente manual, si las instrucciones precedidas por este símbolo no se respetan o realizan correctamente, pueden ocasionar daños personales o dañar el equipo y /o las instalaciones. CIRCUTOR, SA se reserva el derecho de modificar las características o el manual del producto, sin previo aviso. WARNINGS / SYMBOLS Death, serious injury, or fire hazard could result from improper connection of this instrument.
- Page 3 Personenschäden und Schäden an der Anlage und/oder den Installationen verursacht werden. CIRCUTOR, SA behält sich das Recht vor, die Eigenschaften zu modifizieren oder das Produkthandbuch ohne vorherige Ankündigung. ADVERTÊNCIAS / SÍMBOLOS Uma ligação incorrecta do equipamento pode provocar a morte, lesões graves e risco de incêndio.
-
Page 4: Table Of Contents
GETEST CONTENTS 1.- Safety precautions __________________________________________________________ 5 2.- Product description _________________________________________________________ 5 2.1.- Description ____________________________________________________________________ 5 2.2.- What should it be used for? _______________________________________________________ 6 2.3.- Where should it be used? _________________________________________________________ 6 2.4.- unit safety _____________________________________________________________________ 6 3.- Verifications on receiving ____________________________________________________ 7 3.1.- Reception protocol ______________________________________________________________ 7... -
Page 5: Safety Precautions
GETEST SAFETY PRECAUTIONS Follow the warnings described in this manual with the symbols shown below. DANGER Warns of a risk, which could result in personal injury or material damage. ATTENTION Indicates that special attention should be paid to a specific point. -
Page 6: What Should It Be Used For

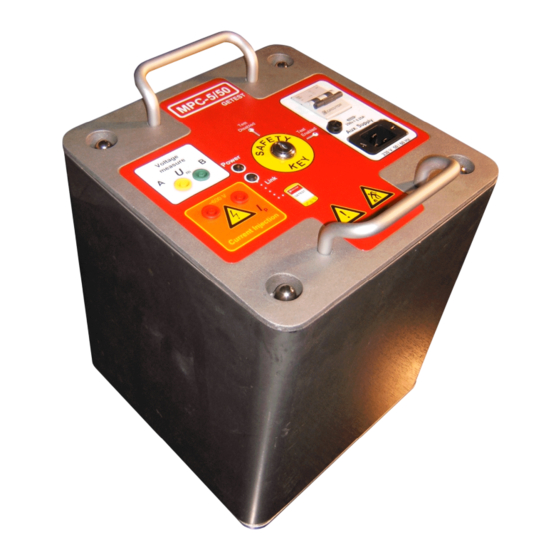

GETEST 2.2.- WHAT SHOULD IT BE USED FOR? The Getest unit is designed to measure step and contact voltages that may arise in a transformer substation, substation, etc. It also gives you the option of calculating the approximate earthing resistance to be tested. . -
Page 7: Verifications On Receiving
• 2 switches • Instruction Manual If any problem is noticed upon reception, immediately contact the transport company and/or CIRCUTOR's after-sales services 3.1.- RECEPTION PROTOCOL Make sure that the unit has not been damaged during transport. Check that the unit received matches the order and that its electrical features are suitable for the grid where it is to be connected. -
Page 8: Transport, Loading And Unloading, Handling And Storage
GETEST If any problem is noticed upon reception, immediately contact the transport company and/or CIRCUTOR's after-sales services. 3.2.- TRANSPORT, LOADING AND UNLOADING, HANDLING AND STORAGE The centre of gravity of some units may be found at a considerable height. Therefore, when handling with a forklift, it is recommended that the unit be securely fastened and that no abrupt operations are made. -
Page 9: Storage
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA advises the user to obtain the device's latest version of the specifications and applications at http://www.circutor.es... -
Page 10: Electrical Features
GETEST - The use of a Windows-based device to control the MPC lets you take advantage of the power of Windows software, and avoid having to carry other tools, like notepads, calculators, etc. - Operates on 50 and 60 Hz networks... - Page 11 GETEST Ammeter Type True-RMS Input impedance Less than 0.1 Ω Resolution 100 Vac range – 0.1 Vac resolution 10 Vac range – 0.1 Vac resolution Maximum current 100 Aac Ranges Auto (10, 100) Accuracy 2% reading + 2 digits Measuring resistance Range 0- 120 Ω...
-
Page 12: Unit Installation
6.1.- INSTALLATION The Getest may be powered directly from the mains (230 Vac and 50-60 Hz) or from a single- phase generator set. The required power of the generator set will depend on the value of the circuit loop resistance. This means that the bigger the loop resistance (test earthing plus auxiliary earthing), the more power the generator set must have in order to inject the current required by the user. -
Page 13: Unit Parts
GETEST Wiring Max R 5A Max R 10A Max R 25A Max R 50A When using a rolled extension cord to connect the unit to the mains, it is necessary to unroll it completely to perform the test, as well as the current and voltage coils supplied with the unit. - Page 14 GETEST PDA: Android PDA: Windows Mobile Page 14 of 24...
-
Page 15: Start-Up
Required power ≥ (600 V x current to be injected) 3.- Flip the switch (6). The red LED will light up. 4.- Before connecting the telephone and unit via Bluetooth, we first have to link the Getest unit to the telephone as follows: Touch the following icon on the phone's main screen which will take you to settings 5.- Select the "Wireless connections"... - Page 16 GETEST 7. Once the unit is linked, return to the Circutor Getest program. Select the linked unit by opening the following window and then clicking on the "Connect" icon. 8.- Turn the safety switch (5) to the "Enabled" position. 9.- Select the testing mode (resistance, step or contact). If you select "resistance" you must indicate the test current.
- Page 17 GETEST If the erratic voltages are less than 10% of the voltage to be injected º 0 corriente º 0 If the erratic voltages are more than 10% of the voltage to be injected º 0 − corriente corriente erráticas º...
-
Page 18: Connection Diagrams
CONNECTION DIAGRAMS Hardware earthing and auxiliary earthing connection Connect one of the GETEST's injection terminals (IP) to the hardware earthing or the transformer substation's or substation's protection earthing. Do not confuse the hardware earthing with that of the service, although in some earthing systems they will be interconnected. Connect the other GETEST injection terminal (IP) to the auxiliary earthing that we have previously created. -
Page 19: Step Voltage
Auxiliary earthing tested Connect the roll of 2-wire cable (yellow-green) to the Getest's voltage terminals (yellow-green). Run the other end to the weights, one cable for each weight. Arrange the weights one metre apart from each other, simulating the passage of a person. The step and contact measurements are taken... -
Page 20: Contact Voltage
GETEST in places where dangerous voltages could appear if the installation suffers an earthing fault (around the centre, within the centre, etc.). The recommended distance between the hardware earthing and the auxiliary earthing is 5 times the diagonal of the substation or transformer substation premises. The... -
Page 21: Earth Resistance
GETEST Once the connections are made, select contact voltage mode in the PDA and enter the maximum fault current (value provided by the supply company). 7.3.- EARTH RESISTANCE Earth pick Pouring water around the auxiliary earth (spike system) and increasing the number of spikes are measures that can solve the problem (safety measures must be maintained when using/transporting water in electrical installations). -
Page 22: Pc Connection
GETEST PC CONNECTION The use of a PDA to control the MPC allows you to store the data in the PDA's memory and transfer them to a PC once the measurements have been taken to process them or create a report "Windows Mobile"... -
Page 23: Maintenance And Technical Service
10.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel.: 902 449 459 (Spain) / +34 937 452 900 (outside of Spain) -
Page 24: Guarantee
Therefore, special care must be taken to not surpass these usage conditions. CIRCUTOR accepts no liability for possible damage to unit or other parts of the installation, therefore it will not cover any possible penalties resulting from possible failure, improper installation or "improper usage"...
