Summary of Contents for Circutor T-3V

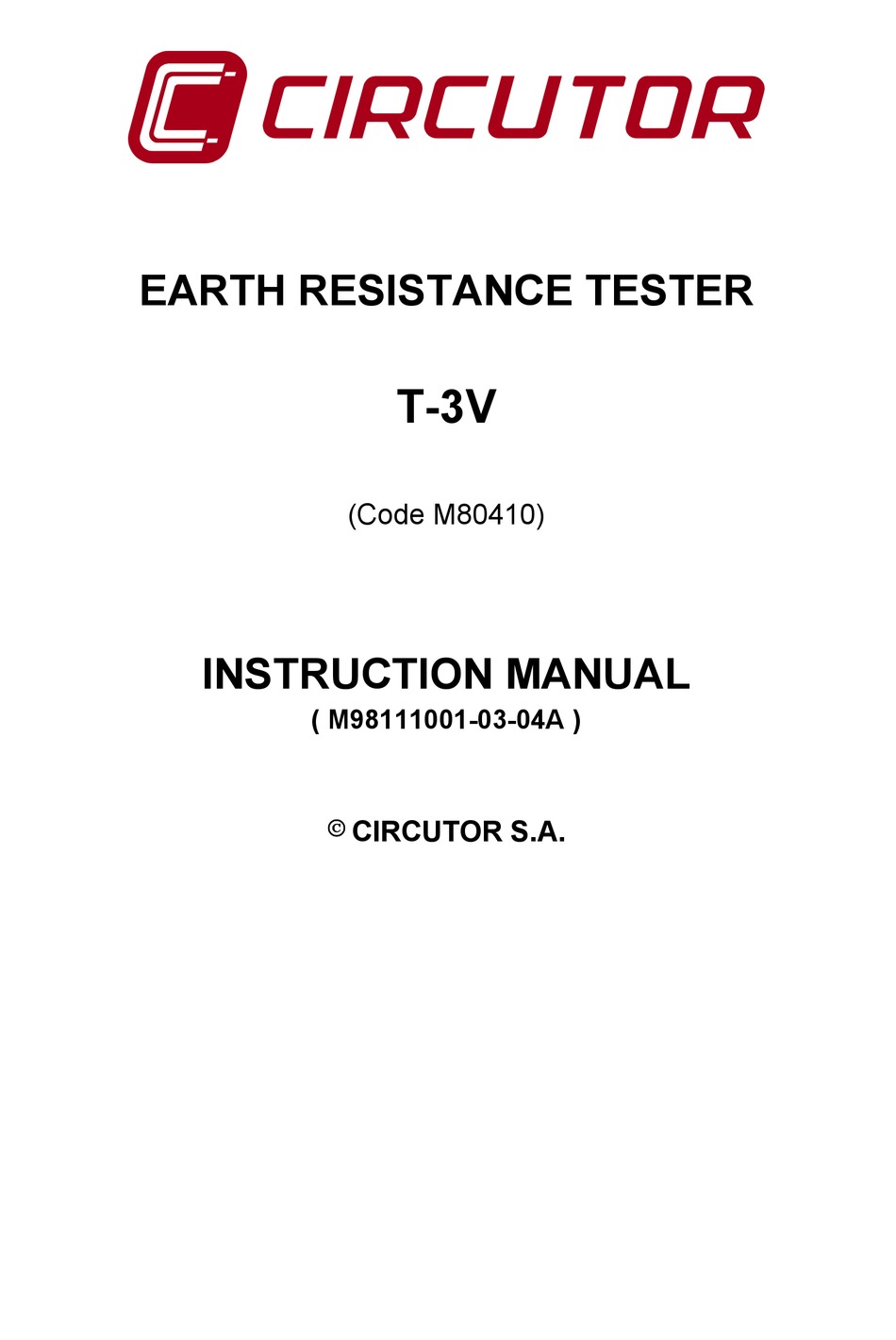

- Page 1 EARTH RESISTANCE TESTER T-3V (Code M80410) INSTRUCTION MANUAL ( M98111001-03-04A ) CIRCUTOR S.A.
-
Page 2: Table Of Contents
T-3V --------- EARTH RESISTANCE TESTER ------- Page No. T-3V ANALYZER CONTENTS page No. GENERAL REMARKS........................2 1.1.- Description ........................2 1.2.- Specifications ........................ 3 SAFETY ADVICE ........................4 INSTRUCTIONS FOR USE......................5 3.1.- Description of the controls and the parts ................ 5 3.2.- Use.......................... -
Page 3: General Remarks
61268-1010 (EN61010) and other safety standards. Please follow all advice to ensure safe operation. 1.1.- Description Some of the most important features of the the T-3V are: Ability to measure earth voltage. The 2 mA measurement current allows floor resistivity to be tested without tripping the earth circuit breakers in the circuit to be checked. -
Page 4: Specifications
T-3V --------- EARTH RESISTANCE TESTER ------- Page No. 1.2.- Specifications Ground earth resistance using constant Measuring system current inverter. 800 Hz, 2 mA approx. 0-200 V AC., 40 – 500 Hz. Earth voltage Range and resolution: Floor resisitivity 0 ~ 20 Ω (0.01 Ω) 0 ~ 200 Ω... -
Page 5: Safety Advice
T-3V --------- EARTH RESISTANCE TESTER ------- Page No. 2.- SAFETY ADVICE Carefully read the following safety information before using the tester. Only use the tester as specified in this manual; otherwise the protection offered by the tester may be decreased. -
Page 6: Instructions For Use
T-3V --------- EARTH RESISTANCE TESTER ------- Page No. 3.- INSTRUCTIONS FOR USE 3.1.- Description of the controls and the parts Female connector for earth connection Operating open circuit indicator Reading memory switch Timer deactivation button LCD Display Female connectors for “line” conductor... -
Page 7: Use
T-3V --------- EARTH RESISTANCE TESTER ------- Page No. 3.2.- Use Before starting measurements, carefully read the Safety Advice section. Connecting the test pins: Connect the green, yellow and red test pins to the terminals E, P and C with the earth rods P1, C1 placed in the ground "in a straight line"... -
Page 8: Maintenance
4.3.- 5 TECHNICAL SERVICE In the event of any equipment failure or any operational queries please contact the technical service of CIRCUTOR S.A. CIRCUTOR S.A. - After sales service Vial Sant Jordi, s/n 08232 – 08232 Viladecavalls tel.
