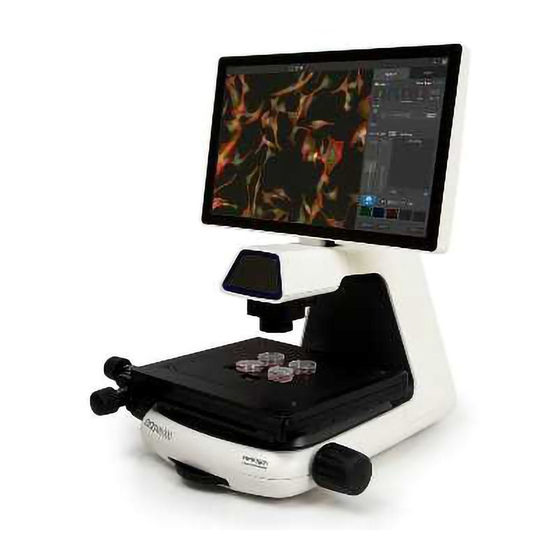

EVOS
M5000 Imaging System
™
Pub. No. MAN0017765
This document is intended as a benchtop reference for the users of the EVOS
For detailed instructions and troubleshooting information, refer to the EVOS
MAN0017563). For installation instructions, refer to the EVOS
MAN0017783). These documents are provided on the USB flash drive and are also available for download at
thermofisher.com.
Note: For safety and biohazard guidelines, see the "Safety" appendix in the EVOS
(Pub. No. MAN0017563). Read the Safety Data Sheets (SDSs) and follow the handling instructions. Wear appropriate
protective eyewear, clothing, and gloves.
Graphical user interface (GUI) .......................................................................................... 1
Capture tab ...................................................................................................................... 2
Review tab ....................................................................................................................... 7
Settings ............................................................................................................................ 8
Instrument exterior components and mechanical controls .............................................. 10
Technical specifications .................................................................................................. 11
Related documentation and support .............................................................................. 12

Graphical user interface (GUI)

GUI layout

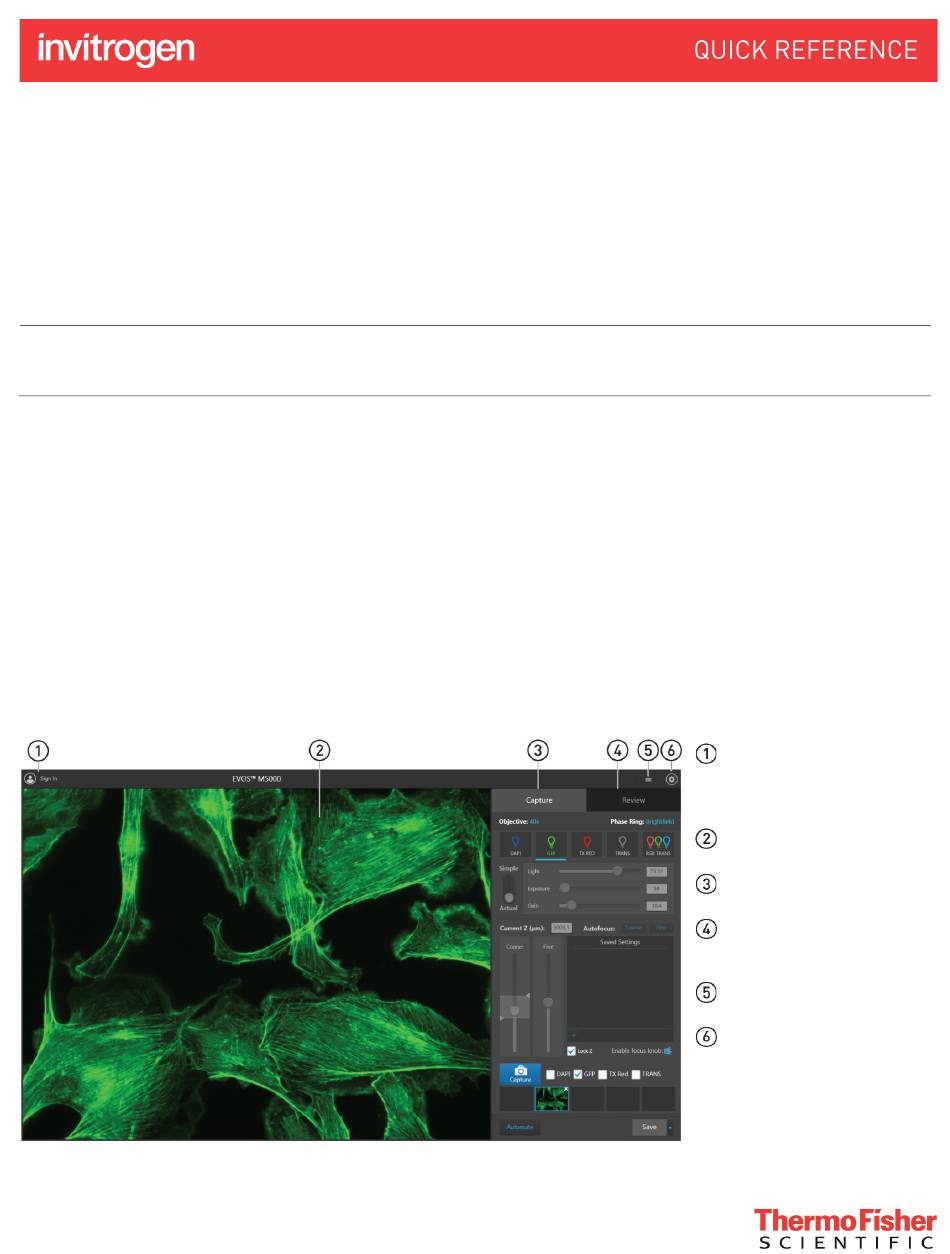

The GUI of the system consists of the Viewing area on the left and function tabs and buttons on the
right. Each tab and button opens the controls necessary to execute the selected function.
For Research Use Only. Not for use in diagnostic procedures.
Doc. Part No. 710209
Rev. B.0
M5000 Imaging System Installation Guide (Pub. No.
™
™
M5000 Imaging System (Cat. No. AMF5000).
™
M5000 Imaging System User Guide (Pub. No.
™
M5000 Imaging System User Guide
Sign In/User: Allows you to
sign in to the Thermo Fisher
Cloud for image storage and
analysis.
Viewing area: Displays the
sample.
Capture tab: Contains the
controls for image capture.
Review tab: Allows you to
review and annotate
captured images.
Keyboard button: Opens the
virtual keyboard.
Settings button: Opens the
Settings tab, which allows
you to select and adjust
basic and advanced system
settings.
