Maxq 4000 incubated and refrigerated shakers shke4000 and shka4000
Hide thumbs Also See for MaxQ SHKA4000:
Table of Contents

Advertisement

Quick Links

Visit us online to register your warranty
www.thermoscientific.com/labwarranty
M Q 7000 Sh k

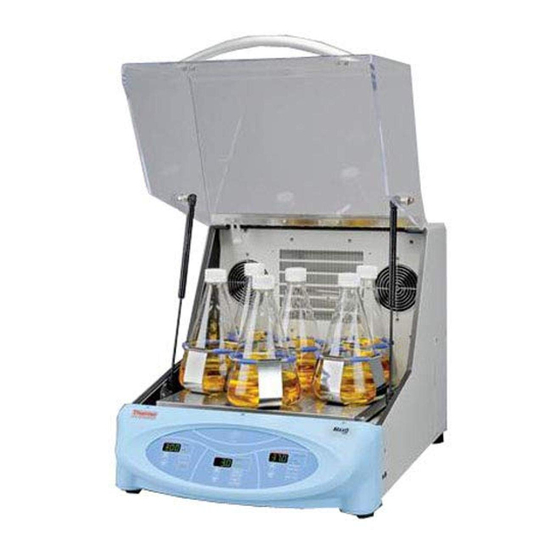

MaxQ 4000 Incubated and
Refrigerated Shakers
Models SHKE4000 and SHKA4000
Operating Manual and Parts List 057-287-00 (7004342) Rev. 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MaxQ SHKA4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Thermo Scientific MaxQ SHKA4000

Summary of Contents for Thermo Scientific MaxQ SHKA4000

  • Page 1 M Q 7000 Sh k MaxQ 4000 Incubated and Refrigerated Shakers Models SHKE4000 and SHKA4000 Operating Manual and Parts List 057-287-00 (7004342) Rev. 16 Visit us online to register your warranty www.thermoscientific.com/labwarranty...
  • Page 2 Updated warranty information 31361 7/18/14 Removed CE reference from pg 2-5 31164/OS-775 7/9/14 Added care and cleaning of acrylic lid to Section 3 30954 4/10/14 Updated Setting TImer for Continuous Shaking Step 3 - pg 5-6 Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 3 Thermo Fisher Scientific makes no representations or warranties with respect to this manual. In no event shall Thermo be held liable for any damages, direct or incidental, arising out of or related to the use of this manual. ©2010 Thermo Fisher Scientific. All rights reserved. Incubated and Refrigerated Shakers Thermo Scientific...
  • Page 4 Always use the proper protective equipment (clothing, gloves, goggles, etc.) Always dissipate extreme cold or heat and wear protective clothing. Always follow good hygiene practices. Each individual is responsible for his or her own safety. Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 5 We can also provide you with a quotation on our Extended Warranty for your Thermo Scientific products. Whatever Thermo Scientific products you need or use, we will be happy to discuss your applications. If you are experiencing technical problems, working together, we will help you locate the problem and, chances are, correct it yourself...over the telephone without a service...

  • Page 6: Table Of Contents

    Defrost Timer ......... 5-11 Thermo Scientific...
  • Page 7 Ordering Procedures ........8-3 Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 8: Safety Information

    Your Thermo Scientific MaxQ 4000 Shaker has been designed with function, reliability, and safety in mind. It is your responsibility to install it in conformance with local electrical codes.

  • Page 9: Section 1 Safety Information

    Do not operate with known defects. 10. Do not use the shaker to mix flammable materials or where the transfer of mechanical energy to glass could cause glass breakage. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 10: General Specifications

    Frequency 50/60 50/60 High Temperature Voltage AC 220-240 220-240 Amperage Wattage 1100 1200 1100 1100 Frequency 50/60 50/60 50/60 50/60 Refrigerated Voltage AC 220-240 220-240 Amperage 14.0 14.0 Wattage 1500 1500 1500 1500 Frequency Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 11: Section 2 General Specifications

    Orbital shakers are designed to provide increased aeration in a stable temperature environment. Unintended Use 1) Not intended for use in Class I or II applications as defined in 21 CFR 2) Not intended for mixtures of flammable materials Incubated and Refrigerated Shakers Thermo Scientific...
  • Page 12 The speed display will flash “bAL” on will flash “bAL” on speed panel LED. speed panel LED. Optional Platform Dimensions - in. (cm) Catalog Number L xW 30110 Universal 18” x 18” (45.7 x 45.7 cm) Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 13 10°C above ambient to 80°C, ±0.1°C at 37°C in flask. Refrigerated: SHKA4000-7, SHKA4000-8CE, SHKE4000-7, SHKE4000-8CE, 15°C below ambient to 60°C, ±0.1°C at 37°C in flask. Refrigeration system needs to be turned off whenever the set point is at or above 32°C. Incubated and Refrigerated Shakers Thermo Scientific...
  • Page 14 Product Usage ....Indoor use only **Refer to IEC 664-1 Caution Operation of the shaker in a CO2 enriched atmosphere is not recommended. The formation of carbonic acid could cause electrical failures. Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 15 The following model is designed for use with the following amounts of flu- orinated greenhouse gases: Model Refrigerant Amount (kg) SHKE4000-8CE R-134a 0.227 1430 Declaration of Conformity Copies of the Declaration of Conformity are available upon request. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 16: Control Panels

    4. Speed Control: Sets platform rotation speed. 5. Power Switch: Turns power on and off to shaker. 6. Speed Tachometer: Analog display of platform rotation speed. 7. Time(r): Allows user to choose either continuous or timed operation. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 17: E-Class Control Panel Features

    13. Set Time: Illuminates when time is being set 14. Timer/Elapsed: Allows the user to choose elapsed time operation, elapsed, or timed operation, timer. 15. Hours/Minutes Switch: Allows user to choose timing operation in either hours or minutes Incubated and Refrigerated Shakers Thermo Scientific...
  • Page 18 23. Water Light: This display has no function on this unit 24. Heat On Light: Indicates heaters are energized 25. Set Temp Light: Indicates temperature can be set 26. Heat On Switch: Turns on heat 27. Heat Off Switch: Turns off heat Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 19: Unpacking And Installation

    2” (5 cm) of clearance around the unit for free air convection, accessory attachments and user convenience. Shakers with refrigeration should be placed near an accessible drain. Route the drainage tube on the back of the unit to this drain. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 20: Platform Installation

    3. Position one of the thumbscrews provided through each of the 4- platform mounting holes and tighten securely. Caution Do not operate shaker with an unbalanced load. Platforms should be loaded for optimum stability and operation. Do not lift shaker by the platform. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 21: Test Tube Rack Installation

    Installation mounting holes on the platform. There are two cutouts on each side of the rack. 2. Secure the rack to the platform with mounting screws provided with the rack. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 22: Operation

    2. For timed operation, rotate timer knob clockwise from 1 minute to 60 minutes. The markings on the side of the dial are in 5-minute increments. Note Shaker will not operate if the timer is in the Off position. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 23: Temp Controller -Setting Temperature

    Press and hold the “star” (*) key and use either the up or down arrow key to adjust the set point to the desired temperature. Release the “star” (*) key. b. Allow sufficient time for chamber temperature to stabilize. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 24: Temperature Calibration

    9. Allow the unit to run for at least an additional 30 minutes. 10. Re-check the thermometer reading. The controller display and the thermometer should agree to within ±0.5°C. If not, repeat Steps 6, 7 and 8. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 25: E-Class

    6. Use the up or down arrow keys to set the shaker speed to match the tachometer’s readout. 7. Press STOP key to enter the new speed value. 8. Press START key to exit Calibration mode. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 26: Temperature Calibration

    6. Press HEAT ON button and, while continuing to hold, press and release the HEAT OFF button. Now, release the HEAT ON button. 7. The decimal point should now be flashing indicating Calibration mode. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 27: Setting Timer For Continuous Shaking

    Timer will begin to count up and will display accumulated time in display window. Platform rotation will continue until operator presses the Stop button. The TIME display will flash when ELAPSED time reaches 999 minutes or 999 hours. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 28: Rs232 Communication Configuration

    7. Exit the program by clicking on “File” \ “Exit” \ “Yes”. 8. Verify the program was saved by going to “Start” \ “Programs” \ “Accessories” \ “Communications” \ “HyperTerminal” \ “Max Q Shaker.” 9. This completes the configuration of HyperTerminal. Go to Step 10. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 29: Setting High-Limit Control

    6. Rotate high-limit control slowly counterclockwise until set point is reached. • For A-Class shakers high-limit light will illuminate when set point is reached. Rotate high limit control clockwise until status lamp goes out. Make an additional 1/8 turn clockwise beyond this point. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 30: Setting Low-Limit Control (Refrigerated)

    6. Continue rotating the low-limit control about 5° of rotation to set it about 1°C to 3°C below the set point, the low-limit status lamp will extinguish and the temperature control status lamp stays lit. 7. When desired temperature is achieved, load the shaker. Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 31 (i.e. 5°C), this defrost time will be longer than higher set point temperatures (i.e. 25°C), which may initiate and terminate immediately because the coils will be much warmer at higher set point temperatures. 5-10 Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 32: Defrost Timer

    4. Fan Delay Status Lamp (Fans) - During defrost timer power-up and after defrost cycle, the circulating fan is locked off for a 1½ minute delay. Green fan status lamp flashes during this fan delay period. Thermo Scientific Incubated and Refrigerated Shakers 5-11...

  • Page 33: Maintenance

    Note The shaking mechanism is equipped with sealed ball bearings which do not require further lubrication or adjustment. Note Make no attempt to service or repair a Thermo Scientific product under warranty before consulting your distributor. After the warranty period, such consultation is still advised, especially when the repair may be technically sophisticated or difficult.

  • Page 34: Platform Mounting Plate

    Remove the platform by loosening 4, thumbscrews in the platform center. Remove the sheet metal panel (9 screws) under the platform to expose the belt and interior parts. Inspect the drive belt for wear. Order a replacement if necessary. Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 35: For A-Class Series Only

    Then wipe with a damp cloth to help eliminate electrostatic charges that can attract dust particles. Use of proper cleaning agents: When selecting a cleaning or decontamination agent, use the following table as a guideline. Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 36 Sulfuric Acid (30%) Ethylene Glycol Sulfuric Acid (Conc.) Gasoline Toluene Glycerine Transformer Oil Heptane Trichloroethylene Hexane Turpentine Hydrochloric Acid Water Hydrofluoric Acid (25%) Xylene R = Resistant LR = Limited Resistance N = Not Resistant Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 37: Troubleshooting

    Replace if worn, broken or slipped Check drive belt. off pulley. A-Class, check for power to speed control. Replace if defective. Shaker won’t heat E-Class make sure “HEAT ON” lamp is lit. Push “HEAT ON” button. Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 38: Replacement Parts

    ALL UNITS Heater, 120V 340-394-00 SHKE4000-5, SHKE4000-6CE Heater, 240V Hi-Temp 340-398-01 ALL UNITS Idler 803-633-00 ALL UNITS Immersible RTD Temp sensor 410-632-00 ALL SHKA4000 UNITS Knob 560-275-00 ALL SHKA4000 UNITS Knob, Locking Tab 600-125-00 Thermo Scientific Incubated and Refrigerated Shakers...

  • Page 39: Section 8 Replacement Parts

    CN71X129P SHKA4000-6CE RPO Configured Temp Controller, 240V CN71X130P SHKA4000-8CE RPO Configured Temp Controller, 240V CN71X131P ALL UNITS Thermostat 920-301-00 ALL UNITS Thumb Screw 562-184-10 ALL SHKA4000 UNITS Timer 270-135-00 ALL UNITS Defrost Timer 270-108-00 Incubated and Refrigerated Shakers Thermo Scientific...

  • Page 40: Ordering Procedures

    All parts listed herein may be ordered from the Thermo Scientific dealer from whom you purchased this unit or can be obtained promptly from the factory.When service or replacement parts are needed, check first with...
  • Page 41 Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 42 Section 9 Warranty Information Incubated and Refrigerated Shakers Thermo Scientific...
  • Page 43 Section 9 Warranty Information Thermo Scientific Incubated and Refrigerated Shakers...
  • Page 44 Section 9 Warranty Information Incubated and Refrigerated Shakers Thermo Scientific...
  • Page 45 thermoscientific.com © 2014 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientific and its subsidiaries. Specifications, terms and pricing are subject to change. Not all products are available in all countries. Please consult your local sales representative for details.
