  • Page 1 1923420E Operation instructions • english 0547 Gebrauchsanweisung • deutsch Gebruiksaanwijzing • nederlands Manuel d’utilisation • français KEMPPI PRO EVOLUTION...

  • Page 2: Table Of Contents

    Changing of parameters in SETUP change mode ............18 3.11.3. Storing SETUP parameters into MXE memory channels ..........18 DISPOSAL OF THE MACHINE ..................19 TERMS OF GUARANTEE ..................... 19 2 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...

  • Page 3: Preface

    first time. For further information on Kemppi products please contact us or your nearest Kemppi distributor. The specifications and designs presented in this manual are subject to change without prior notice.

  • Page 4: Operation Safety

    Take care that there is sufficient ventilation during welding. Take special safety precautions when welding metals which contain lead, cadmium, zinc, mercury or beryllium. INSTALLATION 2.1. INSTALLATION INSTRUCTIONS 2.1.1. MXE delivery package contains: A. MXE control panel B. This users manual 4 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...

  • Page 5: Mxe Installation

    (4) from minimum values to maximum values and the arc is kept stable. Syner- gic MIG/MAG welding requires selection of a correct material curve before welding. © KEMPPI OY KEMPPI PRO EVOLUTION, MXE / 0547 – 5...

  • Page 6: Synergic Pulsedmig Welding

    OFF mode to ON mode and store the currently welded values without repeating the above steps a - e. g) By pressing the keys simultaneously (42), you go over from ON mode directly to OFF mode. 6 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...

  • Page 7: Setup Function

    Al group: aluminium-based filler wires, Ss group: stainless filler wires and X group: special wires. Synergic welding functions are marked with red colour. Enclosed tables for 1-MIG and PulsedMIG synergic curves: © KEMPPI OY KEMPPI PRO EVOLUTION, MXE / 0547 – 7...
  • Page 8 8 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...
  • Page 9 © KEMPPI OY KEMPPI PRO EVOLUTION, MXE / 0547 – 9...
  • Page 10 10 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...
  • Page 11 © KEMPPI OY KEMPPI PRO EVOLUTION, MXE / 0547 – 11...

  • Page 12: Mxe Functions

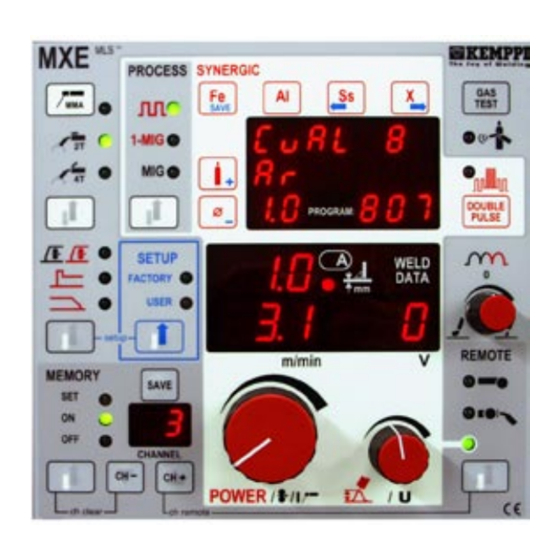

    14. Selection and display for shielding gas you are using. 15. Selection key and display for wire diameter. 16. Program numerical display. Note! Synergic functions are marked with red colour. 12 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...

  • Page 13: 1-Mig Or Pulsedmig Synergic Curve Is Selected As Follows

    PROMIG 100 sub-feeder. 27. Control selection key. Note! You cannot select remote control mode or gun remote control mode if the control unit is not connected to the welding equipment. © KEMPPI OY KEMPPI PRO EVOLUTION, MXE / 0547 – 13...

  • Page 14: Double Pulse

    The gas flow will cease when you press the same key again or the gun trigger. If you do not press the key again, gas flow will cease automatically in 20 seconds. 14 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...

  • Page 15: Mxe Memory Channels, Memory

    39 (= direct storing of currently welded values into memory). You can go directly from ON to OFF mode by simultaneous pressing (42) of keys 37 and 38. channel selection 1, 2, 3, 4, 5 fine control channel selection 1, 2, 3, 4, 5 © KEMPPI OY KEMPPI PRO EVOLUTION, MXE / 0547 – 15...

  • Page 16: Presettings Of Welding Parameters, Setup

    USER mode: Use welding parameters changed by the user. c) SETUP change mode: Mode in which parameters are changed and stored into memory. 3.11.1. SETUP functions in MXE 16 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...
  • Page 17 0…9.9V Restoring of factory rEStOrE Restores factory settings to User settings FAC ALL parametres (* Since Promig program version 0A5 (** Since Promig program version 0A6 © KEMPPI OY KEMPPI PRO EVOLUTION, MXE / 0547 – 17...

  • Page 18: Changing Of Parameters In Setup Change Mode

    Return to memory function by another pressing (50). j) Start welding, adjust the values if needed and store with SAVE key. k) Leave SET function mode by pressing 37. 18 – KEMPPI PRO EVOLUTION, MXE / 0547 © KEMPPI OY...

  • Page 19: Disposal Of The Machine

    Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor.
