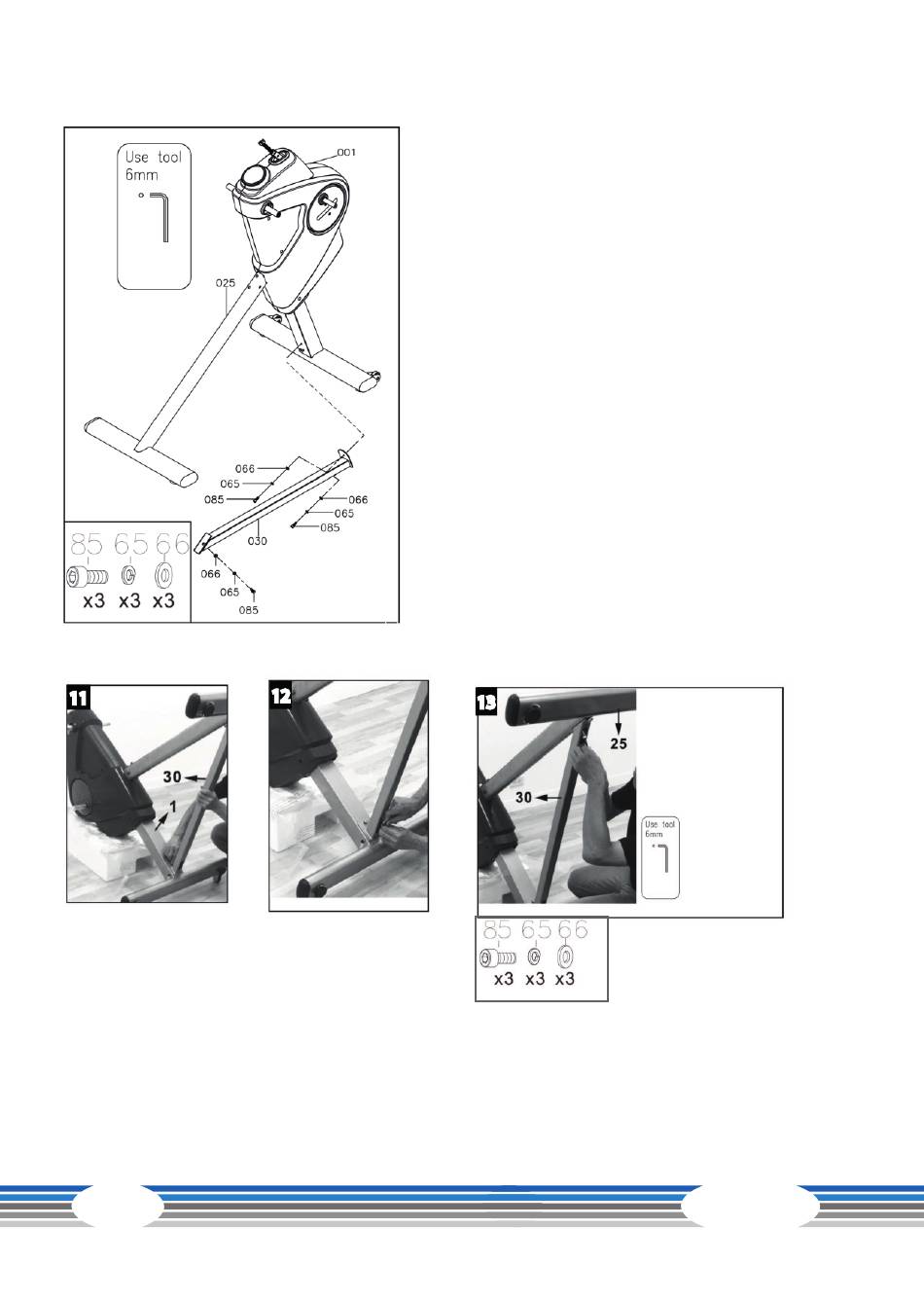

Step 4 Assembly of support tube
See fig. 11 to 13 for the following steps:
(1) Mount the support tube (30) on the main frame (1) by
means of a screw (M8 x p1.25 x 20), (85), a lock washer (M8)
(65), and a washer (M8 x 16 x 2.0t) (66).
Note:
Tighten the screw (85) only after the first point of the
assembly step 5.
(2) Mount another screw (85), a lock washer (65), and a
washer (66) at the bottom of the support tube (30).
Note:
Tighten the screw (85) only after the first point of the
assembly step 5.
(3) Mount the support tube (30) on the rear base (25) by
tightening another screw (85), a lock washer (65), and a
washer (66) on top of the support tube (30).
12
11
13
