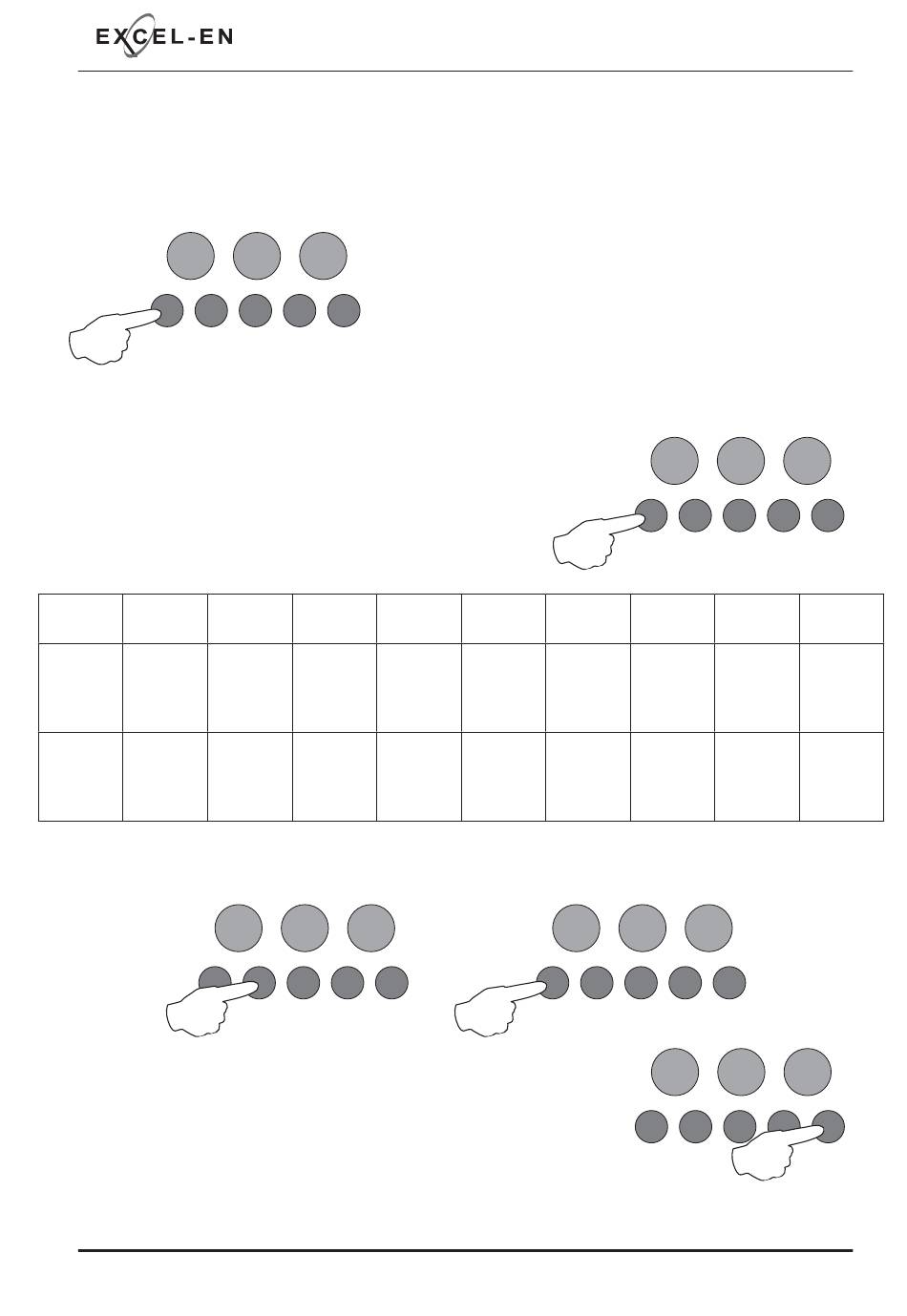

Enter the code 3 1 2 1 and press the ENTER button.
The zone 1 fi re LED will light. This indicates setting zone function attributes for zone 1. The amber, fault
LEDs will show the current settings for that zone.
RESOUND
1 2
Disable Test
Mode Mode
With the required zone for editing LED lit, press the ENTER button to enter 'editing mode'.
The fi re zone 1 LED will now pulse to indicate the editing of
attribute 1 (fi re latching) for the selected zone.
Use button 1 to scroll to the attribute that requires editing,
inidicated by a pulsing fi re LED 1 - 9 as per table below.
The setting of the attribute is indicated by the amber, fault LED,
ON or OFF.
Fire LED
LED 1 LED 2
(pulsing)
Short
Fire
Attribute
circuit as
latching
fi re
Amber
fault LED
ON OFF
(default
setting)
Use button 2 to switch the attribute ON or OFF, indicated by the amber, fault LED, then use button 1 to
move to the next attribute if required.
1
Disable
Mode
Press the ENTER button to return back to the zone selection, indicated
by a steady zone fi re LED
When fi nished all the zone function programming, enter the next programming code or disable the controls
and return DIL switch 2 to 'OFF'.
Excel-EN Installation, Commissioning & Operating Manual
SILENCE RESET
Use button 1 to move to the zone that requires editing.
3 4
ENTER
Mute Test
Buzzer Lamps
LED 3 LED 4
I.S Silent
operation mode
OFF OFF
RESOUND SILENCE RESET
2 3 4
ENTER
Test Mute Test
Mode Buzzer Lamps
SETUP & PROGRAMMING
LED 5 LED 6
Detector
Priority
removal
alarm
monitoring
ON ON
RESOUND SILENCE
1 2
Disable Test
Mode Mode
