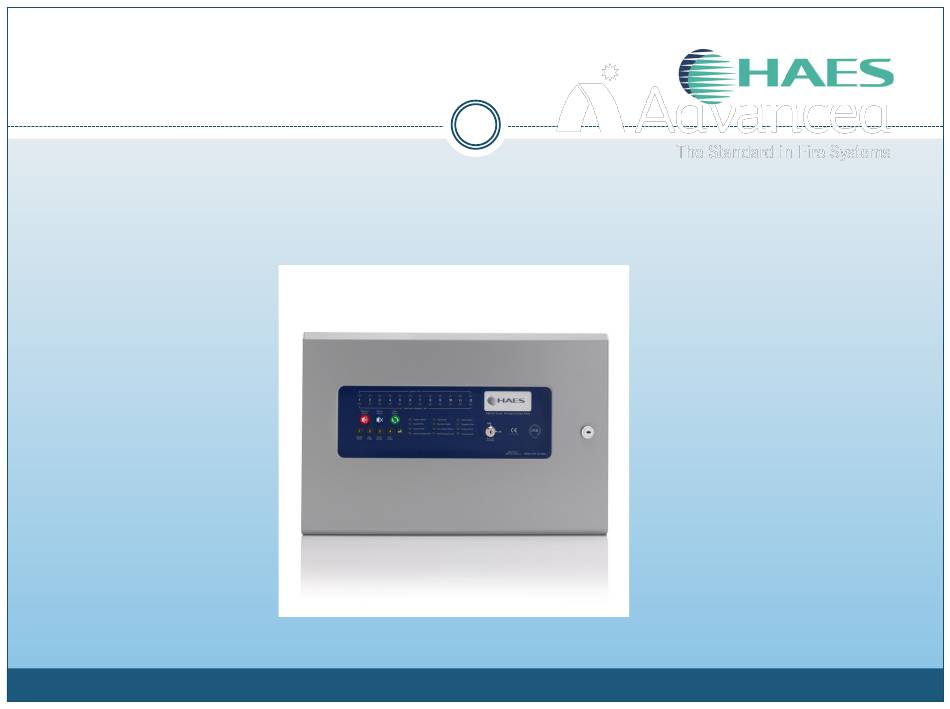

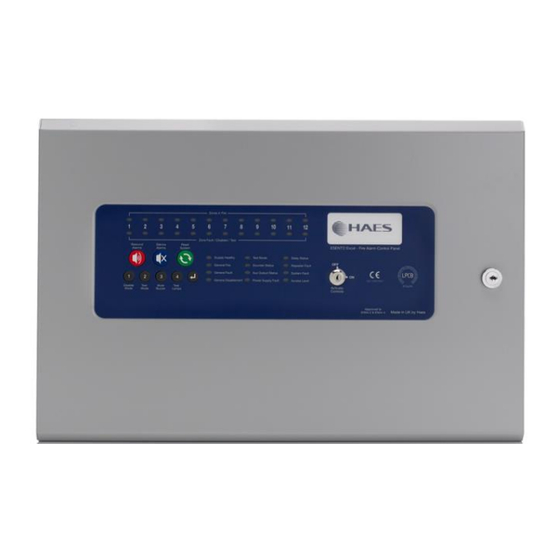

- Page 1 Esento XL network setup tutorial...
- Page 2 TPCA05 Network card installation...
- Page 3 ▪ Step 4 - Re-attach display ribbon cable into 10 way header on network card. Step 5 – Turn on dil switch 7 (Esento xl) or dil switch 3 (Esento Evoque) ▪ Step 6 – Re-apply mains and batteries to panel. (panel should be clear of any ▪...
- Page 4 Fault tolerant & legacy wired networks ▪ The network can have up to 7 slave panels and 8 repeaters. ▪ The master panel will always be set as address 0. Slaves will be addressed from 1 to 7. Repeaters will be addressed from 1 to 8. ▪...
- Page 5 Network Programming Step 1 – turn on access key. ▪ Step 2 – turn on programming switch, Dil switch 6 (Esento XL) & Dil switch 2 (Evoque) ▪ Step 3 – enter code 2123. ▪ Step 4 – select option 2 (fire led 2) using button 1 to move and press enter to edit, use ▪...
- Page 6 Repeater PSU by-pass ▪Standard 12 zone repeaters can be powered by 24v dc from the master panel by utilising an extra 2 core fire rated cable. ▪The internal power supply module must be by-passed and the 24v from the master panel should be fed directly into the repeaters main pcb. ▪Note - in this mode no batteries should be fitted to the repeater.
- Page 7 End of tutorial...
