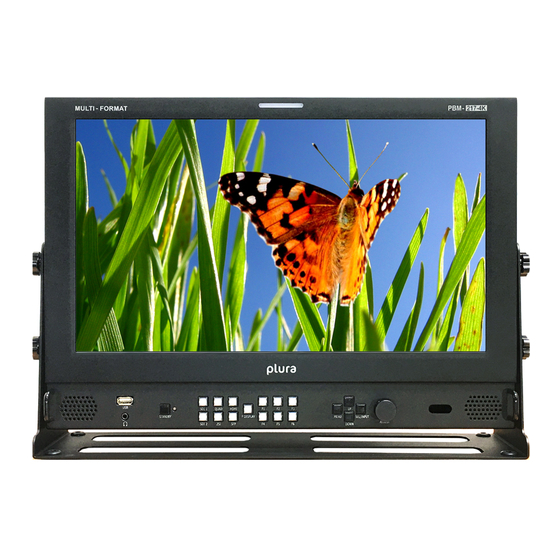

Plura PBM-4K Series Operating Instructions Manual

Plura PBM-4K Series Operating Instructions Manual

Hide thumbs Also See for PBM-4K Series:

Advertisement

Quick Links

Operating
Instructions
PBM-4K Series
PBM-4K Series
PBM-217-4K
PBM-224-4K
PBM-324-4K
PBM-232-4K
PBM-243-4K
PBM-249-4K
PBM-255-4K
PBM-265-4K
PBM-286-4K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBM-4K Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Plura PBM-4K Series

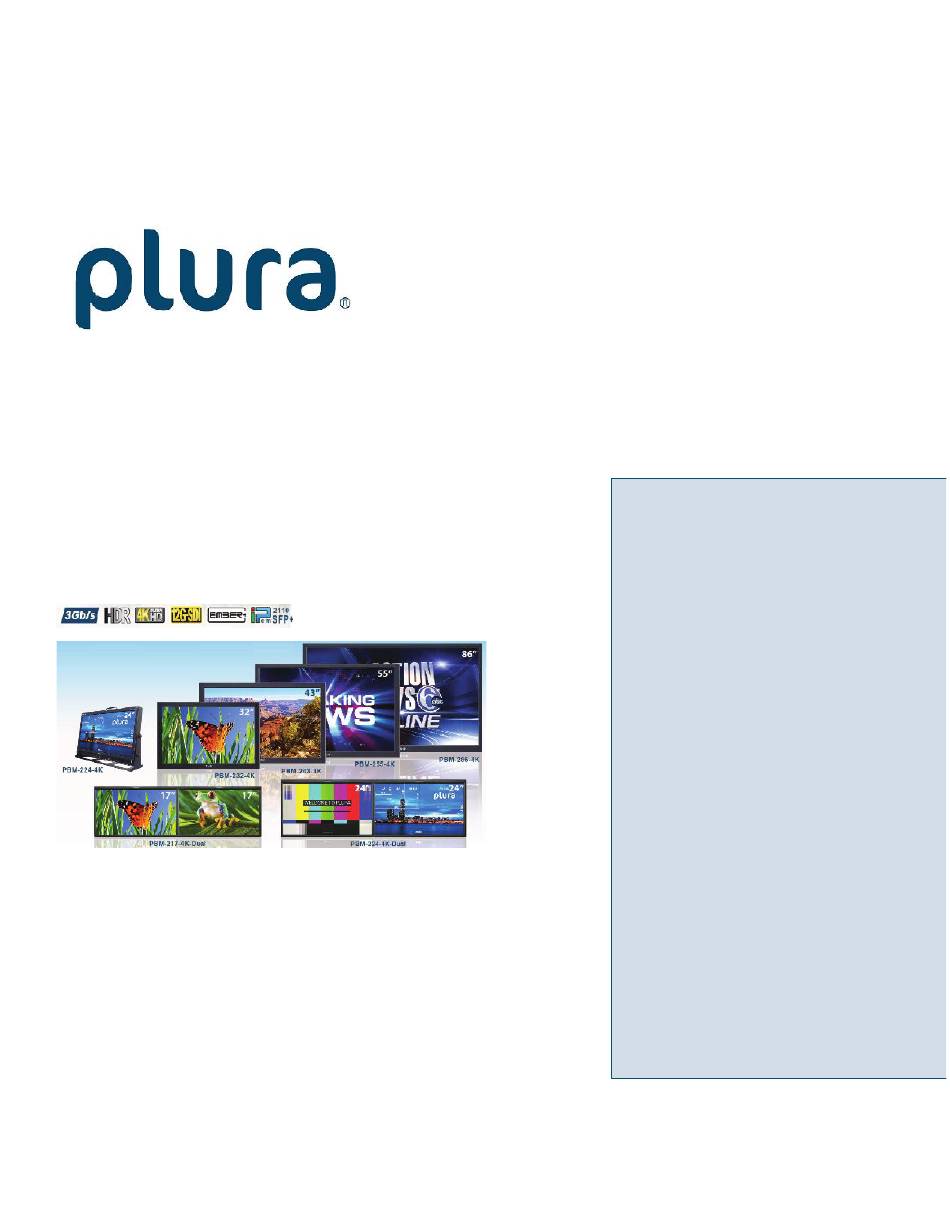

  • Page 1 Operating Instructions PBM-4K Series PBM-217-4K PBM-4K Series PBM-224-4K PBM-324-4K PBM-232-4K PBM-243-4K PBM-249-4K PBM-255-4K PBM-265-4K PBM-286-4K...
  • Page 2: Table Of Contents

    Users’ Manual: PBM-4K Series Table of Contents  PREACUTION -------------------------------------------------------------------------------------------------------- 5  OVERVIEW----------------------------------------------------------------------------------------------------------- 8  ADVANCED FEATURES --------------------------------------------------------------------------------------------- 8  FUNCTIONAL EXPLANATION OF EACH PART-------------------------------------------------------------------10 ------------------------------------------------------------------------------------------------------- 10 RONT ANEL  PBM-224-4K---------------------------------------------------------------------------------------------------- 10  Front Keys Arrangements ------------------------------------------------------------------------------------- 10  Front Keys Operations ----------------------------------------------------------------------------------------- 11 ...
  • Page 3 Users’ Manual: PBM-4K Series ------------------------------------------------------------------------------------------------------------- 18 DJUST -------------------------------------------------------------------------------------- 18 OLOR EMPERATURE ONTROL ------------------------------------------------------------------------------------------------------ 19 SPECT ATIO ------------------------------------------------------------------------------------------------- 19 ----------------------------------------------------------------------------------------------------- 20 EAKING ILTER ------------------------------------------------------------------------------------------------------- 20 ALSE OLOR HDR M -------------------------------------------------------------------------------------------------------- 20 ----------------------------------------------------------------------------------------------------- 21 UTPUT ANGE AUDIO MENU OPTIONS ------------------------------------------------------------------------------------------21 SDI O...
  • Page 4 Users’ Manual: PBM-4K Series ---------------------------------------------------------------------------- 31 APTION ORTH MERICAN ARKET ID ------------------------------------------------------------------------------------------------------------- 32 ------------------------------------------------------------------------------------------------------- 32 IDEO ANGE 13. OSD TREE -----------------------------------------------------------------------------------------------------------33 -------------------------------------------------------------------------------------------------------------- 34 IDEO -------------------------------------------------------------------------------------------------------------- 35 UDIO ------------------------------------------------------------------------------------------------------------ 36 ARKER GPI ---------------------------------------------------------------------------------------------------------------- 37 -------------------------------------------------------------------------------------------------------------- 38 ETUP 14. MECHANICAL DIMENSION ---------------------------------------------------------------------------------------39...
  • Page 5: Preacution

    Users’ Manual: PBM-4K Series  PREACUTION Before operating this unit, please read this manual carefully. WARNING: To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable parts inside. Refer any service matters to qualified service personnel.
  • Page 6 This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 7 Users’ Manual: PBM-4K Series If the product exhibits a distinct change in performance. 17. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition and the warranty seal is provided 18.
  • Page 8: Overview

    (i.e. additional features and functionalities) can and will be implemented in the field via the Ethernet interface. The PBM-4K series comes in multiple sizes 17”, 24”, 32”, 43”, 55” & 65” & 84”, all sizes offer the extensive and well-know Plura prominent features.
  • Page 9 Users’ Manual: PBM-4K Series Various and User defined Markers Display, Safe Area   Programmable 6 User Front Pushbutton Controls & GPI  Closed Caption (608/708) – North American Market Cutting edge De-interlacing and Scaling Technology  Fast Response Time for high motion video ...
  • Page 10: Functional Explanation Of Each Part

    Users’ Manual: PBM-4K Series  Functional explanation of each part 1. Front Panel Tally LED PBM-224-4K  Speaker Headphone Front Key Front Keys Arrangements  Page 10 of 43...
  • Page 11: Front Keys Operations

    Users’ Manual: PBM-4K Series Front Keys Operations  Key Name Operation ►Power ON/OFF Button. STANDBY SDI 1 ► Select SDI 1. SDI 2 ► Select SDI 2. QUAD ► Select QUAD. ► Select 2SI. HDMI ► Select HDMI. ► Select SFP.
  • Page 12: Rear Panel

    Users’ Manual: PBM-4K Series 2. Rear Panel I/O Details  DC Battery IN  PIN NO Description 2 , 3 DC IN 12V PBM-217-4K ONLY DC IN 24V PBM-224-4K & PBM-324-4K ONLY 12-24V RJ-45 Connections  CONTROL LAN 1 CONTROL LAN 2...
  • Page 13: Interface Description

    Users’ Manual: PBM-4K Series - Firmware Upgrade/ System Controller / Ember+ (Ethernet) & GPI Remote PIN Assignment 8 PIN COMMON(GND) 4 PIN GPI 4 PORT GPI 7 PORT 7 PIN 3 PIN GPI 3 PORT (STAND BY/POWER ON/OFF) 6 PIN...
  • Page 14: Menu Overview

    Users’ Manual: PBM-4K Series 4. MENU OVERVIEW In this system menu, there are several ways to maneuver the menu settings. Most menus consist of three levels to select the necessary option, but some settings require greater depth. If you press the MENU button, the first and second level of the menu system will appear on the monitor screen.
  • Page 15: Basic Operation

    Users’ Manual: PBM-4K Series 5. BASIC OPERATION 1. Turning On the Monitor Firstly, make sure you have connected the AC power cord or DC XLR connector. The monitor will switch to standby or power on mode. If the monitor is in standby mode, press the ST-BY button to turn on the monitor.
  • Page 16: On Screen Menus Selection And Adjustment

    Users’ Manual: PBM-4K Series 6. On Screen Menus Selection and Adjustment 1. How to adjust the OSD screen 1. Press the MENU button and then UP/DOWN button to select each menu. button and then use UP/DOWN (SEL/INPUT)/MENU button to display the 2.
  • Page 17: Select Video Input

    Users’ Manual: PBM-4K Series • The monitor's OSD (On Screen Display) may differ slightly from what is shown in this manual. 7. SELECT VIDEO INPUT 1. How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the required video source.
  • Page 18: Picture Menu Options

    Users’ Manual: PBM-4K Series 8. PICTURE MENU OPTIONS 1. Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness range from -50 to 50 2. Color Temperature Control - For Setting the Color temperature or adjusting RGB gain value - User (User setting RGB gain value), VAR(3200K ~ 9300K), Most common value ( 9300K, 6500K, 5400K,3200K) and 3D LUT Calibration value(D65 –...
  • Page 19: Aspect Ratio

    Users’ Manual: PBM-4K Series 3. Aspect Ratio - For setting the aspect ratio. - Pixel to Pixel: Video input will match the video display resolution (NO Scaling). If input resolution is higher than panel resolution, the video will be downscaled to match the panel resolution.
  • Page 20: Peaking Filter

    Users’ Manual: PBM-4K Series 5. Peaking Filter -Peaking Filter: Peaking Filter On/Off. -Peaking Color: Red/Blue/White/Violet. -Peaking Level: 0~100. 6. False Color - False Color on/off 7. HDR Mode - ST 2084-300 / ST 2084-1000 / ST 2084-10000 / HLG - HDR Demo on/off...
  • Page 21: Output Range

    Users’ Manual: PBM-4K Series 8. Output Range - Normal (16~235)/Full (0~255) 9. AUDIO MENU OPTIONS 1. SDI Output Page 21 of 43...
  • Page 22: Level Meter

    Users’ Manual: PBM-4K Series - Select primary or secondary audio group to extract. (Group 1~4) - Audio output channel source select. (Channel1~4, Channel1/2, Channel3/4, off) 2. Level Meter - Display the audio level meter on screen in SDI input. -Pair: Respectively By Audio Pair (L&R) display -Group: Respectively By Audio Group display - Level Meter Position selects.
  • Page 23: Volume

    Users’ Manual: PBM-4K Series 3. Volume - Adjust the speaker or headphone Volume level. (0~32) Page 23 of 43...
  • Page 24: Marker Menu Options

    Users’ Manual: PBM-4K Series 10. Marker MENU OPTIONS 1. Marker & User Marker - Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 (Customized markers). - User Marker: The user defined Marker size setting. 2. Safety Area -Safety Area: Draw dotted line Marker on screen.
  • Page 25: Center Maker

    Users’ Manual: PBM-4K Series 3. Center Maker - “+” display Marker on center of screen 4. Marker Width -Marker line thickness setting. (0~10) 5. Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED, Black) - Marker Back Color: Select Marker Back Color.
  • Page 26: Gpi Menu Options

    Users’ Manual: PBM-4K Series 11. GPI MENU OPTIONS 1. GPI Control & GPI Ports - For programming selected functions to particular GPI ports. - GPI Controller can be utilized to remotely control the monitor. - GPI Control: GPI function Enable/Disable...
  • Page 27: Setup Menu Options

    Users’ Manual: PBM-4K Series Menu Key, Enter Key, Up Key, Down Key Use the key function by GPI. Left Key, Right Key Function key1 ~ 6 Function key1 ~ 6 H/V delay H delay, V delay, HV delay, Off Aspect Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1,...
  • Page 28: Function 1 ~6

    Users’ Manual: PBM-4K Series - Factory Default: User Reset. 2. Function 1 ~6 - Function 1~6: Select the required function to be allocated to the FUNCTION Keys 1, 2, 3, 4, 5, 6. Function1~6 button Description UNDEF Not set (no function allocated)
  • Page 29: On Screen Display

    Users’ Manual: PBM-4K Series 3. On Screen Display OSD Option   OSD Transparency: Disable blending OSD background with video image. OSD Time out: OSD time display setting. (3~200) Time code   Time code Enable: Time code Display (off/LTC/DVITC, SDI only) Time code size: Time code size select.
  • Page 30: Advanced

    Users’ Manual: PBM-4K Series  UMD BG Color: UMD BG color Select (RGB_255_192_128_Transparent) 4. Advanced - Information, Control, Screen Control, Network Configuration Information  - Version, Release day, Release time, operating time, FPGA Version Control  - FRONT LED: Front LED on/off - Local Enable: Power, up and down key is only operational, if Local enable is off.
  • Page 31: Network Configuration

    Users’ Manual: PBM-4K Series Inverter dimming Level select (0~100) -Gamma Select Gamma Level Select (0.8 ~ 3.0) - Internal Pattern: 100% Color Bars, 75% Color Bars, Luma, RGB, White, Black, RED, Blue, Green Network Configuration  DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply”...
  • Page 32: Set Id

    Users’ Manual: PBM-4K Series 6. Set ID - Set ID is required for remote control. Set ID range (01~99). 7. Video Range -Range Check: Range Check on/off. -Y Max: Maximum luminance level. -Y Min: Minimum luminance level. -C Max: Maximum chroma level.
  • Page 33: Osd Tree

    Users’ Manual: PBM-4K Series 13. OSD TREE Page 33 of 43...
  • Page 34: Video

    Users’ Manual: PBM-4K Series 1. Video Page 34 of 43...
  • Page 35: Audio

    Users’ Manual: PBM-4K Series 2. Audio Page 35 of 43...
  • Page 36: Marker

    Users’ Manual: PBM-4K Series 3. Marker Page 36 of 43...
  • Page 37: Gpi

    Users’ Manual: PBM-4K Series 4. GPI Page 37 of 43...
  • Page 38: Setup

    Users’ Manual: PBM-4K Series 5. Setup Page 38 of 43...
  • Page 39: Mechanical Dimension

    Users’ Manual: PBM-4K Series 14. Mechanical Dimension PBM-217-4K  *AutoCad.dwg available upon request PBM-224-4K / PBM-324-4K  *AutoCad.dwg available upon request PBM-232-4K  *AutoCad.dwg available upon request Page 39 of 43...
  • Page 40 Users’ Manual: PBM-4K Series PBM-232-4K-N  *AutoCad.dwg available upon request PBM-249-4K  *AutoCad.dwg available upon request Page 40 of 43...
  • Page 41 Users’ Manual: PBM-4K Series PBM-255-4K  *AutoCad.dwg available upon request PBM-255-4K-O  *AutoCad.dwg available upon request Page 41 of 43...
  • Page 42 Users’ Manual: PBM-4K Series PBM-265-4K  *AutoCad.dwg available upon request PBM-286-4K  *AutoCad.dwg available on request Page 42 of 43...
  • Page 43 www.plurainc.com U.S.A. Germany U.A.E. S.Korea...
