- Page 1 Operating Instructions PBM-224-4K-H PBM-221-4K-H PBM-210-4K-H PBM-217-4K-H PBM-4K-H "COMPREHENSIVE AND AFFORDABLE 4K/UHD" Series PBM-209-4K-H PBM-210-4K-H PBM-217-4K-H PBM-221-4K-H PBM-224-4K-H PBM-232-4K-H PBM-247-4K-H PBM-255-4K-H Re-imagine Beyond Technology sales@plurainc.com...
-
Page 2: Table Of Contents
Operating Instructions PBM-4K-H SERIES Table of Contents PRECAUTION ------------------------------------------------------------------------------------------------------------- 5 OVERVIEW----------------------------------------------------------------------------------------------------------- 8 ADVANCED FEATURES --------------------------------------------------------------------------------------------- 8 FUNCTIONAL EXPLANATION OF EACH PART-------------------------------------------------------------------- 9 -------------------------------------------------------------------------------------------------------- 9 RONT ANEL PBM-224-4K-H -------------------------------------------------------------------------------------------------- 9 Front Keys Arrangements -------------------------------------------------------------------------------------- 9 Front Keys Operations ----------------------------------------------------------------------------------------- 10 ... - Page 3 Operating Instructions PBM-4K-H SERIES -------------------------------------------------------------------------------------- 16 OLOR EMPERATURE ONTROL --------------------------------------------------------------------------------------------------------------- 16 ------------------------------------------------------------------------------------------------------ 16 SPECT ATIO ------------------------------------------------------------------------------------------------- 17 ----------------------------------------------------------------------------------------------------- 17 EAKING ILTER ------------------------------------------------------------------------------------------------------- 17 ALSE OLOR HDR M -------------------------------------------------------------------------------------------------------- 18 ------------------------------------------------------------------------------------------------------- 18 AMERA AUDIO MENU OPTIONS ------------------------------------------------------------------------------------------18 SDI / SFP O ------------------------------------------------------------------------------------------------- 18 UTPUT ------------------------------------------------------------------------------------------------------- 19...
- Page 4 Operating Instructions PBM-4K-H SERIES Config LAN2/Ember+------------------------------------------------------------------------------------------ 26 Protocol Setting------------------------------------------------------------------------------------------------ 26 Set ID ----------------------------------------------------------------------------------------------------------- 26 Fan Control----------------------------------------------------------------------------------------------------- 27 ---------------------------------------------------------------------------- 27 APTION ORTH MERICAN ARKET ----------------------------------------------------------------------------------------------------- 27 UTPUT ANGE ------------------------------------------------------------------------------------------------------- 28 IDEO ANGE --------------------------------------------------------------------------------------------------------- 28 AVEFORM 13. OSD TREE -----------------------------------------------------------------------------------------------------------29 -------------------------------------------------------------------------------------------------------------- 30 IDEO -------------------------------------------------------------------------------------------------------------- 31...
-
Page 5: Precaution
Operating Instructions PBM-4K-H SERIES • PRECAUTION Before operating this unit, please read this manual carefully. WARNING: To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable parts inside. Refer any service matters to qualified service personnel. - Page 6 This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.
- Page 7 Operating Instructions PBM-4K-H SERIES If the product exhibits a distinct change in performance. 17. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition and the warranty seal is provided 18.
-
Page 8: Overview
4K monitor series. The PBM-4K-H series is available in multiple sizes from 10 up to 55 inches, the Plura PBM-4K-H series bring the exceptional built-in feature set Plura monitors are known for, maintaining quality and performance to give production facilities an edge in Ultra HD monitoring. -
Page 9: Functional Explanation Of Each Part

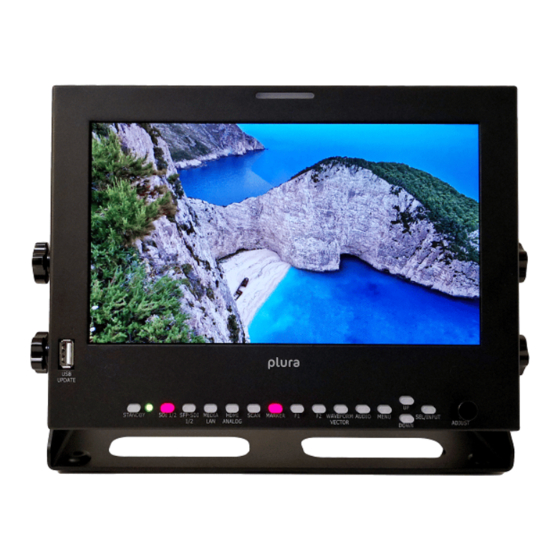

Operating Instructions PBM-4K-H SERIES 3. Functional explanation of each part 1. Front Panel PBM-224-4K-H Tally LED Headphone Speaker Front Key Front Keys Arrangements Re-imagine Beyond Technology sales@plurainc.com... -
Page 10: Front Keys Operations
Operating Instructions PBM-4K-H SERIES Front Keys Operations Key Name Operation ► Power ON/OFF Button. STANDBY ► Select SDI 1. SDI 1 SDI 2 ► Select SDI 2. ► Select HDMI. HDMI ► Select SFP1, SFP2. COMPONENT ► Select COMPONENT. ►... -
Page 11: Rear Panel
Operating Instructions PBM-4K-H SERIES 2. Rear Panel Connection Details DC Battery IN PIN NO Description 2 , 3 DC IN 12V DC IN 12V for PBM-210-4K-H, PBM-217- 4K-H, PBM-221-4K-H & PBM-224-4K-H RJ-45 – GPI, Control LAN 1 & Control LAN 2 (Ember+) ... -
Page 12: Interface Description
Operating Instructions PBM-4K-H SERIES Control Terminal: 1 ~ 7 Pin Contact Point Switch GND Terminal: 8 Pin of RJ-45 Interface description Interface Description SDI 1 IN 12G/3G/HD/SD SDI SDI 1 OUT SDI 2 IN 3G/HD/SD SDI SDI 2 OUT SFP Module x 1(SFP1/SFP2 3G Input) HDMI High Definition Multimedia Input... -
Page 13: To Go Back To The Previous Level
Operating Instructions Operating Instructions PBM-4K-H SERIES PBM-4K-H SERIES 3. To go back to the previous level Press MENU button 4. Typical Menu Operation 1. Press MENU button: The main menu will appear. 2. Use UP/DOWN button to select the desired menu option (icon). 3. -
Page 14: On Screen Menus Selection And Adjustment
Operating Instructions Operating Instructions PBM-4K-H SERIES PBM-4K-H SERIES 6. On Screen Menus Selection and Adjustment 1. How to adjust the OSD screen 1. Press the MENU button and then UP/DOWN button to select each menu. button and then use UP/DOWN (SEL/INPUT)/MENU button to display the available 2. -
Page 15: Select Video Input
Operating Instructions Operating Instructions PBM-4K-H SERIES PBM-4K-H SERIES 7. SELECT VIDEO INPUT 1. How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the required video source. 2. Press the SET/INPUT button to go to select the desired video source. 3. -
Page 16: Adjust
Operating Instructions Operating Instructions PBM-4K-H SERIES PBM-4K-H SERIES 1. Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 2. Color Temperature Control - For Setting the Color temperature or adjusting RGB gain value - User (User setting RGB gain value), VAR(3200K ~ 9300K), Often used value( 9300K, 6500K, 5400K,3200K) and 3D LUT Calibration value(D-Cinema 6302K) - Color Space: Native/BT.709/D-Cinema... -
Page 17: Mono/Blue Only
Operating Instructions Operating Instructions PBM-4K-H SERIES PBM-4K-H SERIES 5. Mono/Blue Only - Mono color: For selecting monochrome images. - Blue Only: Blue Video channel is enabled 6. Peaking Filter -Peaking Filter: Peaking Filter On/Off. -Peaking Color: Red/Blue/White/Violet. -Peaking Level: 0~100. 7. -
Page 18: Hdr Mode
Operating Instructions PBM-4K-H SERIES 8. HDR Mode - ST 2084-300 / ST 2084-1000 / ST 2084-10000 / HLG 9. Camera Log - Off, SLog3 To LC-709,Slog3 To LC-709TypeA, Slog3 To Slog2-709, Slog3 To Cine+709, Slog2 To LC-709, Slog To LC-709TypeA, Slog2 To Slog2-709, Slog2 To Cine+709, User - Import User Log: User may import a custom log LUT from a USB memory stick to the monitor. -
Page 19: Level Meter
Operating Instructions PBM-4K-H SERIES - Select primary or secondary audio group to extract. (Group 1~4) - Audio output channel source select. (Channel1~4, Channel1/2, Channel3/4, off) 2. Level Meter - Display the audio level meter on screen in SDI input. -Pair: Respectively By Audio Pair (L&R) display -Group: Respectively By Audio Group display - Level Meter Scale mode selects. -
Page 20: Volume
Operating Instructions PBM-4K-H SERIES 3. Volume - Adjust the speaker or headphone Volume level. (0~32) 10. Marker MENU OPTIONS Re-imagine Beyond Technology sales@plurainc.com... -
Page 21: Marker & User Marker
Operating Instructions PBM-4K-H SERIES 1. Marker & User Marker - Marker: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 (Customized markers). - User Marker: The user defined Marker size setting. 2. Safety Area -Safety Area: Draw dotted line Marker screen. -
Page 22: Preset 1 & Preset
Operating Instructions PBM-4K-H SERIES 6. Preset1 & Preset2 - Markers can be set as preset 1 & 2 and be triggered by GPI controller. - GPI preset markers can only be utilized by GPI controller 11. GPI MENU OPTIONS 1. GPI Control & GPI# - For programming selected functions to particular GPI ports. -
Page 23: Setup Menu Options
Operating Instructions PBM-4K-H SERIES 12. SETUP MENU OPTIONS 1. Factory Default - Factory: User Reset. - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. 2. Function 1 ~6 - Function 1~6: Select the required function to be allocated to the FUNCTION Keys 1, 2, 3, 4, 5, 6. -
Page 24: On Screen Display
Operating Instructions PBM-4K-H SERIES Marker size Select Marker size Safety Marker size Select Safety Marker size Marker Prese1/2 Marker Preset 1/2 on/off Waveform Waveform on/off Peaking Peaking on/off False Color False Color on/off UMD on/off Caption Caption on/off HDR on/off Time Code Time Code on/off 3. -
Page 25: Under Monitor Display (Color: Tally R/G Mode Action )
Operating Instructions PBM-4K-H SERIES Under Monitor Display (color: Tally R/G mode action ) Channel-12 Channel-12 Channel-12 Tally Red Tally Green UMD: UMD display on/off UMD Character: UMD Character Select UMD Position: UMD display positions select (L-T, C-T, R-T, L-B, C-B, R-B) ... -
Page 26: Screen Control
- Internal Pattern Auto Run, White, RED, Green, Blue, Yellow, Cyan, Magenta Config LAN1 -Plura System Controller (PSC-400) Network setting. DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply” to confirm all settings were applied. Config LAN2/Ember+ ... -
Page 27: Fan Control
Operating Instructions PBM-4K-H SERIES Fan Control Fan Control: Internal Fan Control option based on temperature sensor Auto / force on / force off Fan Active Temperature: Adjusts fan based on temperature in Celsius degree. ONLY applicable when the Fan Control setting is set to Auto. -
Page 28: Video Range
Operating Instructions PBM-4K-H SERIES 7. Video Range -Range Check: on/off. -Y Max: Maximum luminance level. -Y Min: Minimum luminance level. -C Max: Maximum chroma level. -C Min: Minimum chroma level. -Color: Black/Blue/Red/Green -Grid: Grid line on/off -Blink: Y/C Min-Max to blink. (0~7) 8. -
Page 29: Osd Tree
Operating Instructions PBM-4K-H SERIES • OSD TREE Re-imagine Beyond Technology sales@plurainc.com... -
Page 30: Video
Operating Instructions PBM-4K-H SERIES 1. Video Re-imagine Beyond Technology sales@plurainc.com... -
Page 31: Audio
Operating Instructions Operating Instructions PBM-4K-H SERIES PBM-4K-H SERIES 2. Audio Re-imagine Beyond Technology sales@plurainc.com... -
Page 32: Marker
Operating Instructions PBM-4K-H SERIES 3. Marker Re-imagine Beyond Technology sales@plurainc.com... -
Page 33: Gpi
Operating Instructions PBM-4K-H SERIES 4. GPI Re-imagine Beyond Technology sales@plurainc.com... -
Page 34: Setup
Operating Instructions PBM-4K-H SERIES 5. Setup Re-imagine Beyond Technology sales@plurainc.com... - Page 35 Operating Instructions PBM-4K-H SERIES Contact Us U.S.A. Corporate Offices: Plura Broadcast, Inc. Ph: +1-602-944-1044 Sales@plurainc.com GERMANY Plura Europe GmbH Ph: +49-6725-918006-70 Sales@plurainc.com U.A.E. Plura MEA Ph: +971-50-715-9625 Sales@plurainc.com S. KOREA Plura Asia Ph: +82-10-6688-8826 Sales@plurainc.com Re-imagine Beyond Technology sales@plurainc.com...
