Summary of Contents for Proceq RQ8000
- Page 1 RQ8000 Paper Roll Quality Tester Technical Manual...
- Page 2 Switzerland Classification: Manual Revision History Comments Date Author Sep 27, 2020 PEGG Initial document Oct 1. 2020 DBUR Corrections Oct 07 2020. DBUR Corrections and images 1.01 Oct 20 2020. DBUR Corrections and images 27/10/2020 © Copyright 2020, PROCEQ SA...
-
Page 3: Table Of Contents
Using the barcode button to create a new roll tag from scratch ....... 6 4.1.4 Measurement ......................6 Measurement Speed ....................6 RQ8000 Calibration Sample (optional) ..............7 Software Overview and Usage ................... 8 File Management ....................... 8 Analysis Software ...................... 9 5.2.1... - Page 4 Illustrations, descriptions as well as the technical specifications conform to the instruction manual at hand at the time of publishing or printing. However, Proceq SA policy is one of continuous product development. All changes resulting from technical progress, modified construction or similar are reserved without obligation for Proceq to update.
-
Page 5: Introduction

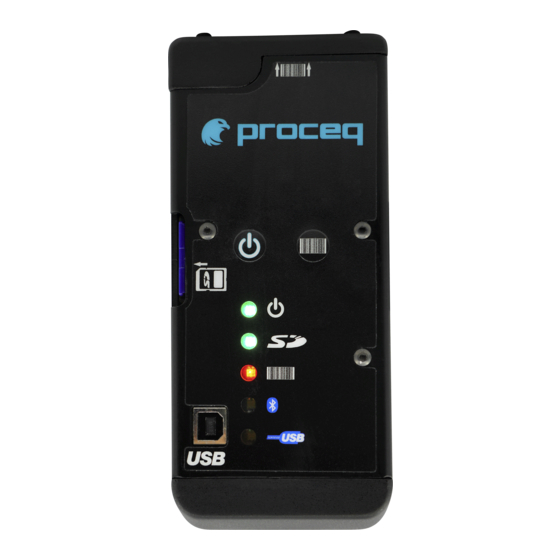

This hand-held measurement device includes hardness measuring unit and distance encoder. Paper reels with non-uniform hardness profile may cause problems when printed or converted. RQ8000 is the fastest and the most accurate system to detect reels that need to be excluded in printing or converting processes. -
Page 6: System Parts
2 System Parts 2.1 RQ8000 measurement system Each RS8000 Roll Quality Measurement system comes with a sturdy padded carrying case containing: 27. October 2020 © Copyright 2020, PROCEQ SA... - Page 7 Battery charger + power cord Car power adapter SD Card USB cable type A-B USB memory stick with RQ8000 software and drivers Plastic strip Allen key and spare screws RQ8000 – Quick Start Guide in Printed version 27. October 2020...
-
Page 8: Measurement Head Usage
3.2 Batteries and Recharging 3.2.1 Inserting Batteries RQ8000 unit is powered by four rechargeable type “AA” batteries. Only use rechargeable AA batteries due to the unit’s built-in recharging function. Reliable measurement requires that the NiMH batteries are in good condition and that the capacity of the batteries should preferably be 2000mAh or more. -
Page 9: Recharging Batteries
With the batteries removed the real-time clock of the RQ8000 device loses the correct time in 2-4 weeks. If this is the case it is recommended that the RQ8000 is connected to the PC before making a measurement. By doing this the correct time is set and the timestamps of the measured files are correct. -
Page 10: Measurement And Calibration
4.1.1 Turning the power on and off Start up the RQ8000 with a short press of the power button marked with All LEDs are lit for a short period and the device should be ready for measurement with the power LED turned green. -
Page 11: Rq8000 Calibration Sample (Optional)
This will allow the measurement to have more data for accurate border recognition. The displayed calibration profile will be from the first sweep. If you would like to purchase a calibration sample for your RQ8000 unit please contact Proceq for further details. -
Page 12: Software Overview And Usage
USB stick that comes with the RQ8000 unit. 5.1 File Management The RQ8000 installation program registers the roll file types so that they can be manipulated directly from the Windows Explorer. When the RQ8000 software is running double-clicking on a measurement file will analyse the file with the software. -
Page 13: Analysis Software
5.2 Analysis Software The main components of the RQ8000 are the file Builder, Device Control, Main Control, Recent Builds and the View Component window(s). 5.2.1 Builder Builder has an user interface including: Build path control Any changes on path will start build action of the directory ... - Page 14 Recent Builds shows a history and user defined permanent build paths enabling quick browsing of latest measurements. 27. October 2020 © Copyright 2020, PROCEQ SA...
-
Page 15: View Component
Clicking on the Main Control window Settings button opens up the Settings dialog Double-click on the desired setting change or right-click to select if the setting is to be changed on all instances 27. October 2020 © Copyright 2020, PROCEQ SA... - Page 16 Click on the setting and select the value from drop down menu or type in the numeric value Verify the value and click OK or CANCEL 27. October 2020 © Copyright 2020, PROCEQ SA...
- Page 17 The changed value is marked with an asterisk (*) and also the heading has one if any of the settings is changed from the last applied one. Apply the setting with APPLY or OK. If you would like to cancel the setting change(s) at this stage you may click CANCEL 27. October 2020 © Copyright 2020, PROCEQ SA...
-
Page 18: Specifications
Standby time: 5 hours (up to) Charger: external, any standard AA charger can be used internal, with USB connection Physical Dimensions Size: 190x75x105mm (H x W x D) Weight: 1.25kg (incl. batteries) 27. October 2020 © Copyright 2020, PROCEQ SA... - Page 19 1 Fusionopolis Way Unit B, 19th Floor #20-02 Connexis South Tower Five Continent International Mansion, No. 138632 Singapore Zhao Jia Bang Road +65 6382 3966 Shanghai 200032 info-asia@proceq.com +86 21 631 774 79 info-china@proceq.com 27. October 2020 © Copyright 2020, PROCEQ SA...
